Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal

China Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal supplier
Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal supplier Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal supplier

Large Image :  Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-303

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: USD3.18-5.00/cps
Packaging Details: 990 cartons per 20" container
Delivery Time: 3 orking days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Cabinet Lock Working Type: Unlock When Power On
Voltage: 24V Current: 0.5A
Temerature Raise: 65K Max. Materials: Fine Copper Coil / Metal Case
Working Life: 500,000 Times Working Time: Less 1S
Weight:: 0.16kg/pcs Packing: 100cps/carton

Storage usage 24V up towards Electric cabinet lock with 30cm cables and terminal



Model: JS-303



Junson Security cooperating with many of express cabinet company in electric cabinet lock system, like SF express Cabinet system.



Parameter List



Lock Dimension 55L*41W*22H (mm)
Lockpin length 10mm
Stroke: 10mm
Direction of lockpin Up towards
Working Type unlock when power on
Materials: Metal case /  fine copper coils
Voltage 24V DC
Working Current: 0.5A
Consuming power 1.2W
Open time 1S
Continue power on ≦15S
Operation temperature -40℃ -50℃
Operation Humidity 0-80℃
Available All kind of Cabinet
Weight: 0.1kg/pcs
Packing: 100pcs/ carton
Carton size: 32L*22W*16H (cm)





Main Feature:



  1. High-strength steel, and fine copper coils, durable

  2. Small Volume, light weight, Less power consumption, Easy installation

  3. Standby electrify no longer than 15S, to prevent the burn the coil

  4. With small with connector, and 30mm wires, easy to connect to the control board.

  5. Workable with access control, remote control or special access control power.

  6. Metal housing, easy to install in the cabinet door.

  7. The direction of spring bolt can be changed, with left, right and up and down towards.

Dimenssion Drawing:

Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal







Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal

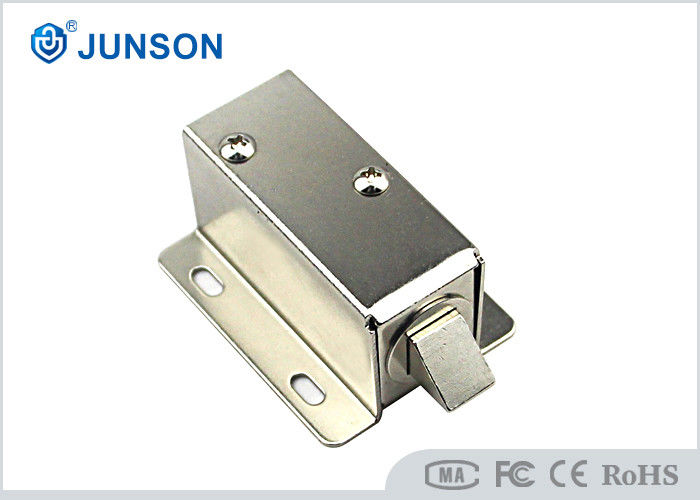

Whole Metal instuacture



     using A grade steels as case materials,

      Electric cabinet lock designed power on momently. with low power consumption design

Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal

Fine Copper coils



    Voltage in 12V DC, 6V DC or 24V DC, as optional

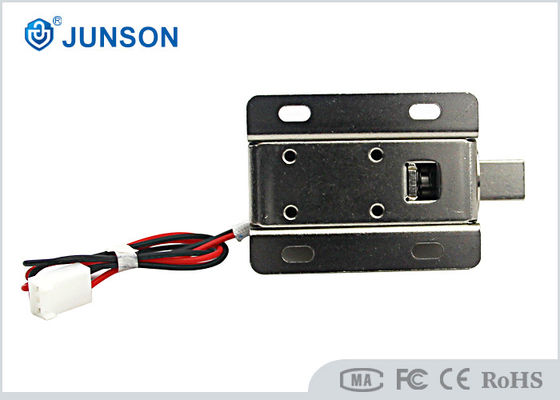

      Long connect cables with terminal, easy to connect with control system.

Storage usage 24V up towards Electronic Cabinet Lock with 30cm cables and terminal

Easy to change the direction of lockpin



    take out the black metal chip under the spring.  the lockpin can be take out and turn around to any directly you like.
