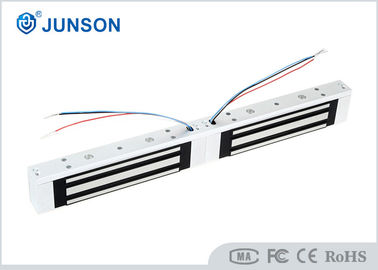

300Lbs Outdoor Electromagnetic Lock Maglock Door Entry System-JS-180DS

300Lbs Outdoor Electromagnetic Lock Maglock Door Entry System-JS-180DS

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC/SGS
Model Number: JS-180DS

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Security Type: Power Off To Open Suitable Humidity: 0~90%(non-condensing)
Product Name: Electromagnetic Lock Armature Plate Finish: Zinc
Current Draw: 12V/310mA 24V/160mA Surface Finishing: Anodized Aluminum
Certificate: CE/ROHS/FCC/SGS Holding Force: 300Lbs X 2
High Light:

door electromagnetic lock

,

fail secure electromagnetic lock

Product Description

300Lbs Outdoor Electromagnetic Lock Maglock Door Entry System-180DS

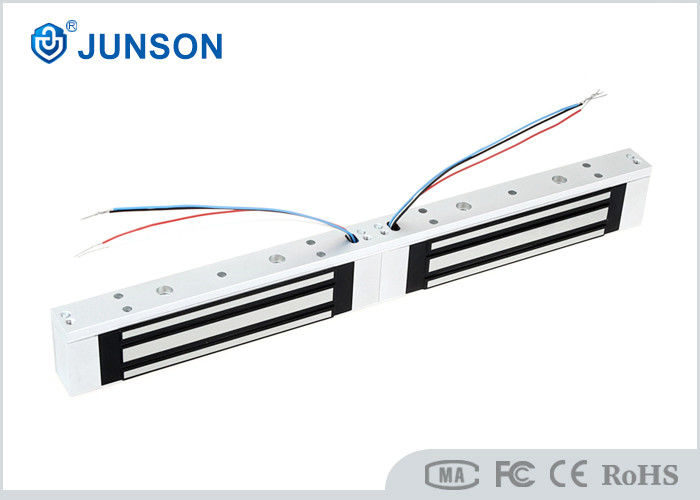

300Lbs Outdoor Electromagnetic Lock Maglock Door Entry System-JS-180DS 0






Specifications of 300Lbs Outdoor Electromagnetic Lock :



Lock Dimension:

340Lx40Wx21H(mm)

Armature plate dimension:

130Lx33Wx12H(mm)

Holding force

300Lbs x 2

Voltage :

12 / 24V  DC

Current :

12V/310mA 24V/160mA

Available bracket

JS-18U, JS-18ZL, JS-18L

Signal output:

Dry Contact

Surface Temp:

 ≦20℃

Operating Temp:

-10℃ - 55℃

Suitable Humidity:

0-90% (non-condensing)

Finishing for lock and Armature

 Zinc

Weight:

2.4kg

Standard Packing:

10pcs

Cartons size:

40L * 28W * 18.2H (cm)



1200Lbs Double Door Magnetic Lock with LED magnetic lock With Lock Sensor -JS-280DS





Descriptions of 300Lbs Outdoor Electromagnetic Lock:



1.   Fail safe, Power to lock

2.   Fine cooper coils, make sure enough holding force at 180kgx2

3.   Dual Voltage 12 or 24 VDC(optional)

4.   The Standard Voltage is 12VDC when Finished

5.   MOV Provides Reverse Current Protection

6.   Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door

7.   Aluminium Anodizing for the plate and housing,A grade Aluninum housing, strong enough for
      installation

8.   Design with no Mechanical Bolt

9.   Increase the holding Force, Dual Insulative Hosing

10. With monitor sensor feedback, can monite the door's status (NO/NC)

11. imported E shape silicon steel materialsFull-automatic electric soldering, to make sure E shape lock
      body smoothly

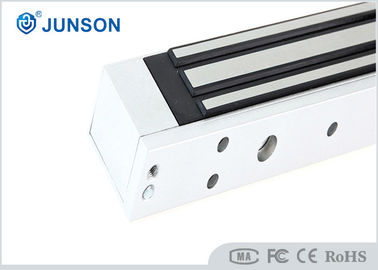

300Lbs Outdoor Electromagnetic Lock Maglock Door Entry System-JS-180DS 2





Junson magnetic locks(Electromagnetic Lock) adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.



Features of Electric Magnetic Locks

  1. High-strength housing with aluminum anodizing finish.
  2. MOV surge protection.
  3. Dual voltages of 12V/24V.
  4. No residual magnetism.
  5. Very easy to operate: Instantly unlocked when power is off.
  6. No mechanical failure.
  7. Fail-safe, satisfy applicable fire regulations.

Advantage of magnetic lock

300Lbs Outdoor Electromagnetic Lock Maglock Door Entry System-JS-180DS 3300Lbs Outdoor Electromagnetic Lock Maglock Door Entry System-JS-180DS 4
