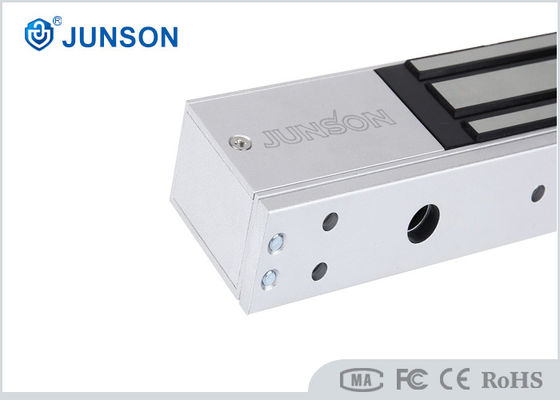

Access Control Gate Single Door Magnetic Lock 600lbs 280kg with LED &Timer-JS280TS

Access Control Gate Single Door Magnetic Lock 600lbs 280kg with LED &Timer-JS280TS

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/SGS/ROHS/FCC
Model Number: JS-280TS

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days once the payment received
Payment Terms: T/T, PayPal or Western Union in advance
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Weight: 2Kg Application: Metal, Glass, Or Wooden Door
Operating Temp: -10~+55 °C (14-131F) Feature: Fail Safe
Power Supply: 12V Or 24V Signal Out: NO, NC, Com
Armature Plate Finish: Zinc Surface Finishing: Anodized Aluminum
High Light:

magnetic security door locks

,

fail secure electromagnetic lock

Product Description



Access Control Gate Single Door Magnetic Lock 600lbs 280kg with LED &Timer-JS280TS 0


Access Control Gate Magnetic Lock 600lbs 280kg with LED &Timer-JS280TS

The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.


Access Control Gate Single Door Magnetic Lock 600lbs 280kg with LED &Timer-JS280TS 0


The features of Single Door Magnetic Lock 600lbs:

LED indicates the door status
Door status sensor (NO/NC/COM)
With delay time 0 to 9 seconds
Safety function: Built-in voltage spike suppressor
High strength material (kasolite steel), anodized aluminum housing
Design with no mechanical bolt
Dual insulated housing
Suitable for wooden, glass, metal and fire-resistant door



Specifications of Single Door Magnetic Lock 600lbs:

Lock Dimension:

250L * 49.5W * 26.5H (mm)

Armature plate dimension:

180L * 38W *13H (mm)

Holding force

280Kg (600lbs)

Voltage :

12 / 24V  DC

Current :

12V / 500mA,   24V / 250mA

Available bracket

JS-28U, JS-28ZL, JS-28L

Signal output:

Dry Contact, NO, NC, Com

Surface Temp:

 ≦20℃

Operating Temp:

-10℃ - 55℃

Suitable Humidity:

0-90% (non-condensing)

Finishing for lock and Armature

 Zinc

Weight:

2kg

Standard Packing:

10pcs

Cartons size:

35L * 29W * 16H (cm)

Access Control Gate Single Door Magnetic Lock 600lbs 280kg with LED &Timer-JS280TS 2

Junson magnetic locks(Electromagnetic lock) adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.

Access Control Gate Single Door Magnetic Lock 600lbs 280kg with LED &Timer-JS280TS 3

FAQ

Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.


Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!


Quality Guarantee:

Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty
 for relative products. On the contrary, JUNSON will charge extra if repair.
 More information, please browse our service center.

We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt,
Electronic lock. Door lock. Access control.
