LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S

China LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S supplier
LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S supplier LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S supplier LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S supplier LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S supplier

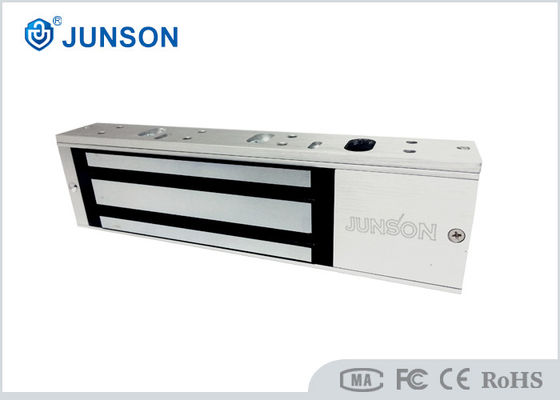

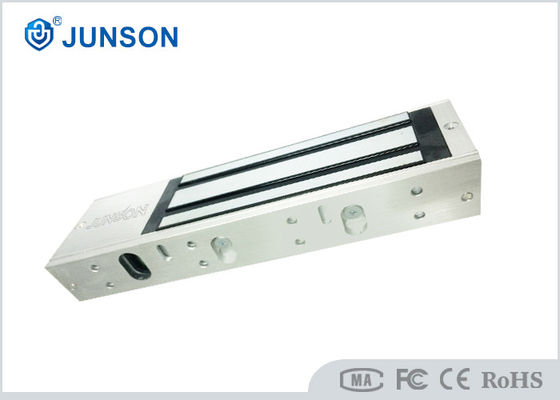

Large Image :  LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/SGS/ROHS/FCC
Model Number: JS-500S

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days once the payment received
Payment Terms: T/T, PayPal or Western Union in advance
Supply Ability: 30,000pcs per month
Contact Now
Detailed Product Description
Product Name: Magnetic Lock Holding Force: 1200lbs / 500kg
Feature: Fail Safe Application: Metal, Glass, Or Wooden Door
Power Supply: 12V Or 24V Signal Out: NO, NC, Com
Finishes For Armature: Zinc Finishes For Magnetic: Zinc



LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door







Model:JS-500S



Description:



1. Fail safe, Power to lock

2. Collinear Load Test 500kg, 1200pounds

3. Dual Voltage 12 or 24 VDC(optional)

4. The Standard Voltage is 12VDC when Finished

5. MOV Provides Reverse Current Protection

6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door

7. LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)

8. High Strength Material(kasolite steel), Anodized Aluminum Housing

9. Design with no Mechanical Bolt

10. Increase the holding Force, Dual Insulative Hosing



LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S



Specifications:



Lock Dimension:

265L * 75W * 38.8H (mm)

Armature plate dimension:

185L * 60W *13 H (mm)

Holding force

500Kg (1200lbs)

Voltage :

12 / 24V  DC

Current :

12V / 500mA,   24V / 250mA

Available bracket

JS-500U, JS-500ZL, JS-500L

Signal output:

Dry Contact, NO, NC, Com

Surface Temp:

 ≦20℃

Operating Temp:

-10℃ - 55℃

Suitable Humidity:

0-90% (non-condensing)

Finishing for lock and Armature

 Zinc

Weight:

4.5kg

Standard Packing:

4pcs

Cartons size:

30L * 20W * 16H (cm)



LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S

Product mounting bracket



180 Degree Opening Commercial Magnetic Door Locks Embeded in The Door EM Lock





The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.





Advantage of magnetic lock

LED Electric Security Outdoor Magnetic Lock 1200lbs Single Door-JS-500S



FAQ



Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.



Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference



Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.



Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!



Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!





Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty

 for relative products.

On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.



We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt,

Electronic lock. Door lock. Access control.
