Logistic Magnetic Cabinet Locks Electronic Control 26mm Lockpin Size Black Color
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/FCC |
| Model Number: | JS-305 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD3.97-5.00 / pcs |
| Packaging Details: | Carton size: 35L*35W*15H (cm) |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 25,000pcs per month |
|
Detail Information |
|||
| Product Name: | Cabinet Lock | Lock Deminssion: | 80L*59W*13H (mm) |
|---|---|---|---|
| Lockpin Size: | 26mm | Voltage: | 12V |
| Current: | 1A | Color: | Black |
| Working Type: | Fail Secure | IR Distance: | 30meters |
| Temperature Rise: | 45K | Packing: | 100pcs / Cartons |
| High Light: | magnetic cabinet locks,keypad cabinet lock |
||
Product Description

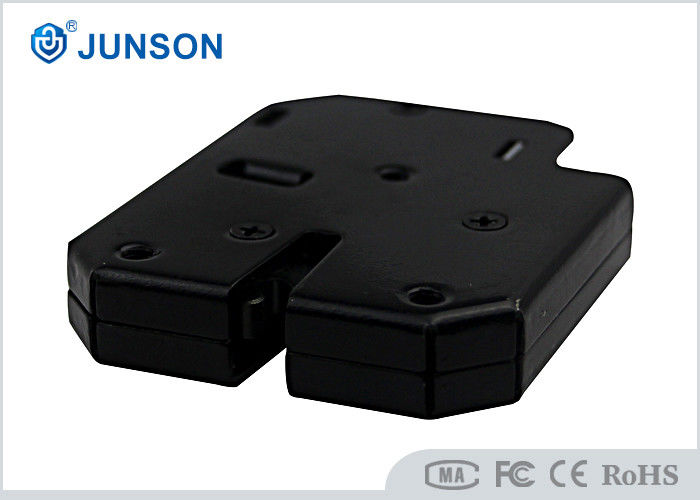

Electric logistic locker lock,Electronic control magnetic cabinet Locks
Model: JS-305
Junson' Electric cabinet lock are also available for window, doors, storage cabinet system, intelligent mailbox system, express cabinet system.
Parameter List
| Lock Dimension | 80L*60W*13H (mm) |
| Lockpin length | 26mm |
| Working Type | Fail secure / locked when power off |
| Materials: | Steel housing / fine copper coils |
| Signal out | NO/COM for JS-305S |
| Working Current: | 1A / 0.5A |
| Consuming power | 1.2W |
| Voltage | 12V / 24V DC (customized ) |
| Open time | 1S |
| Continue power on | ≦10S |
| Operation temperature | -40℃ -50℃ |
| Operation Humidity | 0-80℃ |
| Available | All kind of Cabinet |
| Weight: | 0.1kg/pcs |
| Carton size: | 35L*35W*15H (cm) |
| Packing: | 100pcs/ carton |
Lock Size Drawing
Main Feature Advantage:
-
Metal housing, easy to install in the cabinet door.
-
Available for any kind of cabinet, file box.
-
Small Volume, light weight, Less power consumption, Easy installation
-
With small with connector, and 20mm wires, easy to connect to the control board.
-
Continues electrify no longer than 10S, to prevent the burn the coil
-
Workable with access control, remote control or special access control power.
-
High-strength steel, and fine copper coils, durable
-
With Emergency open switch hidden, can open by hand in emergency condition
-
Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
-
Safety, bolt’s holding force at 150kg
Field installation Show
Why Choose JUNSON:
Junson Company are specail in intelligent lock over thirteen years, have professonal R&D term and aftersale term. will offer whole professional service from pre-sale to after-sale.
Junson promiss to ship cargos within 3-7 days upon receipt the payment
Junson accept payment by paypal, western union, TT, LC, even D/P, Various payment methods meet your different needs.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,
