Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power

China Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power supplier
Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power supplier Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power supplier Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power supplier

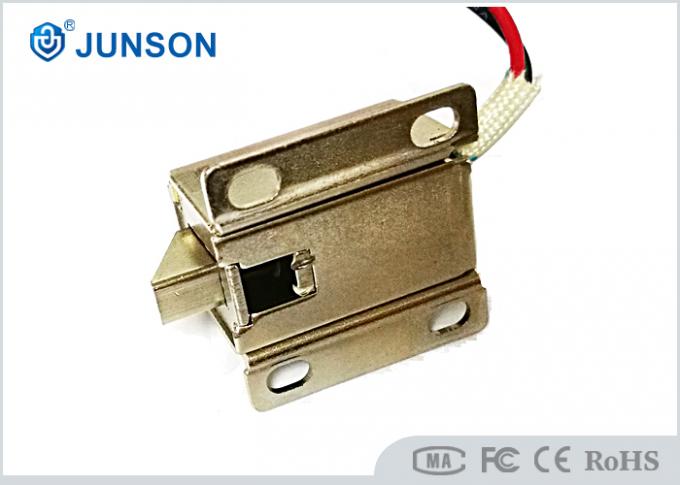

Large Image :  Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-306

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: US$2.39-5.00/cps
Packaging Details: 100pcs/carton
Delivery Time: 2-5 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 5,0000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Solenoid Lock Working Type: Unlock When Power On
Lock Size:: 27*29*18mm Direction Of Lock Pin: UP Towards
Voltage: 12V DC Current: 0.4A
Color: Silver Operation Temperature: -5-50 Degree
Weight:: 0.05kg / Cps Carton Size: 32L*22W*16H (cm)


Smallest Electric cabinet lock, solenoid lock for any kind of locker, lower power

Model: JS-306

Junson's smallest electric cabinet lock was specail design for small locker, auto kitchan cabinet . this lock was selled in Switzerland and Germany.

Specifications:


Lock Dimension27*29*18mm
Lockpin length5mm
Working TypeFail secure / locked when power off
Materials:Steel housing / fine copper coils
Voltage12V DC
Working Current:0.4A
Consuming power4.8W
DC Resistance28Ω±10% at 20℃
Duty cycleElectrify 25%
Open time1S
Continue power on≦15S
Operation temperature-5℃ -55℃
Operation Humidity5-85℃
AvailableAll kind of Cabinet
Weight:0.05kg/pcs
Packing:100pcs/ carton
Carton size:32L*22W*16H (cm)


Main Feature:


Electronic characteristicsForceStroke 0mm ≥300gf (incipient value)
Stroke 5mm ≥80gf (incipient value)
Residual magnetismafter DC12V applied shall be return at weight of Iron rod 5gf (perpendicular direction)
Insulation resistanceBetween coil and frame DC500V normal temperature /humidity,100MΩ
Withstand voltageBetween coil and frame AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA
Temperature riseAfter DC12V applied by resistance method 65 deg Max
LifeRepetitious operation for 0.5 million cycle (continuous at DC12V)
Lead-wire strengthadding 0.5kgf (random direction) not chip off

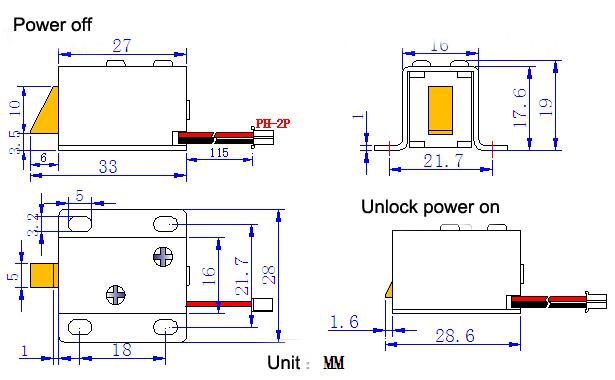

Lock deminsion drawing:

Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power
Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power


Quality Guarantee:

Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years
warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,
please browse our service center.

We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock. Door lock. Access control.
