Solenoids type Electric cabinet lock with Dual feedback sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | FC CE ROHS |
| Model Number: | JS-3088-B2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 5-7USD |
| Packaging Details: | 32L*22W*16H (cm) |
| Delivery Time: | 3-5 days |
| Payment Terms: | 100% prepaid |
| Supply Ability: | stock |
|
Detail Information |
|||
| Material: | Steel Housing / Fine Copper Coils | Color: | Silver |
|---|---|---|---|
| High Light: | dual feedback sensor electric cabinet lock,solenoids electric cabinet lock |
||
Product Description
Product Description:
Solenoids type electric cabinet lock is normal electric cabinet lock for auto-vending, storage locker, logistical cabinet, file lockers and so on. JS-3088 is new design to solve deactivating problem of microswitch. And have Dual feedback, one for lock sensor, another for door status feedback.

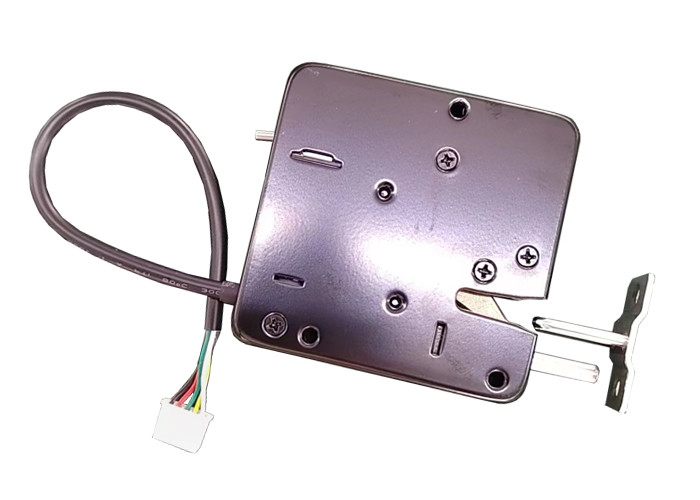

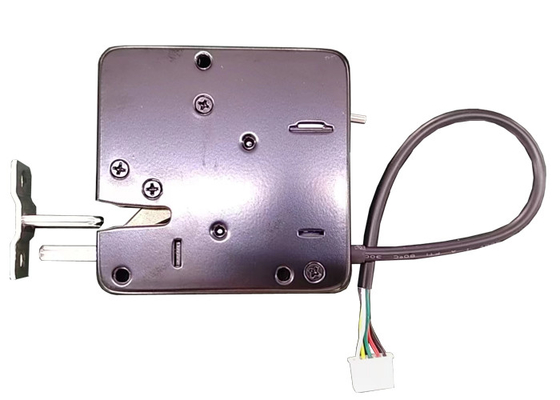

Real Picture of Lock:
Parameter List:
| Lock Dimension | 80*78.5*14mm |
| Working Type | Fail secure / locked when power off |
| Materials: | Steel housing / fine copper coils |
| Voltage | 12V DC±15% |
| Working Current: | 2A |
| Power Rating: | 24W |
| Rated Resistance: | 6Ω |
| Sensor: | NC or NO optional , Dual Sensor, |
| Working cycle | 5% intermittent electricity |
| Insulation Grade | Class F 155℃ |
| Anti door push force F | Lock worked well when F is 200N at 12VDC |
| Insulation Resistance | 50MΩ/DC500V |
| Open door push force | 150Kg |
| Energy conservation | Max1S power time |
| Life | 150,000 time testing |
| Operation temperature | -40℃ -65℃ |
| Operation Humidity | 5-90% RH |
| Salt Spray test | 48H , According with GB/T2423.17-2008 |
| Available | All kind of Cabinet |
| Weight: | 0.18kg/pcs |
| Packing: | 100pcs/ carton |
| Carton size: | 32L*22W*16H (cm) |
Mechanical environmental adaptability:
1. Vibration Experiment: According with IEC60721-3-2-199 standard
2. Holding force testing: when hook and locker door’s pull force over 500N, door will not open and lock work well.
3. Anti-Knock, Regular knocking on the door of the cabinet, the door will not open.
4. Anti-deactivating, the Microswitch will not deactivating before lock is closed.
5. Drop strength of lock: 1 meter height, concrete floor, free fall in any direction, lock will not be damaged
6. Cable and Terminal Strength: Wire and terminal core, terminal core and plastic shell connection strength ≥ 1.5kgf pull for 1 minute, no falling off, damage and poor conduction
7. Low-energy Power, No power to lock door, open at instant electricity.
8. Dual Sensor feedback , With Lock sensor and door sensor, can monitor lock status and door status.
9. NO - False locked , special design with stability structure, no false close status caused.
Drawing of Lock:
Feedback Sensor and Connector Details:
Lock Statue:
