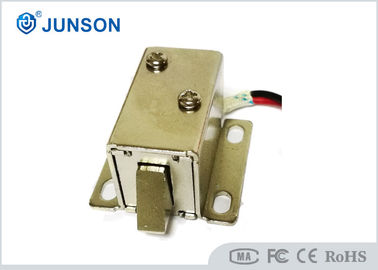

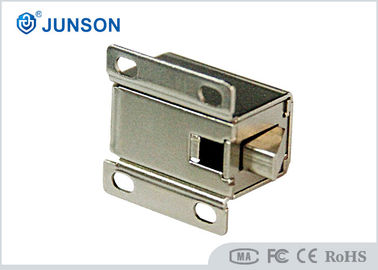

12V DC Electric Cabinet Lock Silver Color For Electronic Solenoid Lock Door

China 12V DC Electric Cabinet Lock Silver Color For Electronic Solenoid Lock Door supplier
12V DC Electric Cabinet Lock Silver Color For Electronic Solenoid Lock Door supplier 12V DC Electric Cabinet Lock Silver Color For Electronic Solenoid Lock Door supplier

Large Image :  12V DC Electric Cabinet Lock Silver Color For Electronic Solenoid Lock Door

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-306

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: US$2.39-5.00/cps
Packaging Details: 100pcs/carton
Delivery Time: 2-5 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 5,0000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Solenoid Lock Working Type: Unlock When Power On
Lock Size:: 27*29*18mm Direction Of Lock Pin: UP Towards
Voltage: 12V DC Current: 0.4A
Color: Silver Operation Temperature: -5-50 Degree
Weight:: 0.05kg / Cps Carton Size: 32L*22W*16H (cm)


Best Selling High quality 12V cabinet lock for Electronic Solenoid Lock Door
Model: JS-306

Junson's smallest electric cabinet lock was specail design for small locker, auto kitchan cabinet . this lock was selled in Switzerland and Germany.

Specifications:

Lock Dimension27*29*18mm
Lockpin length5mm
Working TypeFail secure / locked when power off
Materials:Steel housing / fine copper coils
Voltage12V DC
Working Current:0.4A
Consuming power4.8W
DC Resistance28Ω±10% at 20℃
Duty cycleElectrify 25%
Open time1S
Continue power on≦15S
Operation temperature-5℃ -55℃
Operation Humidity5-85℃
AvailableAll kind of Cabinet
Weight:0.05kg/pcs
Packing:100pcs/ carton
Carton size:32L*22W*16H (cm)


Main Feature:


Electronic characteristicsForceStroke 0mm ≥300gf (incipient value)
Stroke 5mm ≥80gf (incipient value)
Residual magnetismafter DC12V applied shall be return at weight of Iron rod 5gf (perpendicular direction)
Insulation resistanceBetween coil and frame DC500V normal temperature /humidity,100MΩ
Withstand voltageBetween coil and frame AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA
Temperature riseAfter DC12V applied by resistance method 65 deg Max
LifeRepetitious operation for 0.5 million cycle (continuous at DC12V)
Lead-wire strengthadding 0.5kgf (random direction) not chip off


Lock deminsion drawing:

12V DC Electric Cabinet Lock Silver Color For Electronic Solenoid Lock Door

Function

1. Fail-secure type:the bolt is locked when the current is off, Low power less heat,longer life, Stable Performance.
2. suit for a variety of cabinet structure, such as file cabinets, supermarkets storage boxes , store counters and so on
3. Professional Design,Simple Installation.

Product Details

JS-306 is suitable for all kinds of boxes, cabinets and other occasions where it should be open frequently. Combine with safe box. cabinet storage etc in demand shopping malls. Instant electrified,safe,durable,energy saving, easy to install.
