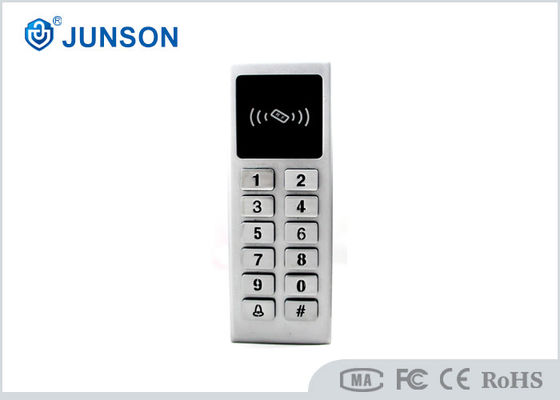

EMID Or Mifare Card RFID Gate Access Control System Electronic

China EMID Or Mifare Card RFID Gate Access Control System Electronic supplier

Large Image :  EMID Or Mifare Card RFID Gate Access Control System Electronic

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC
Model Number: JS-K303E-C

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: T/T, paypal or western Union in advance
Contact Now
Detailed Product Description
Application: Out Door, Rainproof Product Name: Waterproof Metal Keypad
Color: Gold, Silver, Copper Options Card Capacity: 3000user, Up To 50000
Waterproof Rate: IP67 Materials: Zinc Alloy With Palting
Card Type: EM Or Mifare 1 Opening Current:: <=1.5A



EMID Or Mifare Card RFID Gate Access Control System Electronic





This  Metal waterproof standalone access controller is specially designed for the control of the entrances of  buildings , residential districts,factories.Can work outdoor suit  extreme weather . It support four ways to open doors : Proximity card , password , proximity card plus password , force password with alarm signal output . It will provide users with a simple , irect and secure access control system solutions.





Specifications :



Dimension

108*76*20mm

Materials

Zinc alloy housing

Voltage

12V DC

Current



Unlock max current: 1.5A

Static current : 60mA max

User capacity

3000 users ,  up to 50000 users (customize)

Frequency distance

3-6cm

Card type

EM or Mifare one card

Color option

Gold, copper, silver

Surface Temp

 ≦20℃

Operating Temp

-20℃ - 40℃

Suitable Humidity

20-40% (non-condensing)

Open door method

Card, password , card+password

Door relay time

1-99S

Weight

0.45kg

Standard Packing

30pc

Cartons size

54L * 20W * 30.5H (cm





Description :



1 . IP67 and Zinc Alloy material access control

2 . Anti-vanda , waterproof & back-lit metal key buttons, slim , elegant and rugged design ,

3 . Lock control delay , unlock duration, alarm delay;

4 . Third part electric lock , alarm, door sensor , exit button and doorbell for access control interface .

5 . Support wiegand input and output , can work with reader or work with control board as a reader

6 . Simple programming , Easy Operation

7 . Can setting cards via management card or on keypad

8 . Data is protected even after power failure

9 . With back highlight

10 . Work with magnetic lock , electric lock , exit button , door sensor , bell , alarm , slave reader



EMID Or Mifare Card RFID Gate Access Control System Electronic





Quality Guarantee :



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.



We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock. Door lock. Access control.
