Small Cabinet Electromagnetic Lock Fail Safe JS-70S With CE Certification

Good quality Electric Bolt Lock for sales
Good quality Electric Bolt Lock for sales
This is our first meeting in Junson company, Amy and Jeremy are very professional. we will start to develop our new production in coming soon.

—— Mr. Ariel

Very glad for your special supporting on access control system, the productions are in good quality. very nice to see you guys in expro.

—— Mr.Chris

Good team, I'd like to work with your team at a long time, quickly feedback, sepcail solution suggestion.

—— Mr.Florian

I'm Online Chat Now

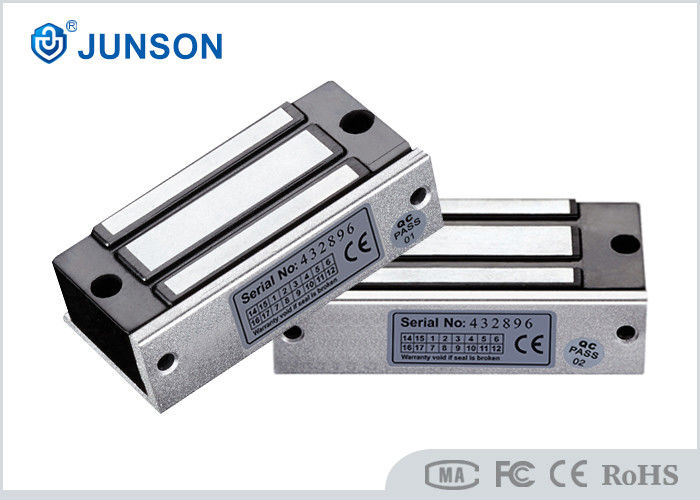

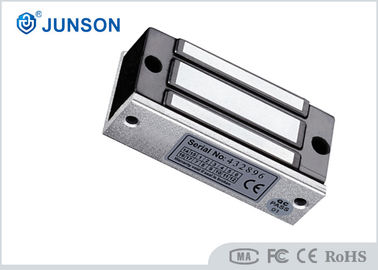

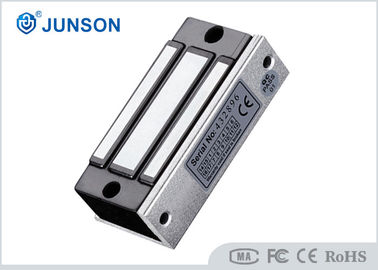

Small Cabinet Electromagnetic Lock Fail Safe JS-70S With CE Certification

China Small Cabinet Electromagnetic Lock Fail Safe JS-70S With CE Certification supplier
Small Cabinet Electromagnetic Lock Fail Safe JS-70S With CE Certification supplier Small Cabinet Electromagnetic Lock Fail Safe JS-70S With CE Certification supplier Small Cabinet Electromagnetic Lock Fail Safe JS-70S With CE Certification supplier

Large Image :  Small Cabinet Electromagnetic Lock Fail Safe JS-70S With CE Certification

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC/SGS
Model Number: JS-70S

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Contact Now
Detailed Product Description
Armature Plate: 75L*33W*9.4H(mm) Materials: Fine Copper Coil + Epoxy
Current Draw: 12V/100mA 24V/200mA Lock Size: 90L*39W*24H(mm)
Application: Cabinet Door Holding Force: 140lbs / 70kg
Signal Output: NO/COM Power Supply: 12V Or 24V
Feature: Fail Safe Suitable Humidity: 0~90%(non-condensing)

CE Certification Fail Safe Small Electromagnetic Lock for Cabinet







Model:JS-70S






Shenzhen Junson Security ­Technology Co. Ltd is engaged in the R&D, production and sales of various famous security systems. We offer magnetic locks, electric locks, electric strikes, electric bolt locks, door locks, electronic locks, lock panic bars, push bar exits and other related items







Specifications:





Lock Dimension:

90Lx39Wx24H(mm)

Armature plate dimension:

70Lx33Wx9.4H(mm)

Holding force

70Kg (140lbs)

Voltage :

12 / 24V  DC(customize)

Current :

12V/100mA  24V/200mA

Finishes for Shell

Anodized aluminum

Signal output:

NO/COM

Surface Temp:

 ≦20℃

Finishes for Magnetic Zinc

Operating Temp:

-10℃ - 55℃

Suitable Humidity:

0-90% (non-condensing)

Finishes for Armature Zinc

Materials

Fine copper coil + Epoxy

Weight:

0.7kg

Standard Packing:

60pcs

Cartons size:

54L * 30W * 20H (cm)





Small Cabinet Electromagnetic Lock Fail Safe JS-70S With CE Certification

  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
  • MA certified products of China / CE certification of EU.
  • Built-in reverse current protection device (MOV).
  • Shell is made of high-strength aluminum alloy, Anodized..







More Details:



1. Fail safe, Power to lock



2. Collinear Load Test 60kg, 100pounds



3. Dual Voltage 12 or 24 VDC(optional)



4. The Standard Voltage is 12VDC when Finished



5. MOV Provides Reverse Current Protection



6. Suitable For file cabinet, display cabinet



7. High Strength Material(kasolite steel), Anodized Aluminum Housing



8. Design with no Mechanical Bolt



9. Increase the holding Force, Dual Insulative Hosing





Series for 280kg EM locks





Model +, - power Lock sensor/LED Timer Door sensor Install hole for lock plate Single or dual door
JS-280 yes NO NO NO Dual hole Single door
JS-280S yes yes NO NO Dual hole Single door
JS-280TS yes yes 0/3/6/9S NO Dual hole Single door
JS-280SG yes yes NO NO Single hole Single door
JS-280SF yes yes 0-15S NO Dual hole /with buzzer Single door
JS-280SLD yes yes No yes Dual hole Single door
JS-280D yes NO NO NO Dual hole double door
JS-280DS yes yes NO NO Dual hole double door
JS-280DTS yes yes 0/3//6/9S NO Dual hole double door



60 Kg 120lbs Mini Magnetic Security Door Locks , Electromagnetic Lock For Showcase











Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.



We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
