5 Wires Fail Secure Electronic Deadbolt Locks / Security Bolt Lock For Access Control Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-160BF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Electric Bolt Lock | Type: | Fail Secure |
|---|---|---|---|
| Power Supply: | 12V | Timer Adjuster: | 0-9S |
| Application: | Metal Or Wooden Door | Time: | 0-9s |
| Signal Out: | N/A | Open Sensor: | Magnet Switch Sensor |
| Highlight: | electric drop bolt lock,magnetic bolt lock |
||
Product Description

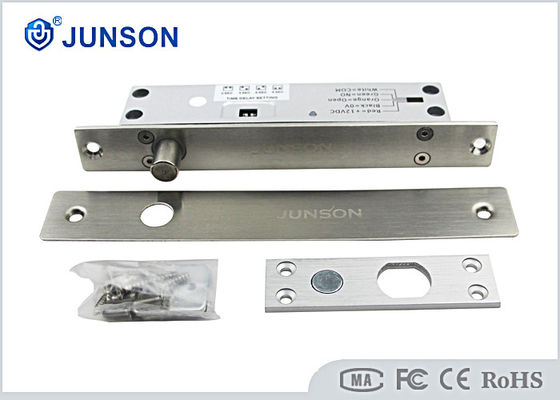

5 Wires Fail Secure Electric deadbolt lock For Access Control Systems
This door lock is special in design with durable material . It can protect your home or business shops . Low operational and standby current . It's especially suitable for glass doors . Great choice for you .
Specifications :
| Fail Secure: | unlock when power off |
| Material size: | Zinc alloy and Stainless steel |
| LED indication | Red to open, Green to lock |
| Magnet bracket: | 192Lx25Wx37H(mm) |
| Lock pin: | 12mmDIA,stainless steel out throw16mm |
| Voltage: | DC12V / 24V (customize ) |
| Current: |
Start: 1.1A Standby: 0.15A |
| Holding force | 1000kg |
| Open wires | Connect with exit button with black wire |
| Solenoid: | Continuous duty |
| Auto relock Timer jumper | adjustable (0/3/6/9S) |
| Surface Temp: | ≦20℃ |
| Induction Distance | 8mm |
| Operating temp: | -10~+25℃(14-131F) |
| Operating Humidity: | 0~90%(non-condensing) |
| Face place material: | 3mm thickness stainless steel |
| Weight: | 1kg |
| Standard Packing: | 20pcs. |
| Carton size: | 45.5Lx29Wx22H(cm) |
Feature
▶Low Temperature, safe & Durable
▶Low Power, Environmental Protection
▶MOV Provides Reverse Current Protection
▶With open wires, can open lock directly by short with black wire
▶With Led indication, red to open, green to lock
▶Request-to-open, Auto-relock if no Action within 5 sec
▶CE Certificate by European Union, MA China Public Security office
Quality Guarantee :
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock.
