Narrow Style LED Low Temperature Fail Safe Electric Bolt Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE |
| Model Number: | JS-192SL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T, PayPal or Western Union in advance |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Model: | JS-192SL | Lock Type: | Fail Safe (Unlock When Power Off) |
|---|---|---|---|
| Lock Body Size: | 132L × 24W × 34H (mm) | Faceplate Size: | 192L × 25W × 3H (mm) |
| Faceplate Material: | 3mm Thickness Stainless Steel | Lock Body Material: | Zinc Alloy & Stainless Steel |
Product Description
Narrow Style LED Low Temperature Fail Safe Electric Bolt Lock
Electric Bolt Lock
Model: JS-192SL
Product Overview
The JS-192SL is a professional-grade fail-safe electric bolt lock engineered for narrow door frames, combining robust security with intelligent access control features. This low-temperature, low-power electric bolt lock is ideal for commercial and residential access control systems.
Specification
| Fail Safe | unlock when power off |
| Lock body size | 132L*24W*34H (mm) |
| Faceplate size | 192L*25W*3H (mm) |
| Material | Zinc alloy and Stainless steel |
| LED indication | Red to open, Green to lock |
| Magnet bracket | 100Lx25Wx5.2H(mm) |
| Lock pin | 12mmDIA,stainless steel out throw16mm |
| Voltage | DC12V / 24V (customize ) |
| Current | Start: 1.1A ; Standby: 0.15A |
| Holding force | 1000kg |
| Open wires | Connect with exit button with black wire |
| Door sensor feedback | No, Com, (Green/white cable) |
| Solenoid | Continuous duty |
| Auto relock Timer jumper | adjustable (0/3/6/9S) |
| Temp rise | ≦10℃ |
| Induction Distance | 8mm |
| Operating temp | -20~+55℃ |
| Operating Humidity | 0~90%(non-condensing) |
| Face place material | 3mm thickness stainless steel |
| Weight | 1kg |
| Standard Packing | 20pcs |
| Carton size | 45.5Lx29Wx22H(cm) |
Key Features
-
Fail-Safe Design — Automatically unlocks when power is cut, ensuring safe egress during emergencies
-
Low Temperature Operation — Safe and durable with temperature rise ≤10°C
-
Low Power Consumption — Energy-efficient with standby current of only 0.15A
-
LED Status Indication — Red LED = Unlocked, Green LED = Locked
-
Auto-Relock Timer — Adjustable delay (0/3/6/9 seconds); auto-relocks if no action within 5 seconds
-
MOV Reverse Current Protection — Built-in protection against reverse polarity damage
-
Direct Open Wire — Orange wire can be shorted with black wire for manual unlocking
-
Door Sensor Feedback — NO/COM dry contact output for door status monitoring
-
Continuous Duty Solenoid — Designed for 24/7 operation

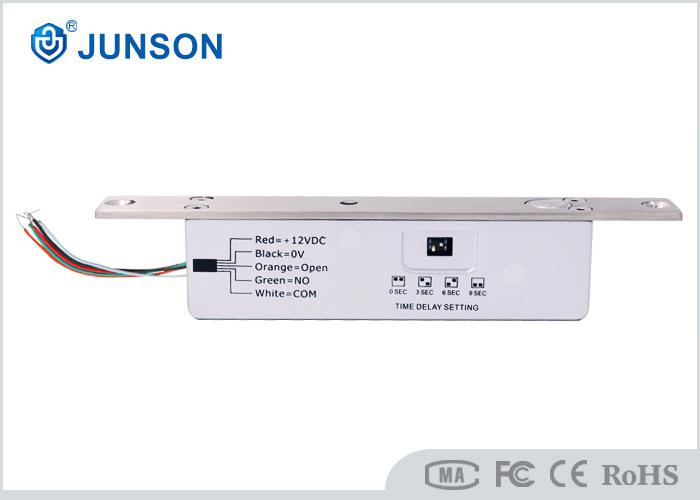

Actual Photo
Recommended Applications
-
Office buildings & commercial spaces
-
Residential apartments & gated communities
-
Server rooms & data centers
-
Financial institutions & banks
-
Government facilities
-
Hospitals & healthcare facilities
-
Warehouses & industrial sites
Installation Notes
-
Ensure the door frame has sufficient depth for the 34mm lock body
-
The faceplate (192mm) requires a narrow frame with minimum width of 25mm
-
Verify power supply capacity: minimum 1.5A at 12VDC for reliable operation
-
Use the magnet bracket to ensure proper 8mm induction distance alignment
-
Configure auto-relock timer before final installation
