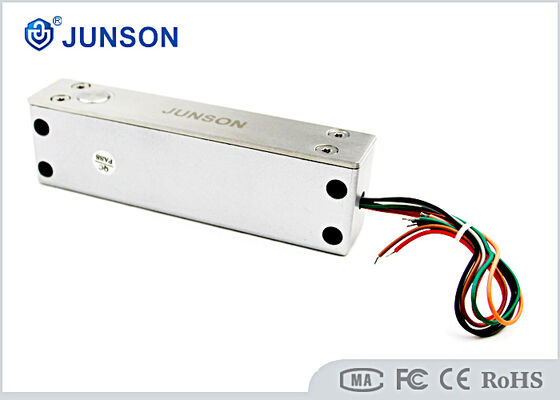

Surface-Mount Electric Bolt Lock with 9-Second Timer and NO/NC/COM Output
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-128A6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T,paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Brand: | JUNSON | Model: | JS-128A6 |
|---|---|---|---|
| Size: | 128L*25W*37H(mm) | Timer Adjuster: | 0/3/6/9S |
| Feature: | Lock When Power On | Voltage: | DC 12V |
| Signal Out: | NO\NC\COM | Open Sensor: | Magnet Switch Sensor |
Product Description
JS-128A6 1000kg Electric Bolt Lock with 9S Timer & NO/NC/COM Output
Product Description
The JS-128A6 Electric Bolt Lock is a high-strength electronic locking solution designed for access control and security applications. Featuring a powerful 1000kg holding force, durable zinc alloy construction, and a 3mm stainless steel faceplate, it provides reliable and long-lasting door security.
The lock features a fail-safe design, automatically unlocking when power is cut, making it suitable for applications where emergency access is required. The adjustable 0/3/6/9-second auto-relock timer allows flexible control of the locking delay, while the NO/NC/COM door sensor output provides real-time door status feedback.
With built-in LED status indicators and support for 12V DC or 24V DC power supply, the JS-128A6 is an ideal choice for integrating with access control systems, exit buttons, RFID readers, and other security devices.
Key Features
- 1000kg High Holding Force for enhanced security
- Fail-Safe Design – unlocks automatically when power is removed

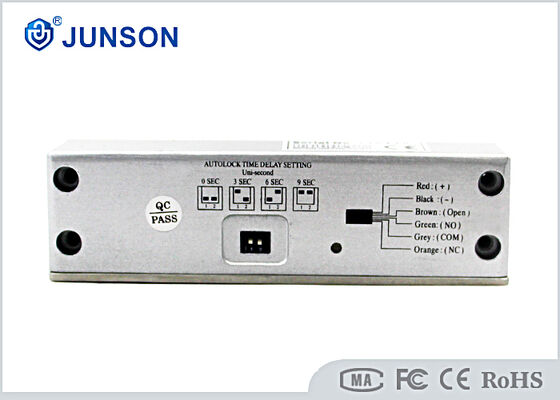

- Adjustable Auto-Relock Timer with 0/3/6/9-second settings
- NO/NC/COM Door Sensor Output for door status monitoring
- Red & Green LED Indicators show lock status clearly
- 12V DC / 24V DC Operation available for flexible installation
- 3mm Stainless Steel Faceplate provides excellent durability
- Zinc Alloy Construction for a strong and reliable lock body
- Continuous-Duty Solenoid supports stable long-term operation
- Stainless Steel Lock Pin with 15mm throw distance
- Direct Unlock Function available through wire connection
- Suitable for integration with various access control systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JS-128A6 |
| Lock Type | Electric Bolt Lock |
| Security Type | Fail Safe |
| Holding Force | 1000kg |
| Material | Zinc Alloy |
| Faceplate Material | 3mm Stainless Steel |
| Bracket Dimensions | 128 × 25 × 37 mm |
| Lock Pin | 12mm Diameter Stainless Steel |
| Lock Pin Throw | 15mm |
| Operating Voltage | DC 12V / 24V (Customized) |
| Start Current | 0.95A |
| Standby Current | 0.12A |
| Solenoid | Continuous Duty |
| Auto-Relock Timer | 0 / 3 / 6 / 9 Seconds |
| Door Sensor Output | NO / NC / COM |
| LED Indicator | Red: Unlock / Green: Lock |
| Operating Temperature | -10°C to +25°C |
| Operating Humidity | 0–90% RH (Non-condensing) |
| Weight | 1.2kg |
| Standard Packing | 20 pcs/carton |
| Carton Size | 45.5 × 29 × 22 cm |
Quality Guarantee
At JUNSON, we are committed to providing reliable, high-quality access control and security products. All products undergo strict quality inspections before shipment to ensure stable performance and consistent quality.
We provide a 2-year warranty for eligible products against manufacturing defects under normal use. Warranty service does not cover damage caused by improper installation, misuse, unauthorized modifications, or other human factors. Repairs outside the warranty coverage may be subject to additional charges.
For more information about our warranty policy and after-sales service, please contact our professional support team.
Our Main Product Range
JUNSON specializes in the development and manufacturing of professional security and access control products, including:
- Electromagnetic Door Locks
- Electric Deadbolt Locks
- Electric Strike Locks
- Electric Bolt Locks
- Electronic Door Locks
- Smart Door Locks
- Access Control Systems
- RFID Card Readers
- Fingerprint Access Controllers
- Exit Push Buttons
- Panic Bars and Exit Devices
Frequently Asked Questions
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T, PayPal, Western Union, and other available payment options. Please contact us for details.
Q: How much does shipping cost to my country?
A: Shipping costs depend on the destination, order quantity, package dimensions, and shipping method. Please send us your delivery address and order quantity, and we will check the available shipping options and provide a quotation.
Q: I am a reseller. Can I get a wholesale price?
A: Yes. We welcome distributors, resellers, system integrators, and project contractors. For bulk orders, please contact us with your required quantity and product models. Our sales team will provide competitive wholesale pricing based on your order volume.
Q: Do you provide OEM and ODM services?
A: Yes. JUNSON provides professional OEM and ODM services, including customized logos, packaging, product appearance, and other solutions according to project requirements.
