Electric Dead Bolt Door Lock / Door Bolt Lock Delay Time
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-160B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, PayPal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Electric Bolt Lock | Type: | Fail Safe |
|---|---|---|---|
| Power Supply: | 12V | Timer Adjuster: | 0-9S |
| Application: | Metal Or Wooden Door | Time: | 0-9s |
| Signal Out: | N/A | Open Sensor: | Magnet Switch Sensor |
| Highlight: | electric deadbolt lock,magnetic bolt lock |
||
Product Description

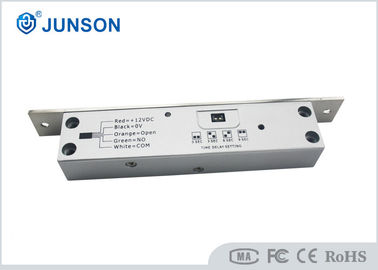

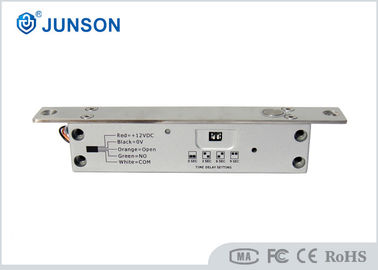

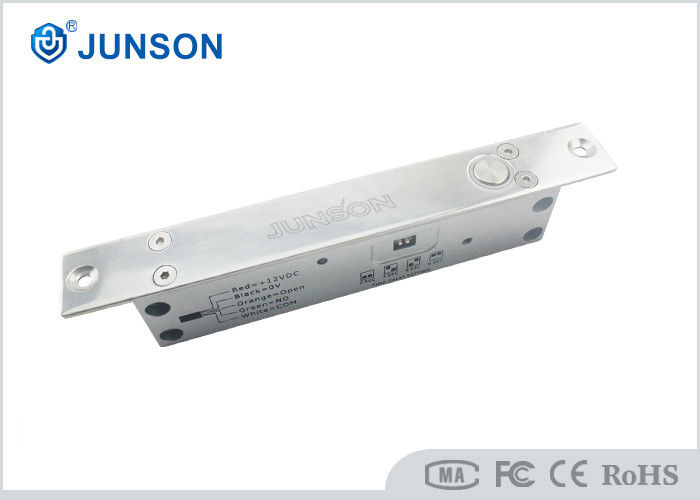

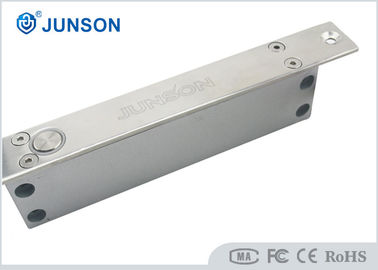

Access Control Electric Dead Bolt Door Lock / Door Bolt Lock Delay Time
This door lock is special in design with durable material. It can protect your home or business shops. Low operational and standby current . It's especially suitable for glass doors. Great choice for you.
Specifications:
|
Face plate dimension |
192Lx25Wx37H(mm) |
|
Bolt diameter |
14mm |
|
Throw out |
12mm |
|
working current |
0.15A |
|
Door sensor |
NO/COM output |
|
Voltage |
12V DC |
|
Starting current |
1.1A |
|
Available bracket |
JS-701D, JS-101D, JS-100D |
|
Auto relock jumper |
Adjustable 0-9s |
|
Induction Distance |
8mm |
|
Surface Temp |
≦10℃, low temperature |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-90% (non-condensing) |
|
Finishing for lock |
High Aluminum, Garrulous Line |
|
Weight |
1.3kg |
|
Standard Packing |
10pcs |
|
Carton's size |
53L * 30W * 14H (cm) |
Description:
1. Fail Safe: unlock when power off
2. Low Temperature, safe & Durable.
3. Low Power, Environmental Protection.
4. Special photo-electricity control, three steps current application.
5. Long Life with 500000 cycles.
6. MOV Provides Reverse Current Protection.
7. Superior Strength Aluminum Alloy, Solid Stainless-Steel Bolt.
8. Double protection for loading current.
9. Certificate: CE
10. Photo-electricity Control, Low Temperature,
A: The Low Current is Changed immediately.
B: When door frame does not coincide with door leaf, door leaf against the bolt, then the
electric bolt will start the low-power function to bring low temperature.
C: Photo-electricity Control Technology, prevent mechanical defects.
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty for relative products. On the contrary, JUNSON will charge extra if repaired. More information, please browse our service center.
We offer many electronic locks, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, electronic lock.
