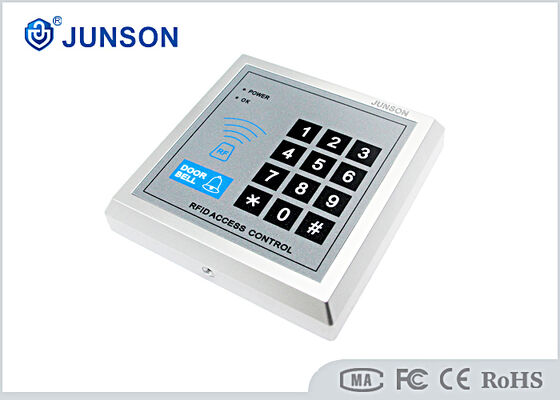

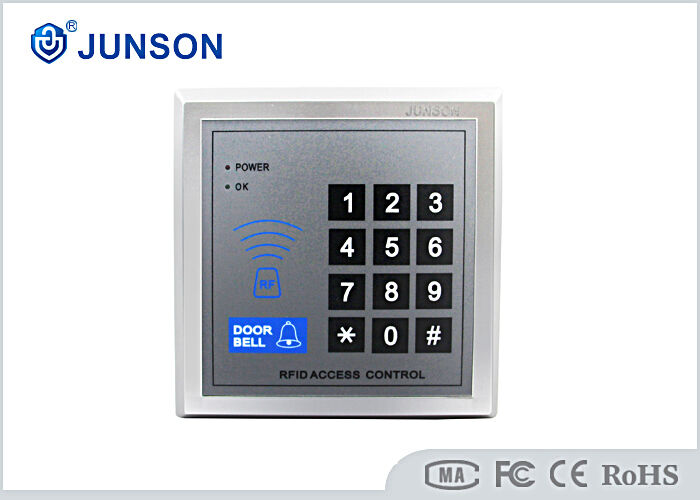

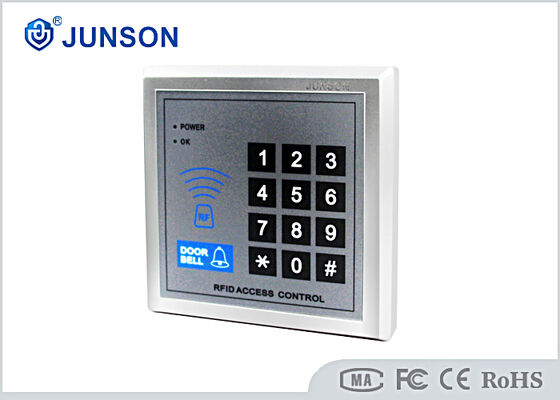

JS-K326 Standalone RFID Access Control Keypad with EM/IC Card Reader
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-K326 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Brand: | JUNSON | Model: | JS-K326 |
|---|---|---|---|
| Dimension: | 117*117*21 Mm | Materials: | Plastic Housing |
| Voltage: | 12V DC | User Capacity: | 1600 Users |
| Highlight: | standalone RFID access control keypad,EM IC card reader access control,RFID keypad with card reader |
||
Product Description
JS-K326 Standalone RFID Access Control Keypad with EM/IC Card Reader
Waterproof RFID Access Controller with Backlit Keypad and Wiegand Support
Product Description
The JS-K326 Standalone RFID Access Control Keypad is a compact and reliable access control solution designed for residential, commercial, and industrial security applications. Supporting both EM and IC cards, PIN code access, and card + password verification, it provides flexible and secure entry management for a wide range of access control systems.
Featuring a slim waterproof plastic housing, illuminated backlit keypad, and built-in door relay control, the JS-K326 is suitable for indoor and outdoor installations. It also supports Wiegand input/output, allowing it to operate as a standalone controller or as a reader integrated with an external access control panel.
Key Features
-
Supports EM Card, IC Card, PIN Code, and Card + Password authentication.
-
Standalone access control with 1,600-user capacity.
-
Waterproof and anti-vandal housing for indoor and outdoor use.
-
Backlit keypad for convenient operation in low-light environments.
-
Wiegand 26 Input/Output supports controller or reader mode.
-
Adjustable door relay time from 1 to 99 seconds.
-
Supports door sensor, exit button, alarm, electric lock, and doorbell connections.
-
User cards can be programmed using a management card or keypad.
-
Power-failure memory protection keeps user data after power loss.
-
Compatible with magnetic locks, electric strikes, electric bolt locks, and alarm systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JS-K326 |
| Dimensions | 117 × 117 × 21 mm |
| Housing Material | Plastic Housing |
| Operating Voltage | DC 12V |
| Unlock Current | Max. 1.5A |
| Standby Current | Max. 60mA |
| User Capacity | 1,600 Users |
| Card Types | EM Card / IC Card |
| Reading Distance | Within 10 cm |
| Access Methods | Card / PIN Code / Card + PIN |
| Door Relay Time | 1–99 Seconds (Adjustable) |
| Operating Temperature | -20°C to 40°C |
| Operating Humidity | 20–40% RH (Non-condensing) |
| Surface Temperature | ≤20°C |
| Color Options | Black / White |
| Weight | 0.14 kg |
| Standard Packing | 70 pcs/carton |
| Carton Size | 54 × 20 × 30.5 cm |
Access Control Functions
The JS-K326 supports multiple security devices and access control peripherals for a complete door entry solution.
| Function | Support |
|---|---|
| Electric Lock Control | ✓ Magnetic Lock / Electric Lock / Electric Strike |
| Exit Button Connection | ✓ Supported |
| Door Sensor Input | ✓ Supported |
| Alarm Output | ✓ Supported |
| Doorbell Connection | ✓ Supported |
| Wiegand Input/Output | ✓ Supported |
| Standalone Controller Mode | ✓ Supported |
| Reader Mode | ✓ Supported |
Application Scenarios
The JS-K326 RFID Access Controller is suitable for a wide range of access control projects:
-
Residential Buildings
-
Apartment Complexes
-
Office Buildings
-
Hotels & Homestays
-
Schools & Universities
-
Warehouses & Factories
-
Retail Stores
-
Smart Community Projects
-
Commercial Access Control Systems
Its waterproof design makes it suitable for both indoor entrances and outdoor gate installations.
Why Choose JUNSON Security?
JUNSON has specialized in access control and electronic locking solutions for over 20 years, providing reliable security products to customers in more than 60 countries worldwide.
Our advantages include:
-
Professional OEM & ODM Manufacturer.
-
Strict Quality Inspection Before Shipment.
-
CE, FCC, and RoHS Certified Products.
-
Stable Performance and Long Service Life.
-
Fast Sample and Bulk Order Delivery.
-
Technical Support and After-Sales Service.
-
Customized Logo, Packaging, Firmware, and User Manual.
FAQ:
Q: What types of cards does the JS-K326 support?
A: The JS-K326 supports both 125KHz EM cards and IC cards, providing flexible authentication options.
Q: How many users can be stored?
A: The controller supports up to 1,600 users.
Q: Can it work with an external access control panel?
A: Yes. The JS-K326 supports Wiegand input and output, allowing it to function as either a standalone controller or an external reader.
Q: Can I connect a magnetic lock and exit button?
A: Yes. It supports magnetic locks, electric locks, electric strikes, exit buttons, door sensors, alarms, and doorbells.
Q: Will user data be lost after a power failure?
A: No. The controller includes power-failure memory protection, so user data remains stored even after power is disconnected.
Q: Do you provide OEM and customized services?
A: Yes. JUNSON offers OEM & ODM services including logo printing, customized packaging, firmware customization, and multilingual manuals.
Quality Guarantee
At JUNSON, all access control products undergo strict quality inspections before shipment to ensure stable performance and long-term reliability.
We provide a 3-year limited warranty for eligible products against manufacturing defects under normal operating conditions. Warranty service does not cover damage caused by improper installation, misuse, or unauthorized modifications. Professional technical support is available for installation and after-sales assistance.
