JS-K6902 Series Standalone Waterproof RFID Access Control Reader — IP66, Wiegand 26/34
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-K6902 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T,paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Dimension: | 63L *16H Mm | Capacity: | 3000 Cards |
|---|---|---|---|
| Materials: | Zinc Alloy Housing | Voltage: | 12V DC ± 25% |
| Frequency Distance: | Up To 8cm | Wiegand Output: | Build In Wg26/34 |
| Card Type: | EM Or MF | Door Relay Time: | 1-99S |
| Gross Weigth: | 0.27kg | Waterproof Rate: | IP66 |
Product Description
JS-K6902 Series Standalone Waterproof RFID Access Control Reader
Metal Case RFID Access Control
Model: JS-K6902

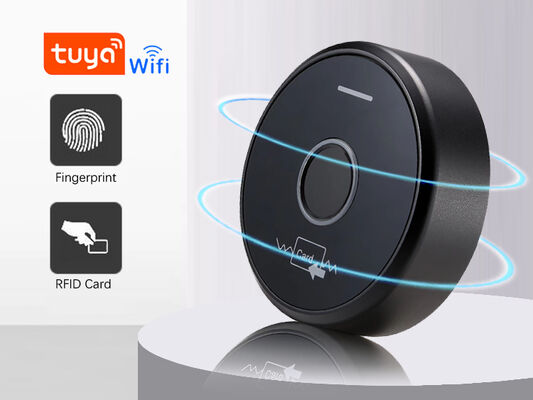

Upgrade your door security with the JS-K6902 Series — a rugged, standalone access control reader built for outdoor environments. Housed in a vandal-resistant zinc alloy metal case with an IP66 waterproof rating, this compact round reader supports up to 3,000 users and offers EM or MF card compatibility, Wiegand 26/34 input/output, and multi-mode unlocking options. Choose from three models: JS-K6902 (RFID only), JS-F6902 (Fingerprint + Card), or JS-F6902-Wifi (Fingerprint + Card + Tuya App) for remote management via smartphone.
Specifications:
| Dimension: | Dia. 63 mm × 16 mm (H) |
| Waterproof rate: | IP66 |
| Materials: | Zinc Alloy Housing |
| Voltage: | 12V DC ± 25% |
| Frequency distance | 3-8cm |
| Wiegand output | Build in Wg26/34 |
| Card type: | EM or MF |
| Card Frequency | 125Khz or 13.5Mhz |
| Surface Temp: | ≦20℃ |
| Operating Humidity | 10-95% |
| Door relay time | 1-99S |
| Net Weight: | 0.20kg |
| Gross Weigth: | 0.27kg |
Key Features:
-
IP66 waterproof & anti-vandal design — zinc alloy housing, ideal for outdoor and harsh environments
-
Three models available — RFID only / Fingerprint + Card / Fingerprint + Card + Tuya App (WiFi)
-
Large user capacity — up to 3,000 users (200 fingerprints + 2,800 cards on fingerprint models)
-
Wide compatibility — supports EM (125KHz) or MF (13.56MHz) cards
-
Wiegand 26/34 in/out — works standalone, as a reader with a control board, or with external readers; MF supports Wiegand 26–44, 56 and 58 bits
-
Remote access (WiFi model) — unlock doors, add/delete users, view door records, and set temporary visitor PINs via the Tuya App
-
Backlit metal keys — slim, elegant, rugged and explosion-proof
-
Data protection — user data is retained even after power failure
-
Flexible unlock modes — card, fingerprint, app, multi-user, and temporary visitor access
-
Easy user management — upload/download card user data; management card supported
-
Wide temperature range — operates from -40℃ to 60℃
Model Comparison:
| JS-K6902 | JS-F6902 | JS-F6902-Wifi | |
|---|---|---|---|
| Type | RFID only | Fingerprint + Card | Fingerprint + Card + Tuya App |
| Capacity | 3,000 cards | 200 fingerprints + 2,800 cards | 200 fingerprints + 400 cards |
| Communication | Standalone | Standalone | WiFi |
| Unlock Methods | Card | Fingerprint, Card | App, Fingerprint, Card |
Connection Diagrame:

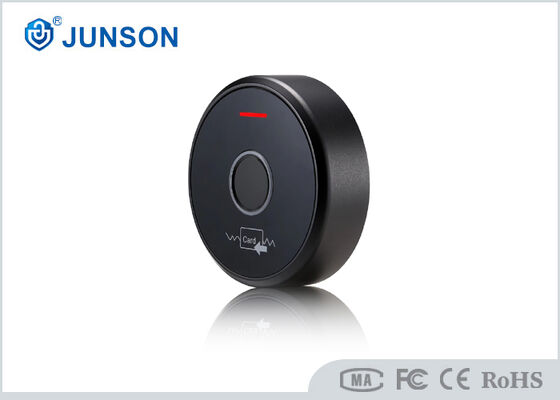

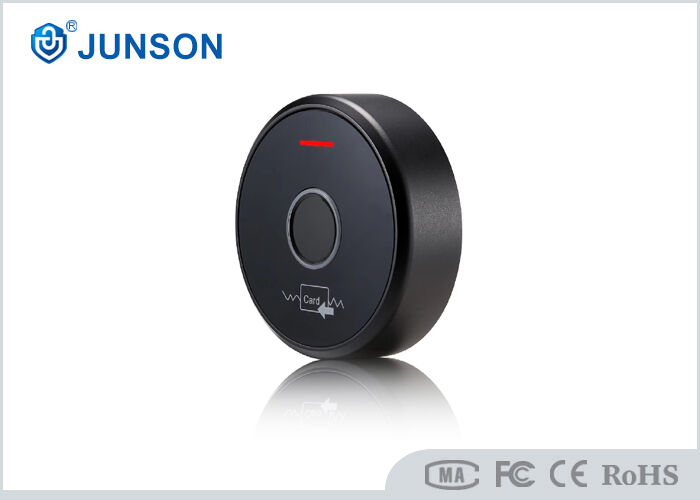

Photos:
FAQ:
Q1: Can this device be used outdoors?
Yes. The JS-6902 series features an IP66 waterproof rating and a rugged zinc alloy housing, making it suitable for outdoor installation in rain, dust, and extreme temperatures (-40℃ to 60℃).
Q2: What is the difference between the three models?
The JS-K6902 is a card-only reader with 3,000-card capacity. The JS-F6902 adds fingerprint recognition (200 fingerprints + 2,800 cards). The JS-F6902-Wifi combines fingerprint, card, and Tuya App control with remote unlocking and user management over WiFi.
Q3: Which card types are supported?
The device supports EM cards (125KHz) or MF cards (13.56MHz), depending on the version ordered.
Q4: Can it work with my existing access control board?
Yes. It has built-in Wiegand 26/34 input and output, so it can function as a standalone controller or as a reader connected to a third-party access control panel.
Q5: What happens to my user data if the power goes out?
All user data is protected and retained even after a power failure — no need to re-enroll users.
Q6: How do I set a temporary visitor PIN?
On the WiFi model (JS-F6902-Wifi), you can set temporary visitor access codes directly through the Tuya App.
