IP66 Standalone RFID Access Control System Round Type Metal Case
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-K6902 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Dimension: | 63L *16H Mm | Capacity: | 3000 Cards |
|---|---|---|---|
| Materials: | Zinc Alloy Housing | Voltage: | 12V DC ± 25% |
| Frequency Distance: | Up To 8cm | Wiegand Output: | Build In Wg26/34 |
| Card Type: | EM Or Mifare | Door Relay Time: | 1-99S |
| Gross Weigth: | 0.27kg | Waterproof Rate: | IP66 |
| Highlight: | Standalone RFID Access Control System,IP66 RFID Access Control System,IP66 Standalone RFID Access Control |
||
Product Description

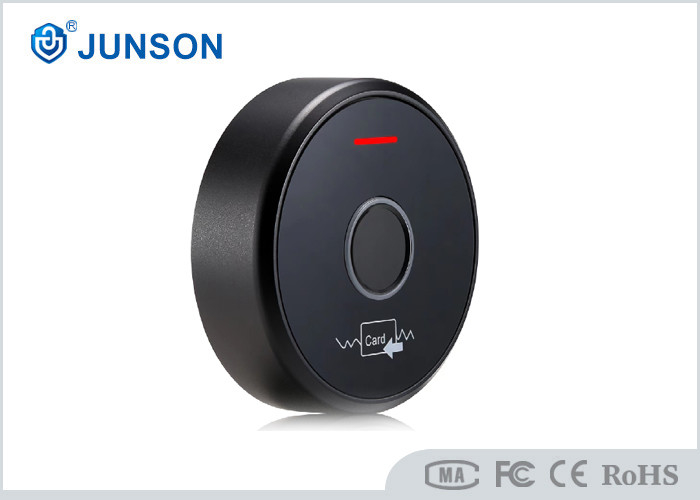

IP66 Standalone RFID Access Control System Round Type Metal Case
Standalone RFID Access Control Round Type Metal Case
Metal Case RFID Access Control
Model: JS-K6902
The round case design of this RFID standalone access control system makes it an attractive and modern-looking. It widely use in different place. Such as in hotels, offices, and other commercial buildings. The system is easy to install and can be managed locally by authorized personnel. It offers a high level of security and can provide an audit trail of access activity.
Parameter List:
| Dimension: | Dia 63L *16H mm |
| Waterproof rate: | IP66 |
| Materials: | Zinc Alloy Housing |
| Voltage: | 12V DC ± 25% |
| Frequency distance | 3-8cm |
| Wiegand output | Build in Wg26/34 |
| Card type: | EM or Mifare |
| Card Frequency | 125Khz or 13.5Mhz |
| Surface Temp: | ≦20℃ |
| Operating Humidity | 10-95% |
| Door relay time | 1-99S |
| Net Weight: | 0.20kg |
| Gross Weigth: | 0.27kg |
Features:
1. IP66 and Zinc Alloy material access control
2. Anti-vanda , waterproof & back-lit metal key buttons, slim ,elegant and rugged design , anti-explosion
3. Support EM or Mifare
4. Mifare Wiegand 26-44bits, 56bits, 58bits input output, EM wiegand 26 bits
5. Support wiegand input and output , can work with reader or work with control board as a reader
6. Supports 3000 cards for users
7. Opening method: RFID/IC cards
Wires Definition:
| NO. | Function | Colour | Notes |
| 1 | NC | Orange | Relay NC |
| 2 | COM | Purple | Relay COM |
| 3 | NO | Blue | Relay NO |
| 4 | GND | Black | Negative pole |
| 5 | DC+ | Red | Positive Pole |
| 6 | OPEN | Yellow | Exit Button |
| 7 | D_IN | Brown | Door Contact |
| 8 | ALARM- | Grey | Connect to external alarm negative pole |
| 9 | D0 | Green | Wiegand Output/Input Data 0 |
| 10 | D1 | White | Wiegand Output/Input Date 1 |
Connection Diagrame:
Images:
FAQ:
Q: Is your company a factory or a trading company?
A: Junson is a factory. Access controls are one of our mainly products.
Q: How can you make a difference from other suppliers?
A: We have enjoyed more than 10 years of rapid development together with our customers.
We know our customers’ need as well as the market’s developing trend.
We have the most professional producing and testing equipment in this field. Equipped with a strong QC dept and R&D dept, each of our products' quality is under strict control standard.
Buy from us with 100% confidence.
Q: How is your production ability?
A: Our monthly production capacity is over 5,000 pieces.
Q: What is your MOQ?
A: Our MOQ is 1 piece.
We are always offering our customers with the great support for their different need.
