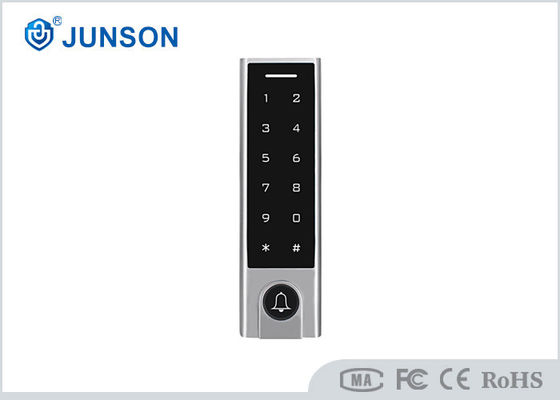

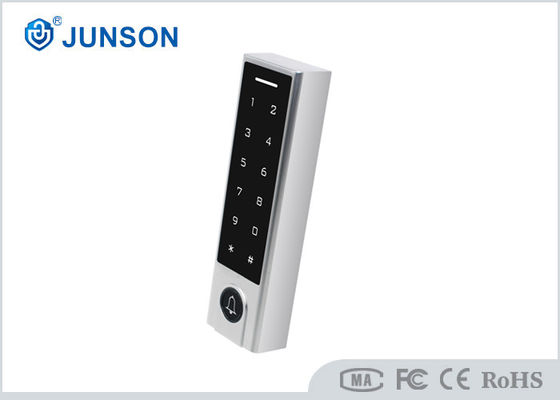

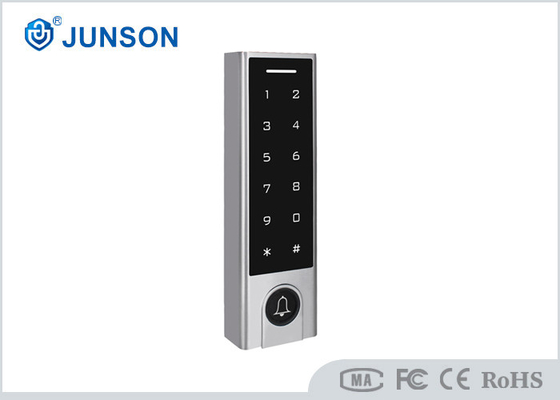

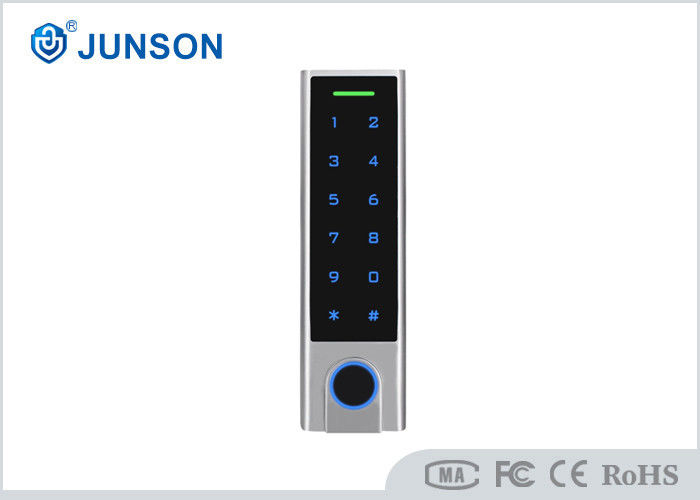

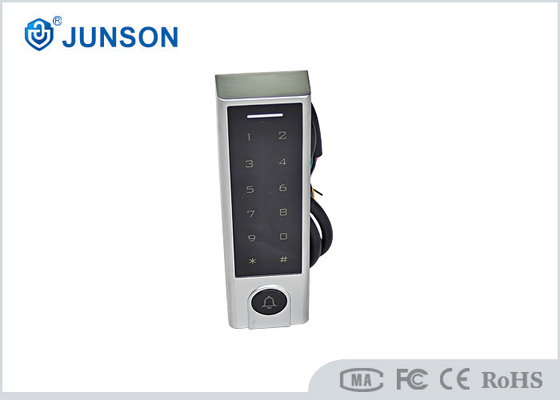

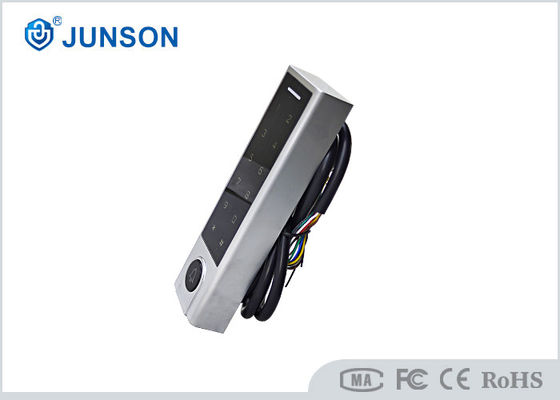

IP66 Zinc Alloy RFID Keypad 99S with Bluetooth and Tuya App for Smart Access Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-T586-BT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 5-7 days upon receipt the payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 1000/pcs/week |
|
Detail Information |
|||
| Brand: | JUNSON | Size: | 148mm * 43.5 Mm * 22mm |
|---|---|---|---|
| Mobile Available: | IOS 7.0 , Android 4.3 Above | Frequency Distance: | 2 - 6 (cm) |
| Waterproof Ratetion: | IP66 | PIN Length: | 4 - 6 Digits |
| Operating Humidity: | 0-98% | Open Door Method: | Card, Password , Card+password |
| Voltage: | 12V - 18V DC | Lock Output Load: | 2Amp Max. |
| Materials: | Zinc Alloy Shell | ||
Product Description
Model: JS-T586-BT
Upgrade your security system with the 99S RFID Access Control Keypad, crafted with a durable zinc alloy body and built to withstand harsh outdoor environments. With an IP66 waterproof rating, this keypad delivers reliable performance in rain, dust, and extreme conditions.
Parameter List
| Dimension | 148mm * 43.5mm * 22mm |
| Weight | 0.45kg |
| Materials | Zinc Alloy Housing |
| Voltage | 12V - 18V DC |
| Current |
Open max current: 150mA Max Static current: 60mA max |
| IP rate |
IP66 |
| Operating Temp | -30℃ - 60℃ |
| Operating Humidity | 0-98% |
| Open door method | Card, password , card+password |
| Door relay time | 1-99S |
| Frequency distance |
6cm |
| Wiegand Interface | Build in Wg26-44 in & out |
| Wiring connections |
Relay output, Exit button, Alarm, Door Contact Wiegand in & out |
| PIN Length | 4 - 6 digits |
| Card type: |
EM or Mifare one card 125KHz / 13.56Mhz |
| Lock output load | 2Amp Max. |
| Colour: | Silver |
| User Capacity |
1000 users Common user: 988 Card / PIN Visitor Users: 10 Panic User: 2 |
Description:
-
Durable zinc alloy access control with IP66 waterproof rating.
-
Anti-vandal, waterproof, and backlit metal keys with a slim, elegant, and sturdy design.
-
Configurable unlock delay, unlock duration, and alarm delay for precise control.
-
Compatible with electric locks, alarms, door sensors, exit buttons, and doorbells for seamless access integration.
-
Supports Wiegand input/output, works with card readers or as a standalone card reader with a control board.
-
Easy programming and user-friendly operation.
-
Supports management card setup for secure access control.
-
Password length: 4–6 digits.
-
Touchscreen design with backlit highlights for enhanced usability and aesthetics.
-
Works with magnetic locks, electric locks, exit buttons, door sensors, bells, sirens, and slave card readers for complete access control solutions.
