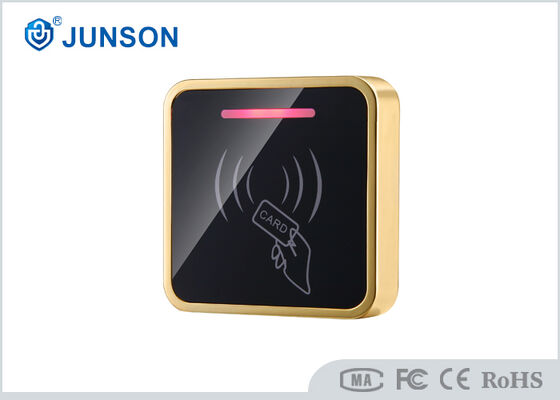

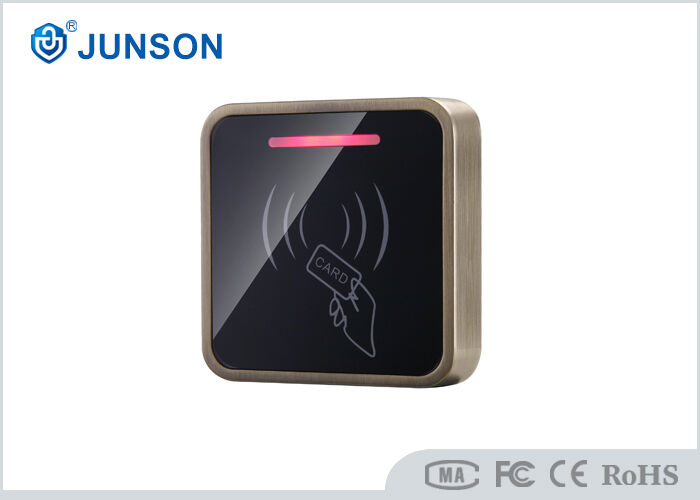

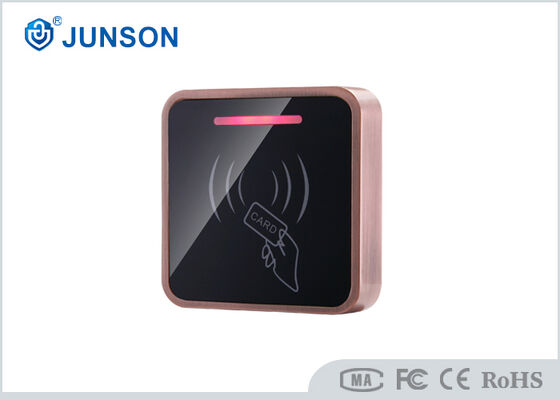

JS-K308 IP68 Waterproof Standalone RFID Access Control Keypad with Wiegand
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-K308 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Brand: | JUNSON | Model: | JS-K308 |
|---|---|---|---|
| Dimension: | 78.7*78.7*18.6 Mm | Voltage: | 12V DC |
| User Capacity: | 3000 Users , (customlize 50000 Users) | Frequency Distance: | 3-6cm |
| Highlight: | IP68 waterproof RFID access control keypad,standalone RFID keypad with Wiegand,RFID access control system keypad |
||
Product Description
Product Description
The JS-K308 Standalone RFID Access Control Keypad is a professional access control device designed for residential, commercial, and industrial security applications. It supports RFID card access, PIN code entry, and card + password verification, providing flexible and secure door access management.
Featuring an IP68 waterproof zinc alloy housing, anti-vandal metal keypad, and backlit illuminated keys, the JS-K308 is suitable for both indoor and outdoor installations. It also supports Wiegand input and output, allowing it to work as a standalone controller or as a reader integrated with an external access control panel.
With support for up to 3,000 users (customizable up to 50,000 users), adjustable relay time, and compatibility with magnetic locks, electric locks, exit buttons, alarms, and door sensors, the JS-K308 is an ideal solution for modern access control systems.
Key Features
-
IP68 Waterproof & Anti-Vandal Design for indoor and outdoor installation.
-
Multiple Access Methods: RFID Card, PIN Code, and Card + Password.
-
Standalone Access Control supporting up to 3,000 users.
-
Customizable User Capacity up to 50,000 users for large projects.
-
Backlit Metal Keypad for convenient operation in low-light environments.
-
Wiegand Input & Output supports standalone controller or reader mode.
-
Adjustable Door Relay Time from 1–99 seconds.
-
Power-Failure Data Protection keeps user information stored after power loss.
-
Easy Programming via management card or keypad.
-
Compatible with magnetic locks, electric locks, door sensors, alarms, exit buttons, doorbells, and slave readers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JS-K308 |
| Dimensions | 78.7 × 78.7 × 18.6 mm |
| Housing Material | IP68 Zinc Alloy Housing |
| Operating Voltage | DC 12V |
| Unlock Current | Max. 1.5A |
| Standby Current | Max. 60mA |
| User Capacity | 3,000 Users (Up to 50,000 Customizable) |
| Card Types | IC Card / ID Card |
| Reading Distance | 3–6 cm |
| Access Methods | RFID Card / PIN Code / Card + PIN |
| Door Relay Time | 1–99 Seconds (Adjustable) |
| Operating Temperature | -20°C to 40°C |
| Operating Humidity | 20–40% RH (Non-condensing) |
| Surface Temperature | ≤20°C |
| Color Options | Gold / Copper |
| Weight | 0.45 kg |
| Standard Packing | 30 pcs/carton |
| Carton Size | 54 × 20 × 30.5 cm |
Access Control Functions
| Function | Support |
|---|---|
| RFID Card Access | ✓ IC Card / ID Card |
| PIN Code Access | ✓ Supported |
| Card + Password Verification | ✓ Supported |
| Electric Lock Control | ✓ Magnetic Lock / Electric Lock / Electric Strike |
| Exit Button Connection | ✓ Supported |
| Door Sensor Input | ✓ Supported |
| Alarm Output | ✓ Supported |
| Doorbell Connection | ✓ Supported |
| Wiegand Input / Output | ✓ Supported |
| Standalone Controller Mode | ✓ Supported |
| Reader Mode | ✓ Supported |
Applications
The JS-K308 RFID Access Control Keypad is suitable for:
-
Office Buildings
-
Apartments & Residential Communities
-
Villas
-
Hotels & Homestays
-
Factories & Warehouses
-
Schools & Universities
-
Commercial Buildings
-
Outdoor Entrance Gates
-
Smart Access Control Projects
Frequently Asked Questions
Q: What access methods does the JS-K308 support?
A: The JS-K308 supports RFID cards, PIN codes, and card + password verification.
Q: Is the JS-K308 suitable for outdoor use?
A: Yes. The controller features an IP68 waterproof zinc alloy housing and an anti-vandal design for outdoor installations.
Q: How many users can it store?
A: The standard version supports 3,000 users, with customization available for up to 50,000 users.
Q: Does it support Wiegand?
A: Yes. It supports Wiegand input and output, allowing it to work as a standalone controller or an external reader.
Q: Can it work with magnetic locks and exit buttons?
A: Yes. It supports magnetic locks, electric locks, electric strikes, exit buttons, door sensors, alarms, and doorbells.
Q: Will user data be lost after a power failure?
A: No. The JS-K308 includes power-failure memory protection, so user data remains stored after power loss.
