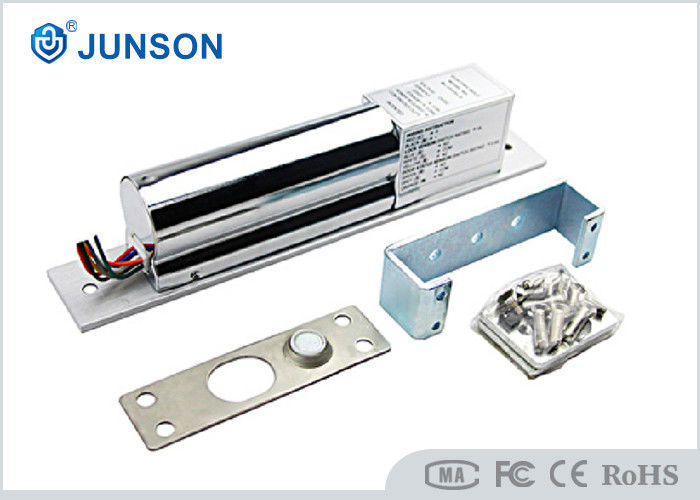

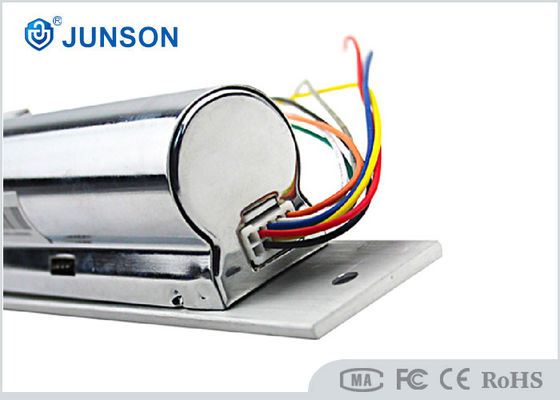

1000kg Holding Electric Bolt Lock Double Sensor Output 15.5mm Pin
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-ML200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Electric Bolt Lock | Holding Force: | 1000(kg) |
|---|---|---|---|
| Timer Adjuster: | 0\3\6\9 S | Voltage: | DC12V Or 24V |
| Feature: | Unlock When Power Off | Door Sensor: | NO\NC\COM |
| Lock Sensor: | NO\NC\COM | Carton Size: | 53L*30W*14H(mm) |
| Lock Pin: | 15.5(mm)DIA | Weight: | 0.9(kg) |
| Current: | Start:0.85A Standby:0.09A | Bolt Out Plate Size: | 220L*42W*0.8H(mm) |
| Highlight: | 1000kg Holding Electric Bolt Lock,Double Sensor Output Electric Bolt Lock,15.5mm Pin Magnetic Bolt Lock |
||
Product Description
Model:JS-ML200
Specifications :
| Fail Safe | Unlock When power off |
Face plate size | 210L*34W*3.4H(mm) |
| Bolt out plate size | 220L*42W*0.8H*(mm) |
Magnet bracket | 90L * 24W * 3H (mm) |
Lock pin: | 15.5mm DIA, Stainless steel, out throw 15mm |
Holding force | 1000kg |
Voltage : | 12V DC / 24V DC (customized) |
Current : | Start current 0.85A, standby current: 0.09A |
soloenoid | Continuous duty |
Auto relock jumper | Adjustable 0/3/6/9s |
Double sensor output | NO/NC/COM |
Surface Temp: | ≦20℃ |
Operating Temp: | -10℃ - 25℃ |
Suitable Humidity: | 0-90% (non-condensing) |
Face place material | 3mm thickness stainless steel |
Weight: | 0.9kg |
Standard Packing: | 10pcs |
Cartons size: | 53L * 30W * 14H (cm) |
Description:
1. Fail safety, unlock when power off
2 . Low temperature, safe and durable.
3. Low power, environmental protection.
4. Special photoelectric control, three-step current application.
5 . Long life, long cycle.
5 MMOV provides reverse current protection.
7. Superior strength aluminum alloy, solid stainless steel bolts.
8. Lock sensor and door sensor outputs.
9. Certificate: CE/ROH
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years
warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,
please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike,
Electric bolt lock, Electronic lock. Door lock. Ac
