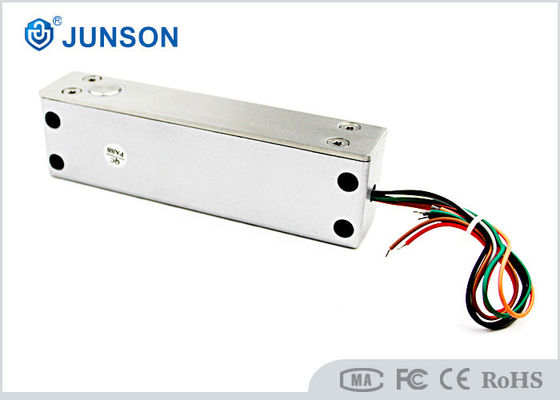

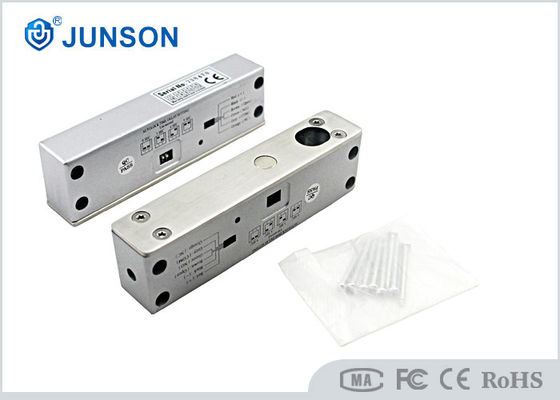

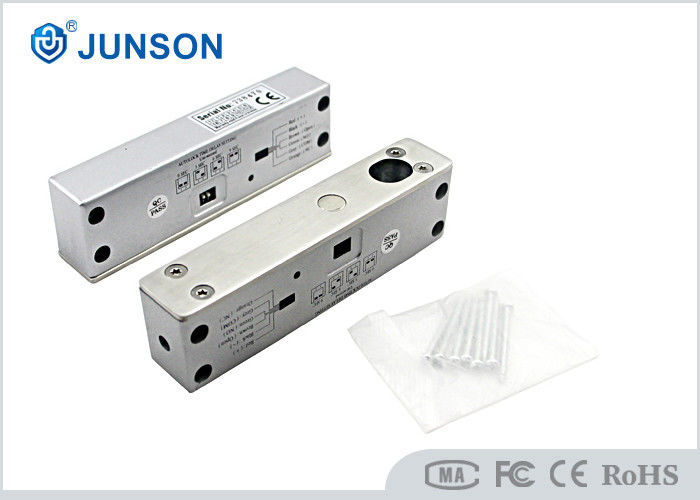

NO NC COM Output Electric Bolt Lock 9S Timer For Surface Installation
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-128A6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Electric Lock | Holding Force: | One Thousand Kg |
|---|---|---|---|
| Timer Adjuster: | 0/3/6/9S | Voltage: | DC 12V |
| Feature: | Lock When Power On | Signal Out: | NO\NC\COM |
| Open Sensor: | Magnet Switch Sensor | Material Bracket: | Zinc Alloy |
| Lock Pin: | 12mm DIA | Weight: | 1.2(kg) |
| Current: | Start:0.95A Standby:0.12A | Size: | 128L*25W*37H(mm) |
| Standard Packing: | 20pcs/Carton | ||
| Highlight: | Surface Installation Electric Blot lock,COM Output Electric Bolt Lock,9S Timer Electromagnetic Bolt Lock |
||
Product Description
Model:JS-128A6
Specifications :
| Fail Safe |
Unlock When power off |
|
Material size |
Zinc alloy |
|
Magnet bracket |
128L * 25W * 37H (mm) |
|
Lock pin: |
12mm DIA, Stainless steel, out throw 15mm |
|
Holding force |
1000kg |
|
Voltage : |
12V DC / 24V DC (customized) |
|
Current : |
Start current 0.95A, standby current: 0.12A |
|
soloenoid |
Continuous duty |
|
Auto relock jumper |
Adjustable 0/3/6/9s |
|
Door sensor output |
NO/NC/COM |
| LED Indicate | Red to open,Green to lock |
| Open wires | Open lock directly by short with black wire |
|
Surface Temp: |
≦20℃ |
|
Operating Temp: |
-10℃ - 25℃ |
|
Suitable Humidity: |
0-90% (non-condensing) |
|
Face place material |
3mm thickness stainless steel |
|
Weight: |
1.2kg |
|
Standard Packing: |
20pcs |
|
Cartons size: |
45.5L * 29W * 22H (cm) |
Description:
1 . Fault safety, power lock
2 . Low temperature, safe and durable.
3 . Low power, environmental protection.
4. Special photoelectric control, three-step current application.
5 . Long life and 500,000 cycles.
6 . MOV provides reverse current protection.
7 . Superior strength aluminum alloy, solid stainless steel bolts.
8. Double protection of the load current.
9. Certificate: CE/ROHS
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years
warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,
please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike,
Electric bolt lock, Electronic lock. Door lock. Ac
