Waterproof Fingerprint Access Controller Support RFID Password
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CMA,FCC,CE,RoHS |
| Model Number: | JS-F653 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 6-10 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Materials:: | ABS High Quality Materials Housing Touch Screen Panel | Fingerprint & Card: | 120 |
|---|---|---|---|
| Operating Voltage: | 12VDC±10% | Fingerprint Reader: | Semiconductor Capacitor Fingerprint Module |
| Proximity Card Reader: | Industry Standard 26/34bits | Wiring Connections: | Relay Output, Exit Button, DOTL, Wiegand26 Output |
| Door Opening Time Delay: | 0-255S | Relay: | One (NO, NC, Common) |
| Access Type:: | Fingerprint, Card, Pin Cord | Waterproof Rate: | IP68 |
| Physical: | Metal Enclosure | ||
| Highlight: | IP68 Waterproof Fingerprint Access Control,255S Fingerprint Access Control,RFID Password Fingerprint Security System |
||
Product Description
IP68 Waterproof Fingerprint Access Control support RFID Card Reader and Password Functions
Fingerprint Access Controller Waterproof IP68 MF one

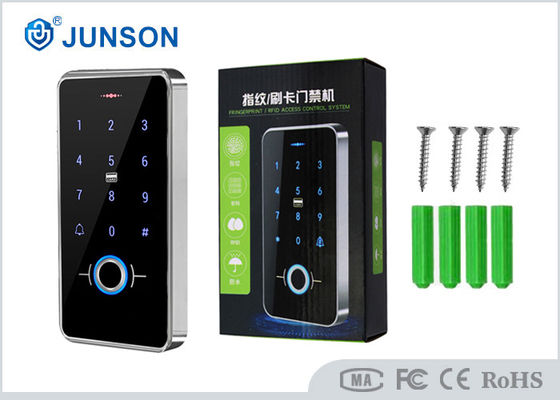

Model: JS-F653
Secure your premises in any environment with the JS-F653, a compact yet powerful standalone access controller built to withstand the toughest conditions. Featuring IP68 waterproof and dustproof protection, this device delivers seamless access control through fingerprint, RFID card, and PIN code — making it the ideal solution for both indoor and outdoor installations.
Parameter List
| Materials: |
ABS High Quality materials housing Touch Screen Panel |
|
User Capacity Fingerprint Card Pin cord |
120 120 1 team |
|
Operating Voltage Idle Current Active Current |
12VDC±10% ≤ 30 mA ≤ 100mA |
|
Fingerprint Reader Resolution Identification Time FAR FRR |
Semiconductor capacitor Fingerprint Module 500DPI ≤1S ≤0.01% ≤0.1% |
|
Proximity Card Reader Radio Technology Read Range |
Industry Standard 26/34bits 13.5M Hz 0 - 10 cm |
| Wiring Connections |
Relay Output, Exit Button, DOTL, Wiegand26 Output |
| Door Opening Time delay | 0-255S |
|
Relay
|
One (NO, NC, Common) |
| Access type: | Fingerprint, Card, Pin cord |
| Waterproof Rate | IP68 |
|
Environment Operating Temperature Operating Humidity |
-20℃~70℃ - 20%RH-90%RH |
|
Physical Dimensions Unit Weight
|
Metal Enclosure L140 × W70 × D16 (mm) 250g |
Production Features:
360 degree comprehensive fingerprint recognition, fast identify speed
For different angles of fingerprints, it can be quickly and accurately identified
Support Fingerprint, RFID Card, Password to open the door
Support 120 fingerprint or cards, 1 group password to open the door
IP68 waterproof, Can be installed outdoor
With Full PC Glue in the back side, IP68 rating, can work in the weather.
Backlight Keypad
In the dark, you can also enter the password to unlock normally
Easy Installation and Operation
Based on advance technology, fast recognition speed, high sensitivity, Suitable for most major access control solution
Wiring Diagram
This is Standalone access controller, do not need to connected to computer. Just need connect it to Special access control power supply, Electric lock, exit button to work.
FAQ:
Q1: What does IP68 mean?
A1: IP68 is an Ingress Protection (IP) rating. The "6" indicates the highest level of protection against dust, ensuring no dust can enter the device. The "8" signifies the highest level of water resistance, allowing the device to be submerged in water up to a certain depth without damage.
Q2: How does fingerprint recognition work?
A2: Fingerprint recognition captures unique patterns and ridges on an individual's fingertip. These patterns are converted into a digital template for authentication. When a person places their finger on the sensor, the system compares the captured fingerprint with the stored templates to grant or deny access.
Q3: Where can IP68 Waterproof Fingerprint Access Control be used?
A3: This access control system is suitable for various environments, particularly those exposed to water or dust. Examples include outdoor installations, swimming pools, factories, construction sites, or marine environments.
Q4: Can it withstand heavy rain or temporary submersion?
A4: Yes, the IP68 rating ensures the device can withstand heavy rain, splashes, and temporary submersion in water without being damaged.
