Product Details:

Place of Origin: China
Brand Name: Junson
Certification: CE/FCC
Model Number: JS-6902

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 5000 pcs per month
Get Best Price Contact Now

Detail Information

Dimension: 63L *16H Mm Waterproof Rate: IP66
Materials: Zinc Alloy Housing Voltage: 12V DC ± 25%
Current: Open Max Current: 150mA Static Current: 45mA Max Frequency Distance: 3-8cm
Wiegand Output: Build In Wg26/34 Card Type: EM Or Mifare
Door Relay Time: 1-99S Gross Weigth: 0.27kg
High Light:

3cm Standalone Access Control

,

IP66 Standalone Access Control

,

8cm RFID Card Access Control

Product Description

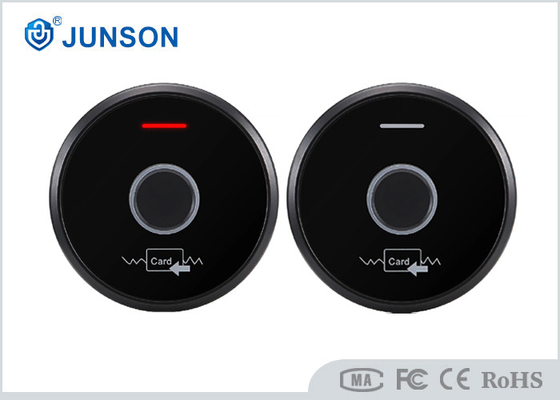

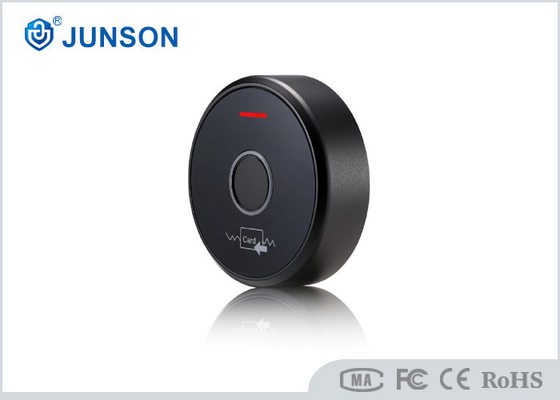

3cm 8cm Fingerprint RFID Card Standalone Access Control Round Type



Round Type Metal Waterproof Fingerprint & RFID Card Standalone Access Control

Standalone RFID Access Control Sound type metal case



This device is a waterproof access control for outside using, Supporting 3000 user cards, have RFID only , Fingerprint + card, Fingerprint +Card+Tuya app 3 types.



Parameter List:



Dimension: Dia 63L *16H mm
Waterproof rate: IP66
Materials: Zinc Alloy Housing
Voltage: 12V DC ± 25%
Current

Open max current: 150mA

Static current: 45mA max

Frequency distance 3-8cm
Wiegand output Build in Wg26/34
Card type: EM or Mifare
Card Frequency 125Khz or 13.5Mhz
Surface Temp: ≦20℃
Operating Temp -40℃ - 60℃
Operating Humidity 10-95%
Door relay time 1-99S
Net Weight: 0.20kg
Gross Weigth: 0.27kg















Diffenent type:

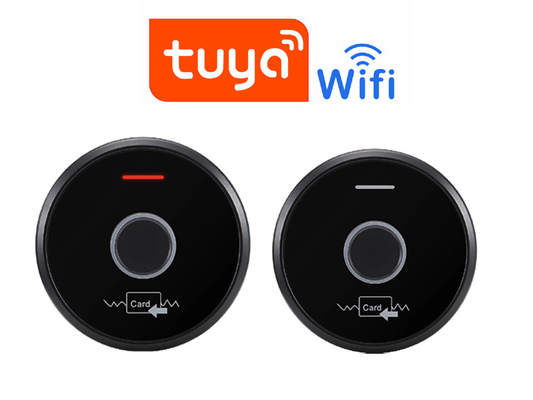

Types: RFID only Fingerprint + Card Fingerprint+Card+Tuya app
Model: JS-K6902 JS-F6902 JS-F6902-Wifi
Capacity: 3000 Cards 200 fingerprints +2800 cards 200 fingerprints + 400 cards
Communication: Standalone Standalone WIFI
Open model: Card Fingerrpint, Card, APP, fingerprint, card,















Features:



1. IP66 and Zinc Alloy material access control

2. Anti-vanda , waterproof & back-lit metal key buttons, slim ,elegant and rugged design , anti-explosion

3. Support EM or Mifare

4. Mifare Wiegand 26-44bits, 56bits, 58bits input output, EM wiegand 26 bits

5. Support wiegand input and output , can work with reader or work with control board as a reader

6. Can setting management cards

7. Data is protected even after power failure

8. With back highlight

9. Suport Fingerprint / APP / Card code / multi-users/temporary visitor user opening the door

10. Supporting upload and download the data of card user

11. For Wifi model, Can remote control door open by phone, Can add user and delete use by Tuya APP, Can check door recode on Tuya app. Setting temporary visitor pin for visitor.











Wires Definition:



NO. Function Colour Notes
1 NC Orange Relay NC
2 COM Purple Relay COM
3 NO Blue Relay NO
4 GND Black Negative pole
5 DC+ Red Positive Pole
6 OPEN Yellow Exit Button
7 D_IN Brown Door Contact
8 ALARM- Grey Connect to external alarm negative pole
9 D0 Green Wiegand Output/Input Data 0
10 D1 White Wiegand Output/Input Date 1















Connection Diagrame:



3cm 8cm Fingerprint RFID Card Standalone Access Control Round Type 0

3cm 8cm Fingerprint RFID Card Standalone Access Control Round Type 1





Images:



3cm 8cm Fingerprint RFID Card Standalone Access Control Round Type 2

3cm 8cm Fingerprint RFID Card Standalone Access Control Round Type 3

3cm 8cm Fingerprint RFID Card Standalone Access Control Round Type 4
