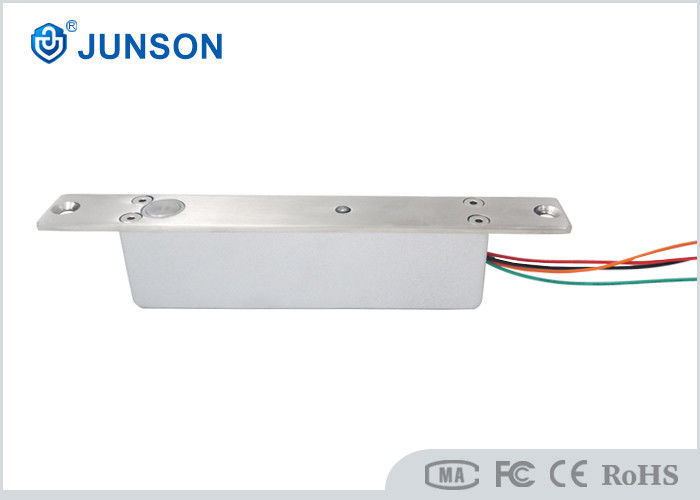

Narrow Door Farm Electric Bolt Lock 0.15A JS-192SL Fail Safe CE Certificated
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-192SL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Lock Size: | 132L*24W*34H (mm) | Holding Force: | 1000kg |
|---|---|---|---|
| Face Plate Size: | 210L*25W*3H (mm) | Timer Adjuster: | 0/3/6/9S |
| Open Wires: | Open Directly Connected To Button With Black Wire | Standby Current: | 0.15A |
| Standard Packing: | 20 Pcs/ Carton | Weight: | 1kg/pcs |
| Face Place Material: | Zinc Alloy And Stainless Steel | Material: | 3mm |
| Voltage: | DC12V / Or 24V To Be Customized | Warranty: | 2 Years |
| Highlight: | electric drop bolt lock,magnetic bolt lock |
||
Product Description
CE Certificate Fail Safe Electric Bolt lock for narrow door farm
Model: JS-192SL
Feature
▶Low Temperature, safe & Durable
▶Low Power, Environmental Protection
▶MOV Provides Reverse Current Protection
▶With open wires, can open lock directly by short with black wire
▶With Led indication, red to open, green to lock
▶Request-to-open, Auto-relock if no Action within 5 sec
▶CE Certificate by European Union, MA China Public Security office
Specification:
| Fail Safe: | unlock when power off |
| Lock body size: | 132L*24W*34H (mm) |
| Faceplate size: | 192L*25W*3H (mm) |
| Material: | Zinc alloy and Stainless steel |
| LED indication | Red to open, Green to lock |
| Magnet bracket: | 100Lx25Wx5.2H(mm) |
| Lock pin: | 12mmDIA,stainless steel out throw16mm |
| Voltage: | DC12V / 24V (customize ) |
| Current: |
Start: 1.1A Standby: 0.15A |
| Holding force | 1000kg |
| Open wires | Connect with exit button with black wire |
| Door sensor feedback | No, Com, (Green/white cable) |
| Solenoid: | Continuous duty |
| Auto relock Timer jumper | adjustable (0/3/6/9S) |
| Temp rise: | ≦10℃ |
| Induction Distance | 8mm |
| Operating temp: | -20~+55℃ |
| Operating Humidity: | 0~90%(non-condensing) |
| Face place material: | 3mm thickness stainless steel |
| Weight: | 1kg |
| Standard Packing: | 20pcs. |
| Carton size: | 45.5Lx29Wx22H(cm) |
