DC36V LED Key Switch Exit Push Button For Door Access Control
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE |
| Model Number: | JS-S70L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 20,000pcs per month |
|
Detail Information |
|||
| Product Name: | Exit Button | Materials: | Stainless Steel Plate |
|---|---|---|---|
| Application: | All Narrow Door Frames | Contact: | No/Com |
| Size: | 115*70*25mm | Voltage: | DC 36V |
| High Light: | DC36V Door Exit Button,DC36V Door Release Button,2mm Door Exit Button |
||
Product Description

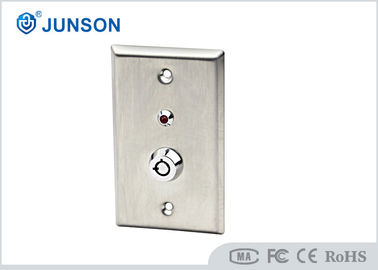

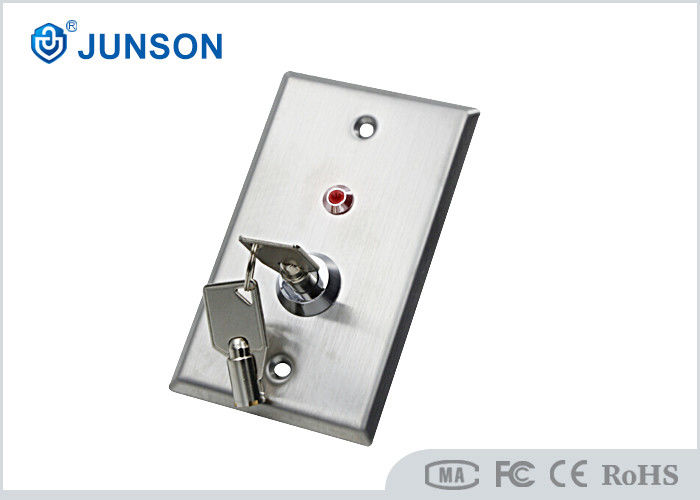

DC36V LED Key Switch Exit Push Button For Door Access Control
DC 36V Stainless Steel Door Release LED Key Switch For Door Access Control
JS-S70L
Specifications:
|
Dimension |
115*70*25mm |
|
Materials |
Stainless steel plate |
|
Thickness of materiasl |
2mm |
|
Available |
All kind of narrow door frame |
|
Finishing |
Sandblast finishing |
|
Current rating |
3A@36VDC, LED: 12V |
|
Contact interface |
NO / NC / COM, output contactor |
|
Mechanical life |
500000 times |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-95% (non-condensing) |
|
Weight |
0.15kg |
|
Standard Packing |
100pcs |
|
Cartons size: |
51L * 24W * 47H (cm) |
Features:
1. LED indication
2. NO / NC / COM, output contactor
3. Stainless steel plate, 2 Keys
4. 3A@36VDC, LED: 12V
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years
warranty
for relative products. On the contrary, JUNSON will charge extra if repair. More information, please
browse our
service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric
bolt lock,
Electronic lock. Door lock. Access control.
