JS-S70 Key Switch With Dual LED Indicator
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE |
| Model Number: | JS-S70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T, PayPal or Western Union in advance |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Model: | JS-S70 | Dimensions: | 115mm (L) × 70mm (W) × 25mm (D) |
|---|---|---|---|
| Material: | Stainless Steel Case, Metal Button | Plate Thickness: | 3mm |
| Contact Interface: | NO / NC / COM | LED Colors: | Red / Green (dual Color) |
Product Description

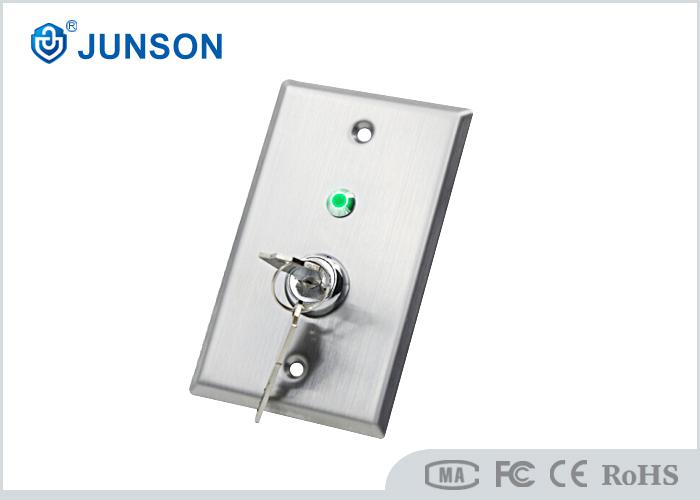

JS-S70 Key Switch with Dual LED Indicator
Product Overview
Key Features
-
Premium Construction: 3mm thick stainless steel case with polished plating finish — elegant, rust-proof, and built to last
-
Durable Metal Button: Copper contactor with high-temperature baking coating for extended service life
-
Dual LED Indication: 2-color LED (Red to Green) for clear status visualization
-
Flexible Wiring: Three contact outputs — NO / NC / COM for easy integration
-
Long Lifespan: Tested to 500,000 mechanical cycles
-
Easy Installation: Includes back box, specifically designed for narrow door frames
Technical Specifications
| Model | JS-S70 |
| Dimensions | 115mm (L) × 70mm (W) × 25mm (D) |
| Material | Stainless steel case, metal button |
| Plate Thickness | 3mm |
| Current Rating | 3A @ 36V DC Max |
| Contact Interface | NO / NC / COM |
| LED Colors | Red / Green (dual color) |
| Mechanical Life | 500,000 cycles |
| Operating Temperature | -10°C to 55°C |
| Humidity | 0–95% (non-condensing) |
| Weight | 0.12 kg |
| Certifications | CE, RoHS, FCC |
Packaging Information
-
Standard Packing: 100 pcs per carton
-
Carton Dimensions: 51cm (L) × 24cm (W) × 47cm (H)
Applications
