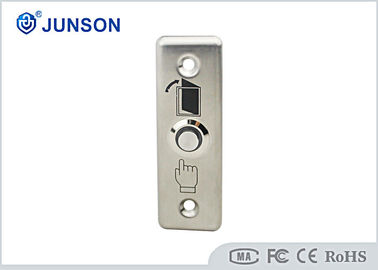

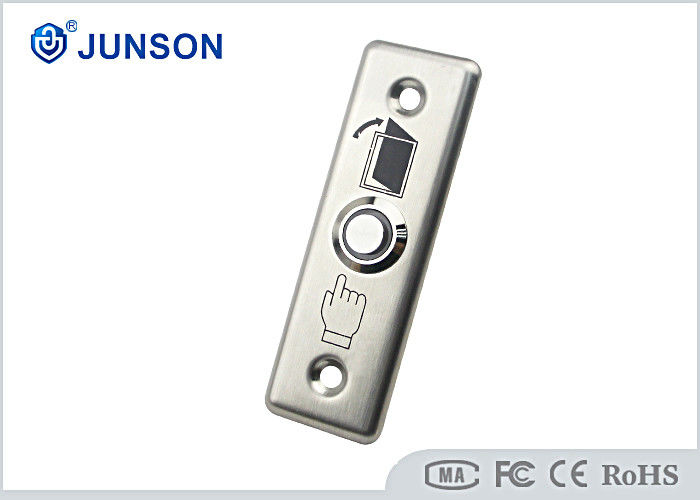

Stainless Steel Exit Push Button Mechanical Access Control Door Release
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE |
| Model Number: | JS-93SL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 20,000pcs per month |
|
Detail Information |
|||
| Product Name: | Exit Switch | Materials: | Pure Copper |
|---|---|---|---|
| Application: | All Narrow Door Frame | Contact: | NO/NC/Com |
| Size: | 91*28mm | Voltage: | DC 12V |
| Highlight: | door exit button,mag lock release button |
||
Product Description
Stainless Steel Exit Push Button Mechanical Access Control Door Release
Specifications:
|
Dimension |
92*28(mm) |
|
Materials |
Pure copper with nickel plating button |
|
Thickness of materiasl |
2mm |
|
Available |
All kind of narrow door frame |
|
Finishing |
Sandblast finishing |
|
Current rating |
3A@36V DC Max |
|
Contact interface |
NO/NC/COM |
|
Mechanical life |
500000 times |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-95% (non-condensing) |
|
Weight |
0.15kg |
|
Standard Packing |
100pcs |
|
Cartons size: |
51L * 24W * 47H (cm) |
Features:
1 . Design with no Mechanical Bolt
2 . Aluminum Panel with Elegant Style
3 . With the Bottom Box, Easy to Install
4 . 500000 Cycles tests
5 . Three Contact Output, Suitable for all kinds of Locks
6 . The Best Choice for Access Control
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock. Door lock. Access control.
