JS-115SL-P LED Door Release Push Button Stainless Steel 115x70mm Exit Switch NO NC COM 12V Access Control
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUNSON |
| Certification: | CE |
| Model Number: | JS-115SL-P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100pcs per carton, carton size 51L x 24W x 47H cm |
| Delivery Time: | 2-7 working days after payment received |
| Payment Terms: | PayPal,Western Union,T/T |
| Supply Ability: | 20000 Pieces per Month |
|
Detail Information |
|||
| Product Name: | LED Door Release Push Button | Model: | JS-115SL-P |
|---|---|---|---|
| Material: | Stainless Steel | Panel Size: | 115 X 70 Mm |
| Thickness: | 2 Mm | Finishing: | Sandblast Finishing |
| LED Indicator: | Built-in LED Light (red / Green Optional) | Voltage: | DC 12V |
| Current Rating: | 3A @ 36V DC Max | Contact Interface: | NO / NC / COM |
| Mechanical Life: | 500,000 Cycles | Operating Temperature: | -10C To 55C |
| Suitable Humidity: | 0-95% (non-condensing) | Weight: | 0.15 Kg |
| Application: | All Kinds Of Narrow Door Frames | Standard Packing: | 100 Pcs Per Carton |
| Carton Size: | 51L X 24W X 47H (cm) | ||
| Highlight: | LED Door Release Button Panel,12V Stainless Exit Switch,Narrow Frame Access Control Button |
||
Product Description

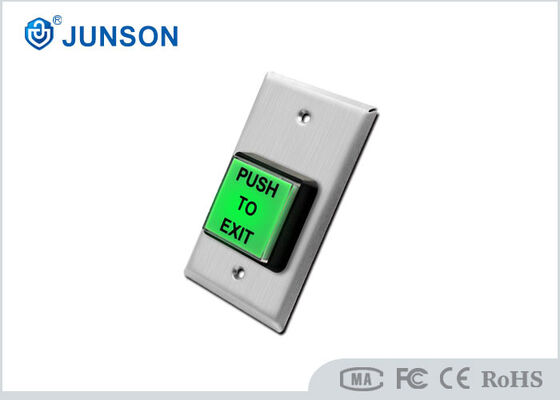

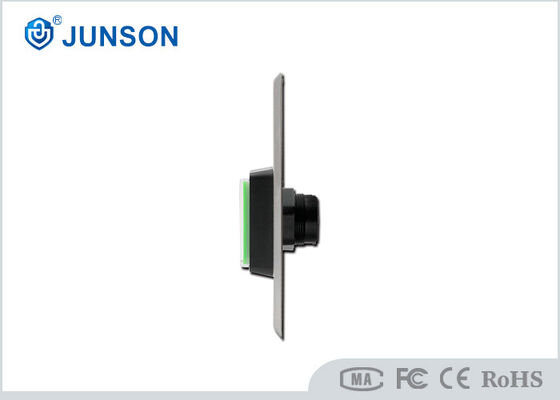

JS-115SL-P LED Door Release Push Button - Stainless Steel Exit Switch
The JS-115SL-P is a slim stainless steel door release push button with a built-in LED indicator. Designed to fit all kinds of narrow door frames, it delivers a clean modern finish and reliable NO/NC/COM contact output, making it a dependable exit device for access control, electromagnetic lock and electric strike systems.
Key Features
- Built-in LED indicator: clearly shows the door locked / unlocked status, with red and green light options for easy identification in low-light corridors.
- No mechanical bolt: a contact-free press design reduces wear and keeps operation smooth over 500,000 cycles.
- Premium stainless steel panel: 2mm thick and sandblast finished, resistant to scratches, fingerprints and corrosion.

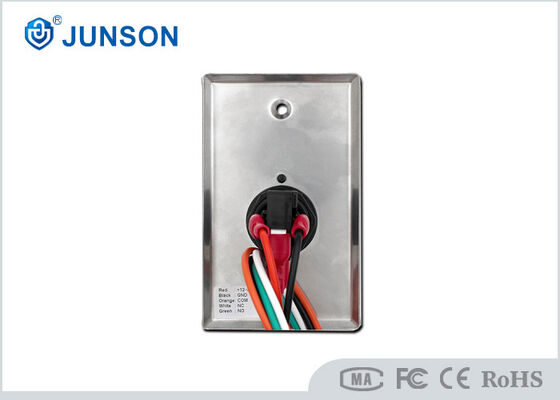

- Three contact output (NO/NC/COM): compatible with all kinds of electric locks, magnetic locks and access controllers.
- Easy installation: supplied with a bottom mounting box and a compact 115 x 70mm faceplate for narrow frames.
Technical Specifications
| Model | JS-115SL-P |
|---|---|
| Product Name | LED Door Release Push Button |
| Dimension | 115 x 70 mm |
| Material | Stainless steel, 2 mm thickness |
| Finishing | Sandblast finishing |
| LED Indicator | Built-in LED light (red / green optional) |
| Voltage | DC 12V |
| Current Rating | 3A @ 36V DC Max |
| Contact Interface | NO / NC / COM |
| Mechanical Life | 500,000 cycles |
| Operating Temperature | -10°C to 55°C |
| Suitable Humidity | 0-95% (non-condensing) |
| Weight | 0.15 kg |
| Application | All kinds of narrow door frames |
| Standard Packing | 100 pcs per carton |
| Carton Size | 51L x 24W x 47H (cm) |
Why Choose the JS-115SL-P
With its LED status indicator, the JS-115SL-P improves both safety and usability: staff and visitors can instantly see whether a door is released. The stainless steel housing resists daily wear and keeps its appearance in high-traffic entrances, while the standard 12V input makes it drop-in compatible with most access control panels.
FAQ
- Q: What is the minimum order quantity (MOQ)?
- A: Our standard MOQ is 50 pieces. Smaller trial orders can be discussed for new customers.
- Q: What is the delivery time?
- A: Normally 2-7 working days after payment is received, depending on order quantity.
- Q: What payment terms do you accept?
- A: T/T, PayPal and Western Union. Other terms can be negotiated for large orders.
- Q: Do you offer samples for testing?
- A: Yes, sample orders are welcome so you can verify quality before bulk purchase.
- Q: What is the warranty?
- A: JUNSON provides a 3-year warranty for relative products. Warranty service is honored if the damage is not caused by human factors; otherwise a repair charge applies.
- Q: Can you customize the logo or packaging (OEM/ODM)?
- A: Yes. We support OEM/ODM with customized logo, color and packaging; please share your requirements for a quotation.
- Q: What voltage does the JS-115SL-P use?
- A: It works on DC 12V and outputs NO/NC/COM dry contacts, compatible with most access control controllers.
- Q: Do you also supply matching locks and controllers?
- A: Yes. We can supply magnetic door locks, electric bolt locks, electric strikes and complete access control kits for one-stop purchasing.
