Infrared Sensor Door Release No Touch Exit Button With Led Indication

Infrared Sensor Door Release No Touch Exit Button With Led Indication

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE
Model Number: JS-H2

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 20,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: No Touch Exit Button Materials: Zinc Alloy
Application: All Narrow Door Frame Contact: NO/NC/COM
Size: 86*86mm Voltage: DC 12V
Highlight:

door exit button

,

door release button

Product Description

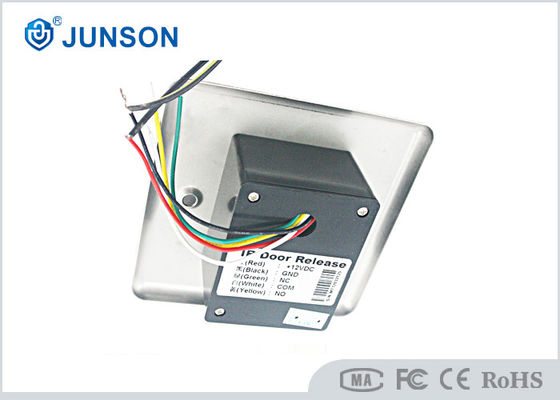

Infrared Sensor Door Release No Touch Exit Button With Led Indication





Specifications:



Dimension

 86*86 (mm)

Materials

Zinc alloy, stainless steel button

Thickness of materiasl

2mm

Available

All kind of narrow door frame

Finishing

Sandblast finishing

Current rating

3A@36V DC Max

Contact interface

NO/NC/COM

Mechanical life

500000 times

Operating Temp

-10℃ - 55℃

Suitable Humidity

0-95% (non-condensing)

Weight

0.15kg

Standard Packing

100pcs

Cartons size:

51L * 24W * 47H (cm)





Infrared Sensor Door Release No Touch Exit Button With Led Indication 0



Infrared Sensor Door Release No Touch Exit Button With Led Indication 1


Features:

1 . Design with no Mechanical Bolt
2 . Aluminum Panel with Elegant Style
3 . With the Bottom Box, Easy to Install
4 . 500000 Cycles tests
5 . Three Contact Output, Suitable for all kinds of Locks
6 . The Best Choice for Access Control



Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty

for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our

service center.



We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,

Electronic lock. Door lock. Access control.
