RFID Access Control System Standalone Keypad with EM Card
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-k315E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | T/T, paypal or western Union in advance |
|
Detail Information |
|||
| Product Name: | Access Control | Static Current: | ≤60 MA |
|---|---|---|---|
| Working Voltage: | DC 12V | Unlock Current: | ≤1.5A |
| Card Quantity: | 800 Pieces | Color: | Sliver |
| RF Card Type: | ID Card | Color: | Black |
| Highlight: | rfid door lock access control system,rfid gate access control system |
||
Product Description

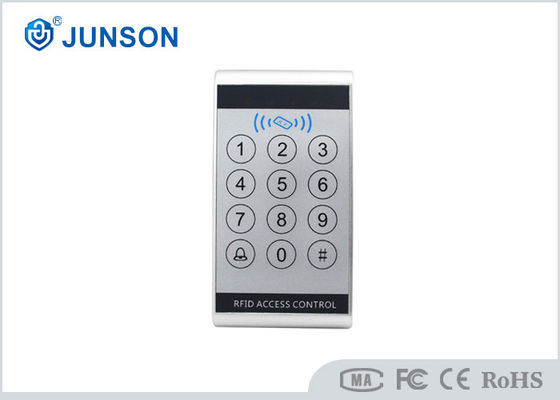

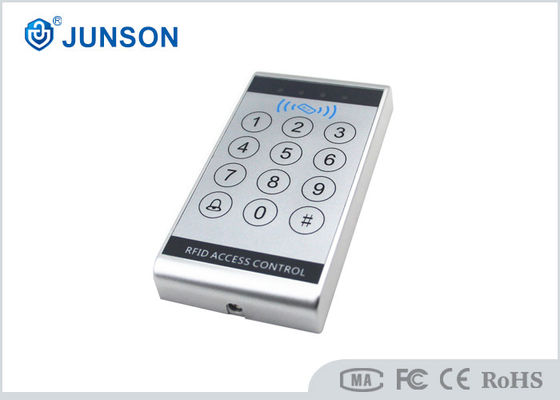

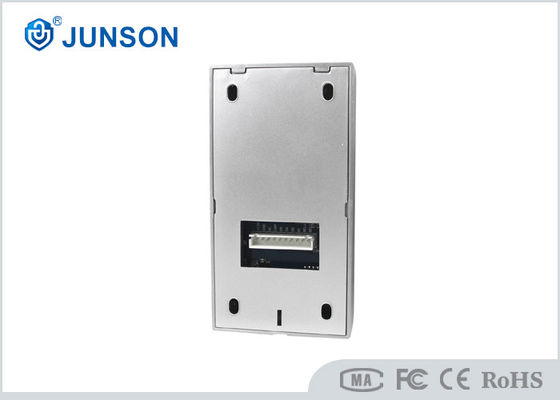

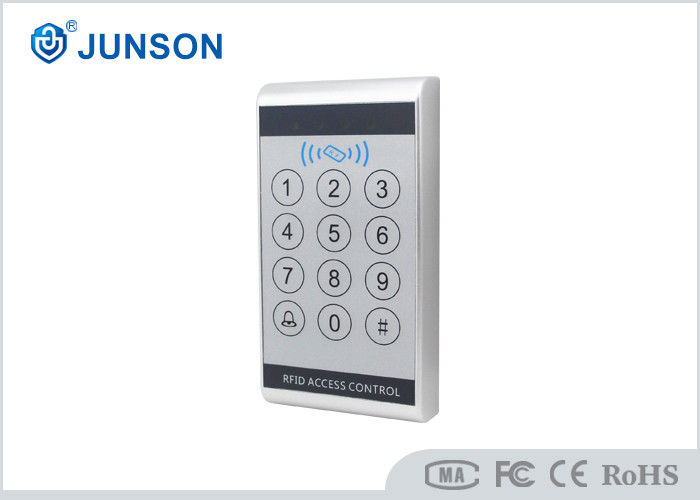

Stand Alone Keypad RFID Access Control System EM Card
We can put your logo on the products as your requirement . we can design special functions for you by our R&D team.
Description :
1 . Plastic housing access control
2 . touch key buttons, slim , elegant and rugged design ,
3 . Lock control delay , unlock duration, alarm delay;
4 . Third part electric lock , alarm, door sensor , exit button and doorbell for access control interface .
5 . Support wiegand input and output , can work with reader or work with control board as a reader
6 . Simple programming , Easy Operation
7 . Can setting cards via management card or on keypad
8 . Data is protected even after power failure
9 . With back highlight
10 . Work with magnetic lock , electric lock , exit button , door sensor , bell , alarm , slave reader
Specifications :
|
Dimension |
113*60*17mm |
|
Materials |
Plastic housing |
|
Voltage |
12V DC |
|
Current
|
Unlock max current: 1.5A |
|
Static current : 60mA max |
|
|
User capacity |
800 pieces |
|
Frequency distance |
3-6cm |
|
Card type |
ID card |
|
Color option |
Sliver |
|
Surface Temp |
≦20℃ |
|
Operating Temp |
-20℃ - 40℃ |
|
Suitable Humidity |
20-40% (non-condensing) |
|
Open door method |
Card, password , card+password |
|
Door relay time |
1-99S |
|
Weight |
0.45kg |
|
Standard Packing |
30pc |
|
Cartons size |
54L * 20W * 30.5H (cm) |
Quality Guarantee :
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please brow our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock. Door lock. Access control.
