Custom Access Control Kits Power Supply With Remote Control Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/FCC |
| Model Number: | JS- 809 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | US$8.14-9.76/cps |
| Packaging Details: | 50cps per cartons |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Name: | Power Supply Control | Materials: | Metal Case |
|---|---|---|---|
| Dimension:: | 120mm*95mm*38mm | Input Voltage:: | 110-240V AC |
| Frequency:: | 50-60Hz | Output Voltage:: | 12V, 3A |
| Timer:: | 0-15S | Weight:: | 0.25Kg |
| High Light: | door access control system kit,access control unit |
||
Product Description

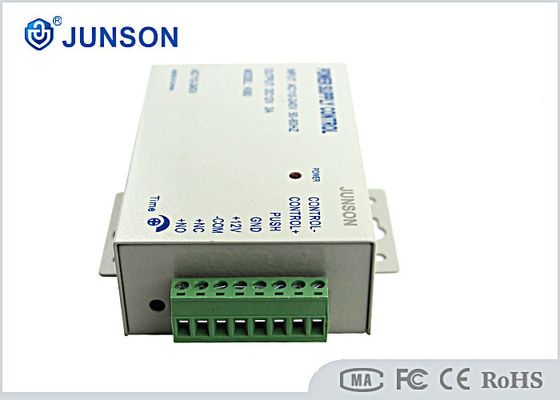

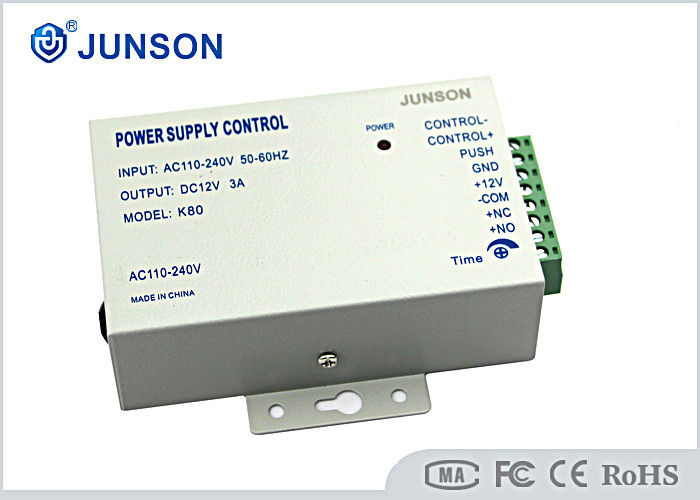

Smallest power supply control for access control system with remote control interface
Model: JS-809
This kind of power supply is smallest power for access control system, available for any of instruction, with one relay, connect with one EM lock, one controller and one exit button.
Parameter:
| Dimensions: | 120mm*95mm*38mm |
| Input Voltage | 110V-220VAC, 50Hz-60Hz, |
| Output Voltage | 12V Dc, 3A |
| Time relay | 0-15S |
| Standard design | Steel Materail, Painted |
| Protect safety | Short circuit protection |
| Suitable for | Access control, Electric lock |
| Output contact | Access control, Electric lock, Push button |
| Load Stability | 1% typical |
| Output Stability | 0.5% typical |
| Dielectric strength | Primary/sub-polar inter-1500V AC |
| Hold time | When the typical full-load value is 20ms |
| Temperature | -20℃~65℃ |
| Humidity | ≦90%RH |
| Weight | 0.25Kg |
Features:
1. Special Design, Suitable for Access Control.
2. Built-in adjustment knob to control timer of lock open, Adjustment range 0-10S
3. With No/NC relay, suitable any type of Electric lock,
4. Built-in current circuit to prevent electric lock inductance reverse, Reduce the load on the access controller
5. With Exit button signal input, contact directly with exit button
6. With Automatic protection function with Fuse.
7. Produced with High Quality Element.
8.Multifunctional Output Contact,Suitable for Multifunctional Request.
9. The Best Choice of Access Control.
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 1 year
warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,
please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,
Electronic lock. Door lock. Access control.
