Stainless Steel Door Loop Cable Protector ABS Head 400mm Armored Gooseneck For Security Systems

Stainless Steel Door Loop Cable Protector ABS Head 400mm Armored Gooseneck For Security Systems

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-403C

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in carton.
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 50,000pcs per week
Get Best Price Contact Now

Detail Information
Product Name: ABS Plastic Head Stainless Steel Cable Protection Door Loop Materials: Stainless Steel
Dimension: 400mm Diameter: 20mm
Head Material: ABS Plastic Inside Diameter: 17mm
Mounting: Surface Function: Wire Protection

Product Description

Stainless Steel Door Loop Cable Protector ABS Head 400mm Armored Gooseneck For Security Systems





Model: JS-403C



Stainless Steel Door Loop Cable Protector ABS Head 400mm Armored Gooseneck For Security Systems 0







JS-403C Armored Cable Door Loop — A 400mm flexible stainless steel wire protector designed to safely route cables between door frames and moving doors or gates. Built with corrosion-resistant 304 stainless steel and durable ABS plastic mounting heads, it shields wires from tampering, abrasion, and environmental damage. Ideal for access control, electric locks, and security system installations. Surface mount with simple screw fixation — no special tools required. CE/FCC certified. OEM/ODM available.







Parameters:



Model JS-403C
Colour Metal
Material 304 stainless steel
Head Material ABS Plastic
Dimension 400mm
Diameter 20mm
Inside Diameter 17mm







Feature:



✓ Stainless steel construction with specialized coatings for superior rust/corrosion resistance and durability

✓ Armored design effectively shields wires/cables from tampering and environmental damage

✓ Simple screw-based installation - no complex tools required for easy setup

✓ Flexible gooseneck enables seamless wire routing without risk of abrasion or conductor damage

✓ Versatile for diverse door-integrated systems like access control, security, networking, and more

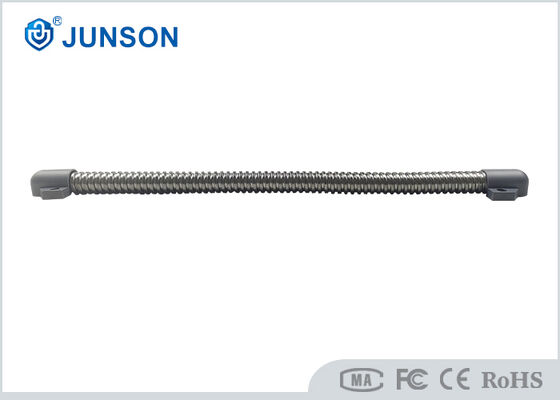

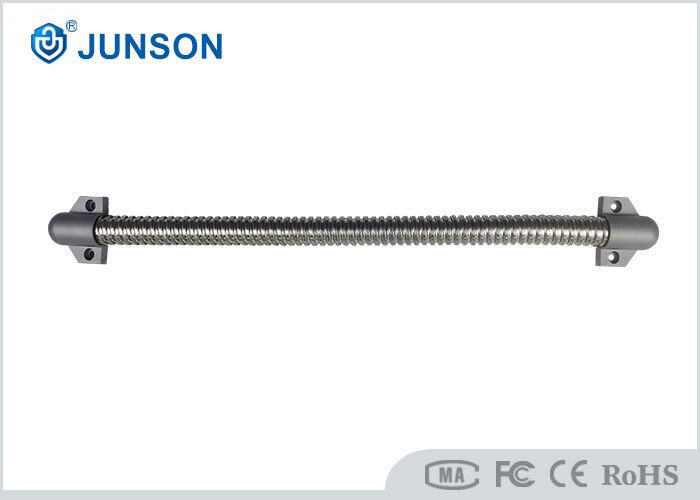

Photos:



Stainless Steel Door Loop Cable Protector ABS Head 400mm Armored Gooseneck For Security Systems 1



Stainless Steel Door Loop Cable Protector ABS Head 400mm Armored Gooseneck For Security Systems 2

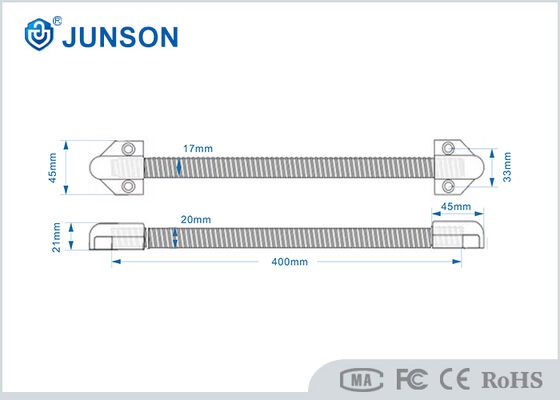

Dimensions of door loop:



Stainless Steel Door Loop Cable Protector ABS Head 400mm Armored Gooseneck For Security Systems 3









Installation Diagram:





Stainless Steel Door Loop Cable Protector ABS Head 400mm Armored Gooseneck For Security Systems 4











FAQ:



Q1: What is a cable door loop used for?
A: It provides a protected, flexible path for wires between a fixed frame and a moving door or gate. Commonly used in access control systems, electric strikes, magnetic locks, and security door setups to prevent cable damage from repeated opening/closing.

Q2: What size wires can fit inside?
A: The inner diameter is 17mm, accommodating most low-voltage cables used in access control, including power lines, door sensors, and reader cables.

Q3: Is this suitable for outdoor use?
A: The 304 stainless steel body offers excellent rust and corrosion resistance, making it suitable for both indoor and outdoor installations. However, for extreme weather exposure, additional sealing at the entry points is recommended.

Q4: How is it mounted?
A: Surface mount via screw holes on the ABS plastic heads. No specialized tools required — standard screws and a screwdriver are sufficient.

Q5: Can the door loop be bent or adjusted?
A: Yes, the flexible gooseneck design allows you to bend and shape it to fit your door geometry without damaging internal wires or compromising the armored protection.

Q6: What door types does this work with?
A: It works with most standard swing doors, security doors, and gates where a protected cable run is needed between the frame and the moving leaf.

Q7: Is this compatible with all access control brands?
A: Yes, it is brand-agnostic. It simply protects the physical cable run and does not interfere with electronic signals.

Q8: Do you offer other lengths or custom sizes?
A: Yes, we support OEM/ODM and can customize length, diameter, head material/color, and branding. Contact us for bulk or custom orders.

Q9: What certifications does this product have?
A: CE and FCC certified. RoHS compliant materials.

Q10: What is the warranty?
A: We offer a 2-year quality guarantee on all products.
