JS-K6903-K Standalone IP67 Waterproof Access Control Metal Keypad Anti-Vandal EM Mifare Wiegand 3000 Users
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Junson |
| Certification: | CE, RoHS |
| Model Number: | JS-K6903-K |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade corrugated carton with shock-proof foam insert |
| Delivery Time: | 3-7 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,PayPal,Western Union |
| Supply Ability: | 20000 Pieces per Month |
|
Detail Information |
|||
| Model: | JS-K6903-K | Operating Voltage: | DC 10-24V |
|---|---|---|---|
| Operating Temperature: | -40°C To 60°C (-40°F To 140°F) | Dimension: | 115 X 76 X 25 Mm (L X W X H) |
| Waterproof Rating: | IP67 | Housing Material: | Metal Case (anti-vandal, Anti-explosion) |
| User Capacity: | 3000 Users + 5 Visitor Users | Card Type: | 125KHz EM / 13.56MHz Mifare |
| Wiegand Input/Output: | 26-44 Bit / 47 / 56 / 58 / 64 / 66 Bit | PIN Output: | 4 Bit / 8 Bit / Virtual Card Number |
| Working Modes: | Pulse Mode / Toggle Mode | Door Interlock: | 2 Devices Interlocked For 2 Doors |
| Card Management: | Admin Add/delete Cards, Block Enrollment With Sequentially Numbered Cards, Data Transfer & Copy To Other Devices | Opening Methods: | Card, PIN, Multi-user Open |
| Highlight: | IP67 waterproof access control keypad,metal keypad RFID access system,Mifare Wiegand anti-vandal keypad |
||
Product Description

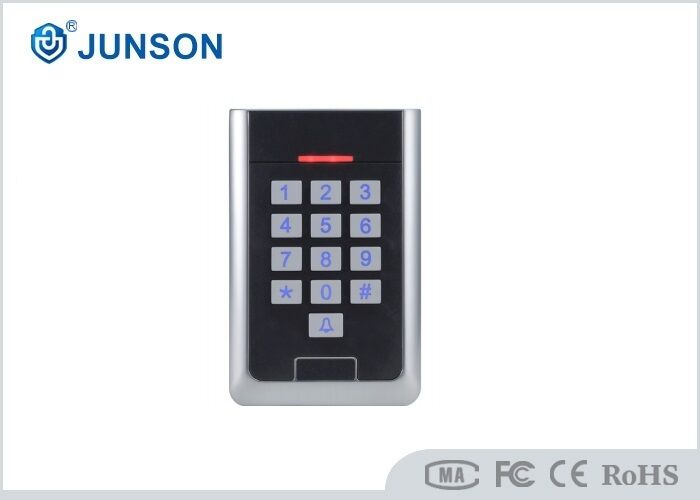

JS-K6903-K Standalone Waterproof Access Control with Anti-Vandal Metal Keypad
The JS-K6903-K is a standalone access controller with a rugged metal case, designed for outdoor and high-security applications. Anti-vandal, anti-explosion and fully waterproof to IP67, it delivers reliable card and PIN access control in the harshest environments.
Key Features
- Metal Case & IP67 Waterproof - anti-vandal, anti-explosion housing, conforms to IP67 waterproof rating
- 3000 User Capacity - plus 5 temporary visitor users, with multi-user open mode
- Rapid Card Management - admin can add/delete admin cards directly, making card add/delete rapid and simple
- Data Transfer & Copy - user data can be transferred and copied into other devices for quick deployment
- Block Enrollment - supports block enrollment with cards sequentially numbered
- 2-Door Interlock - 2 devices can be interlocked to control 2 doors
- Flexible Output Modes - Pulse Mode and Toggle Mode for different lock requirements
- Wide Wiegand Compatibility - Wiegand 26-44 bit / 47 / 56 / 58 / 64 / 66 bit input/output; PIN output 4 bit / 8 bit / virtual card number
- Multi-Card Support - 125KHz EM and 13.56MHz Mifare cards
- Wide Voltage & Temperature Range - DC 10-24V, -40°C to 60°C (-40°F to 140°F)
Specifications
| Model | JS-K6903-K |
| Operating Voltage | DC 10-24V |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Dimensions | 115 x 76 x 25 mm (L x W x H) |
| Waterproof Rating | IP67 |
| Housing Material | Metal case (anti-vandal, anti-explosion) |
| User Capacity | 3000 users + 5 visitor users |
| Card Type | 125KHz EM / 13.56MHz Mifare |
| Wiegand Input/Output | 26-44 bit / 47 / 56 / 58 / 64 / 66 bit |
| PIN Output | 4 bit / 8 bit / virtual card number |
| Working Modes | Pulse Mode / Toggle Mode |
| Door Interlock | 2 devices interlocked for 2 doors |
| Opening Methods | Card, PIN, multi-user open |
| Card Management | Admin add/delete cards; block enrollment with sequentially numbered cards |
| Data Management | User data transfer and copy to other devices |
Applications
Ideal for outdoor gates, factories, warehouses, residential communities, parking areas and high-security sites requiring rugged, waterproof standalone access control.
FAQ:
- Q: Are you a manufacturer?
A: Yes, we are a factory specializing in access control since 2004. - Q: Do you support OEM/ODM?
A: Yes, custom logo, packaging and card configuration are available. - Q: Where is your factory?
A: Shenzhen, China. - Q: Do you provide after-sales support?
A: Yes, online technical support. - Q: Can I get a sample?
A: Yes, samples are available.
