JS-K6903 Standalone Waterproof Access Control Zinc Alloy Keypad EM Mifare Wiegand 3000 Users
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Junson |
| Model Number: | JS-K6903 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade corrugated carton with shock-proof foam insert |
| Delivery Time: | 3-7 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,PayPal,Western Union |
| Supply Ability: | 20000 Pieces per Month |
|
Detail Information |
|||
| Model: | JS-K6903 (EM / Mifare / EM+Mifare / EM+HID Optional) | Housing Material: | Zinc Alloy (anti-vandal, Anti-explosion) |
|---|---|---|---|
| Waterproof Rating: | Waterproof | Card Type: | EM 125KHz / Mifare 13.56MHz / EM+Mifare / EM+HID |
| User Capacity: | 3000 Users + 5 Visitor Users | Dimension: | 115 X 76 X 25 Mm |
| Operating Voltage: | DC 10-24V | Current: | 150mA Max (open), 45mA Max (static) |
| Reading Distance: | 3-8cm | Wiegand Output: | Built-in Wiegand 26-44 Bits Input/output |
| Operating Temperature: | -40°C To 60°C | Operating Humidity: | 10-95% |
| Door Relay Time: | 1-99 Seconds Adjustable | Weight: | 0.40kg Net / 0.47kg Gross |
| Keypad: | Back-lit Metal Key Buttons | Special Features: | 2-door Interlock, Data Backup & Copy, Card Data Upload/download |
| Highlight: | waterproof RFID access control keypad,zinc alloy EM Mifare keypad,standalone Wiegand access control system |
||
Product Description

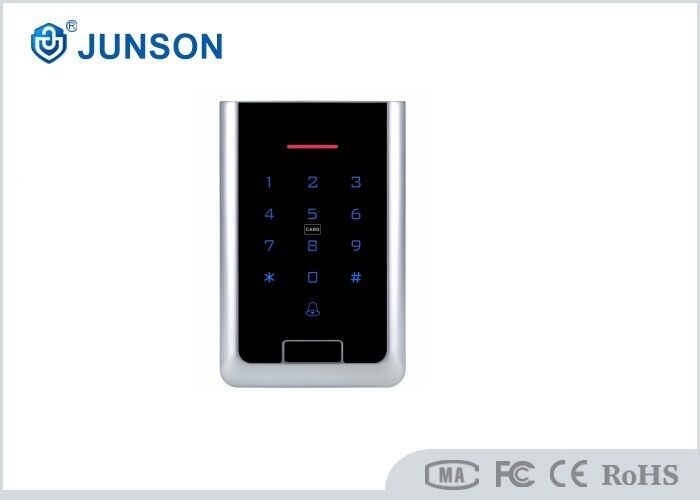

JS-K6903 Standalone Waterproof Access Control with Metal Case
The JS-K6903 is a waterproof new generation metal touched keypad and card standalone access control with Zinc Alloy housing. Anti-explosion, anti-vandal and rugged design make it ideal for outdoor and high-security applications.
Key Features
- Waterproof & Zinc Alloy Housing - anti-vandal, anti-explosion, slim elegant and rugged design
- Multi-Card Support - EM 125KHz, Mifare 13.56MHz, EM+Mifare or EM+HID (optional)
- Wiegand Input/Output - built-in Wiegand 26-44 bits (up to 56/58 bits for Mifare); works standalone or as a reader with a control board
- 3000 User Capacity - plus 5 temporary visitor users, multi-user and card code opening modes
- Data Protection - data is protected after power failure and can be copied to other devices; supports card user data upload and download
- Back-lit Metal Keypad - back highlight metal key buttons for night use
- 2-Door Interlock - device can be interlocked for 2 doors
- Wide Voltage & Temperature - DC 10-24V, -40°C to 60°C operating range
Specifications
| Dimension | 115 x 76 x 25 mm |
| Waterproof Rate | Waterproof |
| Material | Zinc Alloy Housing |
| Voltage | DC 10-24V |
| Current | Open max 150mA, static max 45mA |
| Reading Distance | 3-8cm |
| Wiegand Output | Built-in Wiegand 26-44 bits (Mifare up to 56/58 bits) |
| Card Type | EM or Mifare or EM+Mifare or EM+HID |
| Card Frequency | 125KHz or 13.56MHz or dual frequency |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 10-95% |
| Door Relay Time | 1-99 seconds adjustable |
| Capacity | 3000 users + 5 visitor users |
| Net Weight | 0.40kg (gross 0.47kg) |
Wire Definition
| NC | Orange | Relay NC |
| COM | Purple | Relay COM |
| NO | Blue | Relay NO |
| GND | Black | Negative pole |
| DC+ | Red | Positive pole |
| OPEN | Yellow | Exit button |
| D_IN | Brown | Door contact |
| ALARM- | Grey | External alarm negative pole |
| D0 | Green | Wiegand data 0 |
| D1 | White | Wiegand data 1 |
Applications
Ideal for outdoor gates, office buildings, factories, warehouses, residential communities and high-security areas requiring rugged waterproof access control.
