JS-K6909-S Waterproof RFID Access Control Reader IP67 EM 125KHz Mifare 13.56MHz DC10-24V

JS-K6909-S Waterproof RFID Access Control Reader

The JS-K6909-S is a fully waterproof (IP67) RFID access control reader with an ABS plastic case, engineered for reliable door access in indoor and outdoor environments. It supports EM 125KHz, Mifare 13.56MHz and combined EM+Mifare card reading for maximum flexibility.

Key Features

• IP67 Waterproof Rating - fully sealed ABS housing withstands rain, dust and harsh outdoor conditions
• Multi-Card Support - reads EM 125KHz, Mifare 13.56MHz or EM+Mifare combo cards (optional)
• 3000 User Capacity - large user database plus 5 visitor users for flexible access management
• Rapid Card Management - admin card can add/delete cards quickly, supporting block enrollment with sequentially numbered cards
• Multi-User Open Mode - door can be opened by multi-user verification for high-security areas
• Pulse and Toggle Modes - configurable output modes to suit different door controllers
• Wide Voltage Range - operates on DC 10V-24V for broad compatibility with access control systems
• Wide Temperature Range - works from -40°C to 60°C for extreme climate installations

Specifications

Applications

Ideal for office buildings, hotels, factories, warehouses, residential communities and outdoor gate access control systems.

FAQ

• Q: What card types does the JS-K6909-S support?
  A: It supports EM 125KHz cards, Mifare 13.56MHz cards, or combined EM+Mifare reading (optional), giving you full flexibility for different access control systems.
• Q: Is the reader waterproof?
  A: Yes. The ABS housing is fully sealed and conforms to IP67, making it suitable for outdoor and humid environments.
• Q: What is the operating voltage?
  A: It works with a wide voltage range of DC 10V-24V, compatible with most access control power supplies.
• Q: How many users can it store?
  A: Up to 3000 regular users plus 5 visitor users, with rapid add/delete card management via admin card.
• Q: What is the reading distance?
  A: The reading distance depends on the card type and environment; typical distance is 3-8cm for EM cards and 2-5cm for Mifare cards.
• Q: Can it work in extreme temperatures?
  A: Yes, it operates from -40°C to 60°C (-40°F to 140°F), suitable for harsh climate conditions.

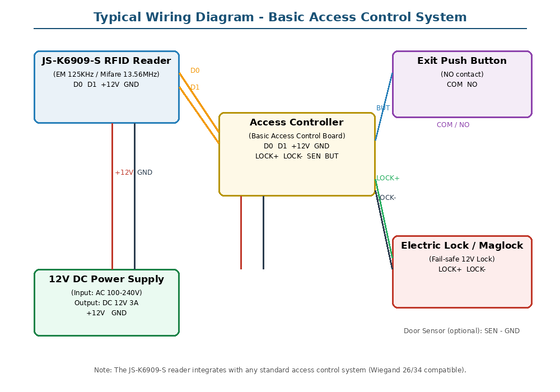

• Q: Can it integrate with existing access control systems?
  A: Yes. It supports Pulse Mode and Toggle Mode outputs and can be connected to most standard door controllers and access control panels.
• Q: What is the MOQ and delivery time?
  A: MOQ is 2 pieces. Stock items ship within 3-7 working days; production orders take 15-25 days. Contact us for details.
• Q: Do you support OEM/ODM?
  A: Yes, we offer OEM/ODM services including custom logo, packaging and card configuration. Please contact our sales team.
