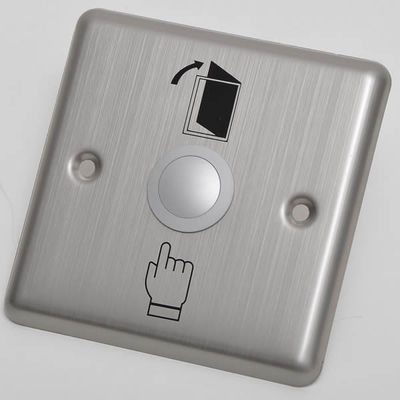

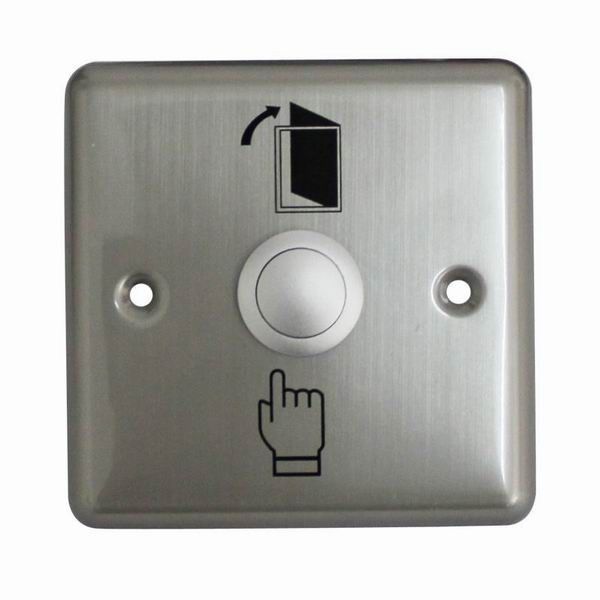

DC12V Emergency Door Release Button for Access Control Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE |
| Model Number: | JS-86S3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T,paypal or western Union in advance |
| Supply Ability: | 20,000pcs per month |
|
Detail Information |
|||
| Product Name: | Exit Button | Materials: | Pure Copper |
|---|---|---|---|
| Size: | 86*86mm | Voltage: | DC 12V |
| Application: | All Narrow Door Frame | Contact: | NO/NC/COM |
Product Description
Product Title
DC12V Emergency Exit Push Button for Access Control Systems
Product Description
The JUNSON DC12V Emergency Exit Push Button is a reliable door release solution designed for modern access control and security systems. Featuring a durable aluminum panel with a sandblasted finish, it offers excellent durability, long service life, and an elegant appearance suitable for both commercial and residential installations.
With NO/NC/COM contact outputs, this exit button is compatible with electromagnetic locks, electric strikes, electric bolt locks, and other access control devices. Its compact design and easy installation make it an ideal choice for offices, apartments, schools, hospitals, and other secure facilities.
Key Features
- Durable aluminum alloy panel with elegant sandblasted finish
- Supports NO / NC / COM contact outputs
- Rated at 3A @ 36V DC
- Long mechanical life with over 500,000 operating cycles
- Compact design for standard 86 × 86 mm wall mounting
- Includes mounting back box for quick and easy installation
- Compatible with electromagnetic locks, electric strikes, and access control systems
- Stable and reliable performance for daily operation
- Suitable for commercial, industrial, and residential security applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | — |
| Dimensions | 86 × 86 mm |
| Panel Material | Aluminum Alloy |
| Button Material | Pure Copper with Nickel Plating |
| Panel Thickness | 2 mm |
| Finish | Sandblasted |
| Contact Output | NO / NC / COM |
| Contact Rating | 3A @ 36V DC Max |
| Mechanical Life | 500,000 Cycles |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0–95% RH (Non-condensing) |
| Weight | 0.15 kg |
Applications
Ideal for use with:
- Access Control Systems
- Electromagnetic Locks
- Electric Strike Locks
- Electric Bolt Locks
- Office Buildings
- Apartment Complexes
- Schools
- Hospitals
- Commercial Facilities
Quality Guarantee
At JUNSON, quality is our commitment. All products undergo strict quality inspections before shipment to ensure reliable performance and long-term durability.
We provide a 3-year limited warranty on eligible products against manufacturing defects under normal use. Our professional technical support team is available to assist with installation, troubleshooting, and after-sales service whenever needed.
Our Product Range
JUNSON specializes in manufacturing professional access control and security products, including:
- Electromagnetic Locks
- Electric Bolt Locks
- Electric Strike Locks
- Access Control Systems
- RFID Card Readers
- Fingerprint Access Controllers
- Smart Door Locks
- Hotel Door Lock Systems
- Exit Push Buttons
- Panic Bars & Exit Devices
- Door Lock Brackets
- Electromagnetic Door Holders
