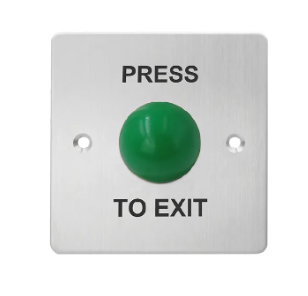

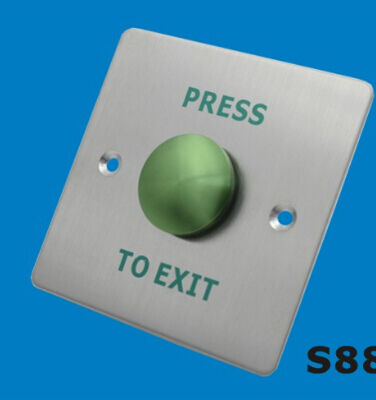

86mm Square Stainless Steel Panel Emergency Exit Push Button Switch For Access Control Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE |
| Model Number: | JS-S812 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T,paypal or western Union in advance |
| Supply Ability: | 20,000pcs per month |
|
Detail Information |
|||
| Model Number: | JS-S812 | Material: | Stainless Steel |
|---|---|---|---|
| Dimensions: | 86*86*20mm | Input Voltage: | DC12V |
| Output Contact: | NO\NC\COM | Weight: | 0.15kg |
| Thickness Of Materiasl: | 2mm | ||
Product Description
86mm Stainless Steel Panel Emergency Exit Push Button Switch For Access Control Systems
304 Stainless Steel Mushroom Push Exit Button
Model:JS-S812
The JS-S812 Emergency Exit Push Button is engineered for access control systems, featuring a 304 stainless steel brushed faceplate paired with a prominent mushroom-head button (available in green or red). It is widely deployed in automatic doors, glass doors, fire escape routes, and industrial facilities for emergency egress control.
Specifications:
| Dimension | 86×86×20 mm (standard 86-type) |
| Materials | 304 stainless steel |
| Faceplate Thickness | 2mm |
| Button Type | Mushroom head (large press area) |
| Finishing | Sandblast finishing |
| Input Voltage | 12VDC |
| Contact interface | NO (Normally Open) / NC (Normally Closed) / COM |
| Mechanical life | ≥ 500,000 cycles |
| Operating Temperature | -10℃ - 55℃ |
| Suitable Humidity | 0-95% (non-condensing) |
| Unit Weight | 0.15kg |
| Cartons size: | 100 pcs per carton, carton size 51×24×47 cm |
Key Advantages:
✅ Oversized Mushroom Button — Larger press surface for quick identification and operation during emergencies, ideal for high-traffic environments.
✅ Dual Color Options — Green (standard exit) / Red (emergency alert), adaptable to diverse application requirements.
✅ 304 Stainless Steel Faceplate — 2mm thick brushed stainless steel construction offers vandal resistance, corrosion protection, and scratch resistance.
✅ Standard 86-Type Dimensions — Popular European market specification with strong compatibility and easy retrofit installation.
✅ Multiple Size Variants — Beyond 86×86mm, also available in 115×70mm, 115×40mm, and 86×50mm to fit narrow door frames and recessed electrical boxes.
✅ Premium Micro-Switch — Supports NO/NC/COM output configurations, compatible with electromagnetic locks, electric bolt locks, and automatic door controllers.
✅ Color-Coded Wiring — Clearly distinguished wire colors simplify installation and reduce wiring errors.
✅ Extended Warranty — 3-year warranty backed by a dedicated after-sales support team.
Photos:
Typical Applications:
-
🏢 Office Buildings / Commercial Centers
-
🏭 Factory Floors / Warehouse Facilities
-
🏥 Hospitals / Clean Room Environments
-
🏫 Schools / Public Libraries
-
🚇 Metro Stations / Transportation Hubs
-
🔥 Fire Escape Routes / Emergency Exits
