Waterproof Plastic RFID Card Reader, 125khz Or 13.56mHz Optional
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-R2016 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton. |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Model: | JS-R2016 | Dimension: | 84 * 42 * 16mm |
|---|---|---|---|
| Color: | Black | Frequency: | 125khz Or 13.56mHz, Optional |
| Communication: | Wg26 Bit, 34bits | Weight: | 0.2kg |
Product Description

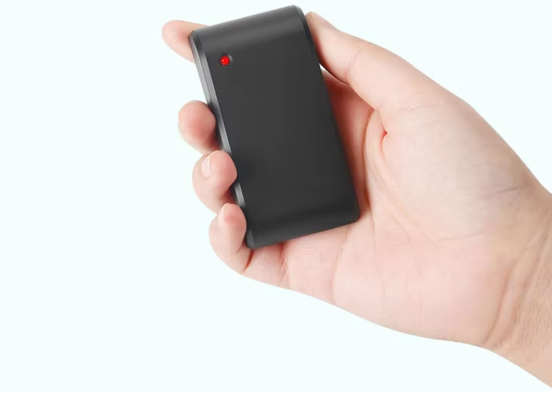

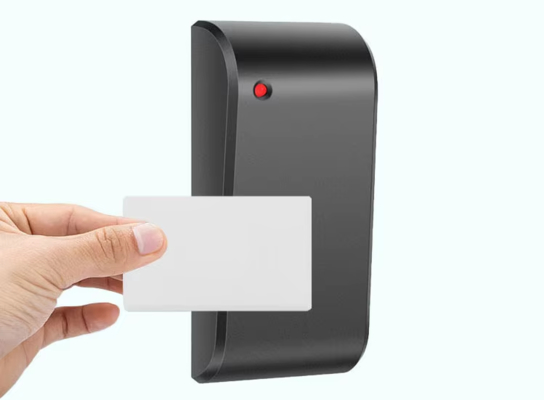

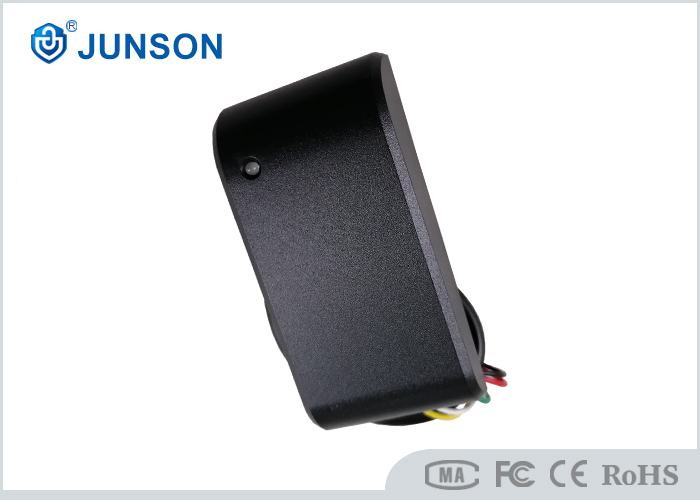

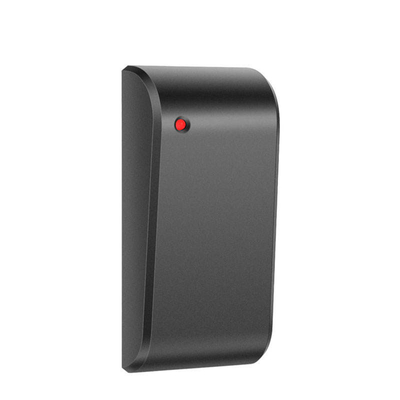

Waterproof Plastic RFID Card Reader, 125khz Or 13.56mHz Optional
RFID Card reader
Model:JS-R2016
The JS-R2016 RFID Card Reader is a state-of-the-art solution for secure access control. Constructed from robust ABS plastic, it features an IP67 waterproof rating, ensuring durability in various conditions. This reader supports both 125 kHz EM and 13.56 MHz Mifare cards, providing versatility for multiple applications. Its adaptable Wiegand output allows for easy integration with current systems, making it a vital component for effective security management.
Parameters:
| Model | JS-R2016 |
| Dimension | 84 * 42 * 16mm |
| Color | Black |
| Operation voltage | 10-24V DC |
| Standby current | <500mA |
| Frequency | 125khz or 13.56mHz, optional |
| Card type: | ISO/IEC14443A |
| Read Range | 5-8cm for cards, Phone: 1-5CM |
| Communication | Wg26 bit, 34bits |
| 2 LED | Red -- Green |
| Temperature | -10°~60°C |
| Humidity | 20%-80% |
| Standard Packing | 100pcs |
| Cartons size | 51L * 45W * 35H (cm) |
| Weight | 0.2kg |
Features:
1. ABS plastic housing
2. Waterproof, Conforms to IP67
3. Support 125 KHz EM or 13.56MHz Mifare or EM & Mifare card
4. Wiegand 26 - 44 bit/ 47/ 56 / 58/ 64/ 66 bit output
Product Description:
Wiring Diagram:
FAQ:
1.Q: Are you a manufacturer?
A: Yes, our company has over 15 years of professional experience in Electric locks and access control items.
2.Q: How do I get samples?
A: We must receive your sample payment and shipping before we can send the samples to you. After the customer confirms the order, we will reduce the sample cost. However, if you are our frequent customer, we can send the sample to you and then deduct it from your account in the next transaction.
3.Q: How to make an OEM order?
A: 1. After communication, the buyer and the seller reach an agreement on product details, packaging, purchase quantity, unit price, delivery terms and payment terms.
2. The buyer sends a formal PO (purchase order) or the seller sends a formal PI (performance invoice) with detailed terms and conditions.
4.Q: What are your payment terms?
A: For samples: small batch orders or urgent orders, you can choose TT, PayPal,etc.. 100% payment before shipment; For bulk orders: 30%/50% of T/T as deposit, The balance before shipment.
5.Q: How long is your delivery time?
A: For example: usually 3-7 working days after receiving your 100% payment. For bulk orders: 15-35 working days after receiving the deposit.
6.Q: How about the warranty?
A: We can provide 1 year warranty.
