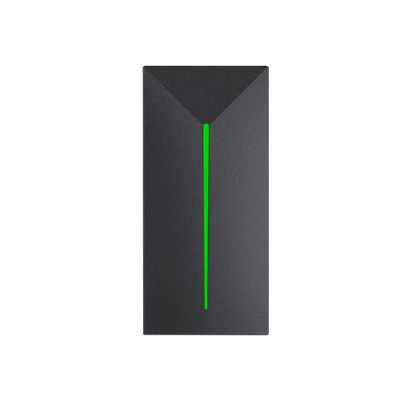

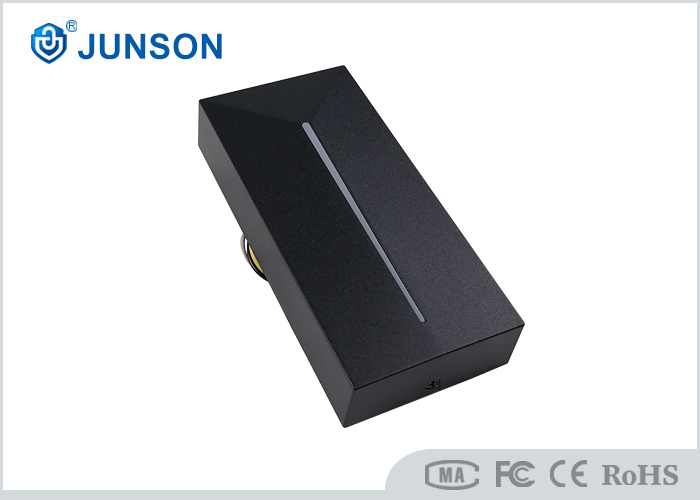

IP67 Waterproof 125khz 13.56mhz Dual Frequency Smart Wiegand 26/34bits Card Reader
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-R2014D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Model: | JS-R2014D | Dimension: | 110 * 50 *22mm |
|---|---|---|---|
| Color: | Black | Frequency: | 125khz Or 13.56mHz, Optional |
| Read Range: | 5-8cm For Cards, Phone: 1-5CM | Weight: | 0.2kg |
Product Description
IP67 Waterproof 125khz 13.56mhz Dual Frequency Smart Wiegand 26/34bits Card Reader
Waterproof IP67 Mini EM/Mifare Reader
Model:JS-R2014D
RFID Card reader is special device for access control system, Compatible with most access control systems, it integrates effortlessly, turning complex security management into a task you barely need to think about. RFID reader have 125Khz or 13.5mhz, two types frequency.
Features:
| Model | JS-R2014D |
| Dimension | 110 * 50 *22mm |
| Color | Black |
| Operation voltage | 10-24V DC |
| Standby current | <500mA |
| Frequency | 125khz or 13.56mHz, optional |
| Card type: | ISO/IEC14443A |
| Read Range | 5-8cm for cards, Phone: 1-5CM |
| Communication | Wg26 bit, 34bits |
| 2 LED | Red -- Green |
| Temperature | -10°~60°C |
| Humidity | 20%-80% |
| Standard Packing | 100pcs |
| Cartons size | 51L * 45W * 35H (cm) |
| Weight | 0.2kg |
Features:
1. ABS plastic housing
2. Waterproof, Conforms to IP67
3. Support 125 KHz EM or 13.56MHz Mifare or EM & Mifare card
4. Wiegand 26 - 44 bit/ 47/ 56 / 58/ 64/ 66 bit output
Product Details:
FAQ:
Q1: Is there stock for your products?
A. There is stock for different products in different periods. Please tell us what products you need, then we will check the stock for the products you need.
Q2: Do you offer samples?
A. Yes, Samples is necessary for testing before purchasing. So we support sample order.
Q3: Can Do OEM and LOGO brand ?
A. Yes ,We are factory and we support OEM , you can tell me the details requirement and we will make the calculate and make the exactly quotation
Q4: What shipping way is adopted? What is the lead time?
A. By Express, Air, Sea.Depends on clients' specific requirements and order quantity. Generally, the shipping time is 3-5 working days if have stock here .The production time is different indifferent periods for different orders. Please consult us according to your specific requirements of your order.
