Secure Your Smoke Proof Doors with Our Dual Voltage 12/24V Floor Mount Electromagnetic Lock 60kg Holding Force
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE ROHS |
| Model Number: | JS-H900F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | 12pcs |
| Delivery Time: | 5-8DAYS |
| Payment Terms: | L/C, D/A, Western Union |
| Supply Ability: | 1000PCS/WEEK |
|
Detail Information |
|||
| Port: | Shenzhen | Armature Plate: | 180Lx42Wx13H(mm) |
|---|---|---|---|
| Z Brackect Size: | 190*70*60mm | Finishes For Shell: | Anodized Aluminum |
| Housing: | Stainless Steel | Door Status Sensor: | NO/Com (0.1A@30VDC) |
| Delay Timer: | 0,5,10,15 S | Power Supply: | SC12V |
| Working Life: | 500,000 Times | Installation: | Surface Mount |
| Unlock Way: | Power On/emergency Lever/signal | Bracket Optional: | ZL/L/Z/U Bracket |
| Armature Plate Size: | 185Lx60Wx13H(mm) | Security Type: | Power Off To Open |
| Suitable Humidity: | 0~90%(non-condensing) | ||
Product Description
Floor Mount Electromagnetic door holder Dual Voltage 12/24V
Model: JS-H900F
Specifications:
| Dimension | 103 L * 76W * 105H mm |
| Armature plate size: | 65L*65W*42H mm |
| Magnet plate size: | Dia 55mm |
| Holding force | 60kg 120lbs |
| Operation voltage | 24 V/ 12V DC by special order |
| Standby current | 120mA@12V, 60mA@24V |
| Materials of case | Zinc Alloy |
| Suitable for | All kinds of single & double smoke proof door |
| Finishes for Armature | Zinc plating |
| Color: | Black case, |
| Finish case: | Black Power Coated |
| Red button | Door release button, release door. |
| Surface temp. | <20℃ |
| Temperature | -10°~55°C |
| Humidity | 0~90% RH |
| Net Weight: | 1.25kg |
| Standard Packing: | 12pcs |
| Cartons size: | 41L * 28.5W * 26H (cm) |
| Grass Weight: | 15.5kg |
Features:
1 . Colinear load test 60kg, 120pounds.
| 2 .default voltage 24vdc(12V can be customized). |
| 3 . Mov provides reverse current protection. |
|
4 . Low power, environmental protection. 5. With door release button, press button to release door |
| 6 . Anti-residual magnetism design. |
| 7 . Professional design, dual insulative housing. |
| 8 . Automatically close the smoke proof door when fire happened |
| 9. Suitable for Floor installation or glass door |
| 10. Release lock when power off |

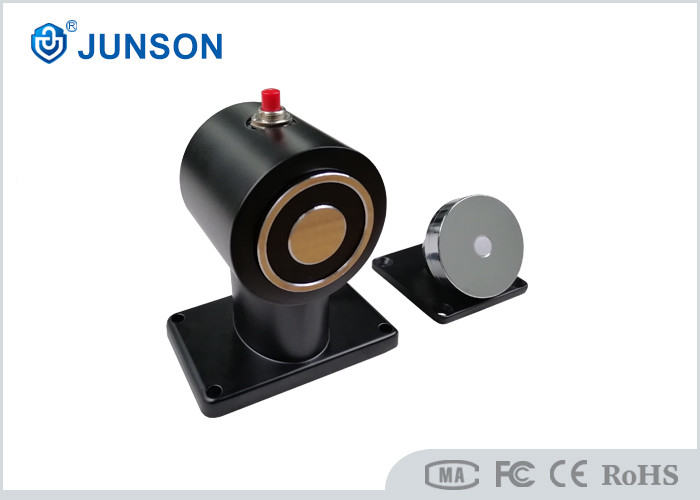

Photo of door holder:
