304 Stainless Steel Electromagnetic Door Holder with Manual Release Button for 12V/24V DC Operation
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/FCC |
| Model Number: | JS-H901 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T,paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Brand: | JUNSON | Dimension: | 114 L * 70W * 29H Mm |
|---|---|---|---|
| Magnet Plate Size: | Dia 55mm | Materials Of Case: | 304 Stainless Steel, Wire Draw Finishing |
| Finish Case: | Wire Draw Finishing | Sensor Feedbacksize: | NO/NC, For Control The Status Of Doors |
| Suitable For: | Glass Door | Release Mechanism: | Manual And Automatic Release |
| Working Humidity: | 0% To 95% | Working Voltage: | 12V Or 24V |
| Highlight: | 304 Stainless Steel Electromagnetic Door Holder,Manual Release Button Magnetic Door Catch,12V/24V DC Door Holder |
||
Product Description
Electromagnetic Door Holder - Wall Mount Stainless Steel Case
ANSI-compliant wall mount door holder with stainless steel case, featuring low power consumption for enhanced environmental sustainability and durability. Model JS-H901 includes manual release button and built-in protection features.
Technical Specifications
| Model | JS-H901 |
| Dimensions | 114mm L × 70mm W × 29mm H |
| Magnet Plate Size | 55mm diameter |
| Holding Force | 70kg (120 lbs) |
| Operating Voltage | 24V DC (12V DC available by special order) |
| Standby Current | 140mA @ 12V, 70mA @ 24V |
| Case Material | 304 Stainless Steel with wire draw finishing |
| Compatibility | All single & double smoke proof doors |
| Armature Finish | Zinc plating |
| Color | Silver |
| Surface Temperature | <20℃ |
| Operating Temperature | -10°C to 55°C |
| Humidity | 0-90% RH |
| Net Weight | 1.0kg |
| Standard Packing | 20 pieces per carton |
| Carton Dimensions | 60cm L × 35cm W × 16.5cm H |
| Gross Weight | 23kg |
Key Features
- Colinear load test certified: 70kg, 120 pounds holding capacity
- Default voltage 24V DC (12V adjustable option available)
- MOV provides reverse current protection
- Low power consumption for environmental protection
- Manual door release button for emergency operation
- Anti-residual magnetism design
- Professional dual insulative housing construction
- Automatically closes smoke proof doors during fire events
- Suitable for floor installation and glass door applications
- Fail-safe release when power is disconnected

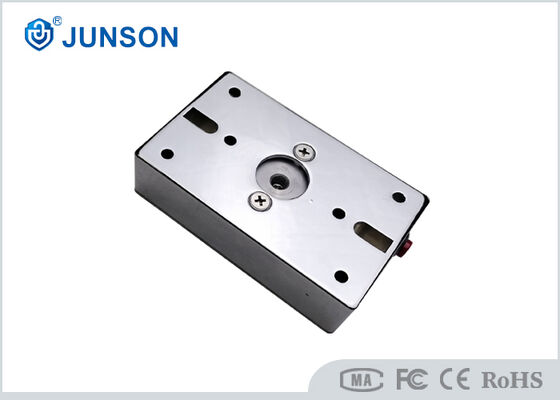

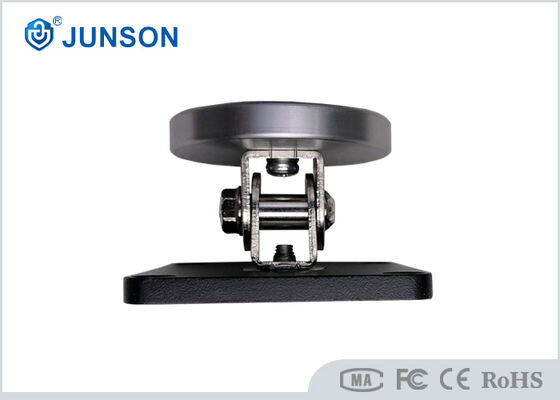

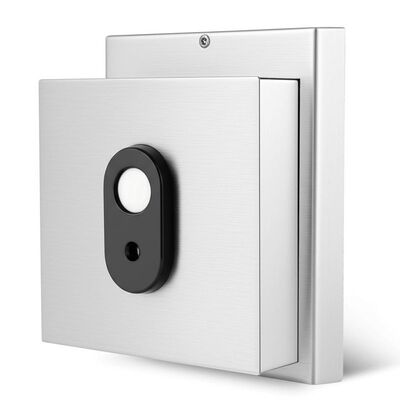

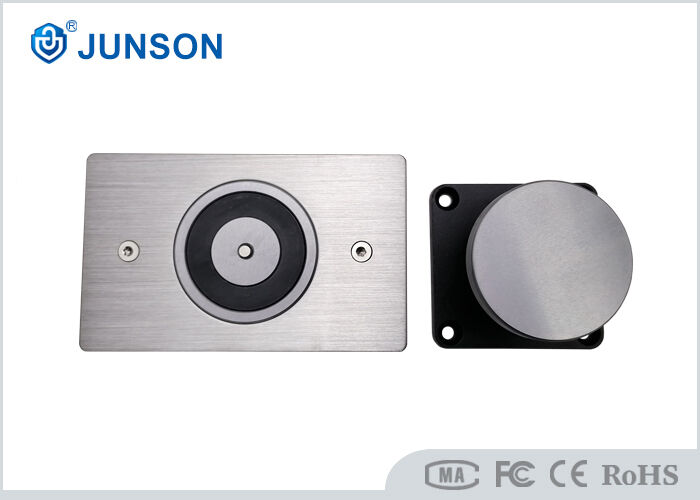

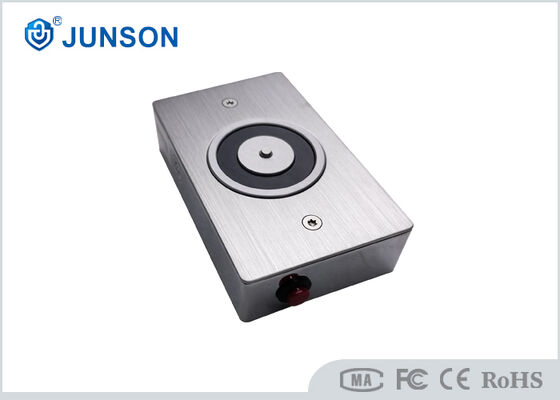

Product Images
Quality Control Process
Our dedicated quality control personnel conduct comprehensive inspections throughout the manufacturing process to ensure product excellence and reliability.
- All raw materials inspected upon arrival at our factory
- Comprehensive component, logo, and detail verification during production
- Packing specifications checked throughout manufacturing
- Final quality and packaging inspection before shipment
Note: Features manual release button for testing and emergency door release. Built-in MOV reverse current protection ensures device longevity and safety.
