Resetable Call Point With Led And Buzzer
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-903G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Output Contact: | DPDT/2NO/2NC/2COM | Power Supply: | DC12/24V,30mA |
|---|---|---|---|
| Size(mm): | 96.6L*91.5W*34.5H | Material: | ABS,PC(Cover Parts) |
| LED Indicator: | Default Green,Active Red | Buzzer: | Set To Silent Or Buzzer Continuously |
| Highlight: | Led Resetable Call Point,Resetable Call Point,Buzzer Resetable Call Point |
||
Product Description

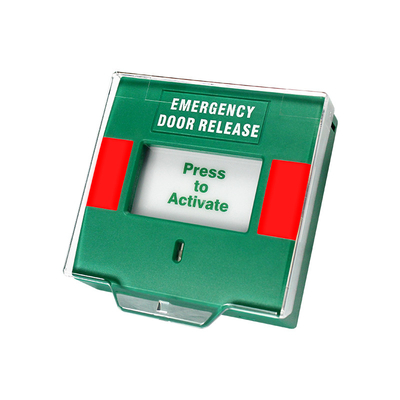

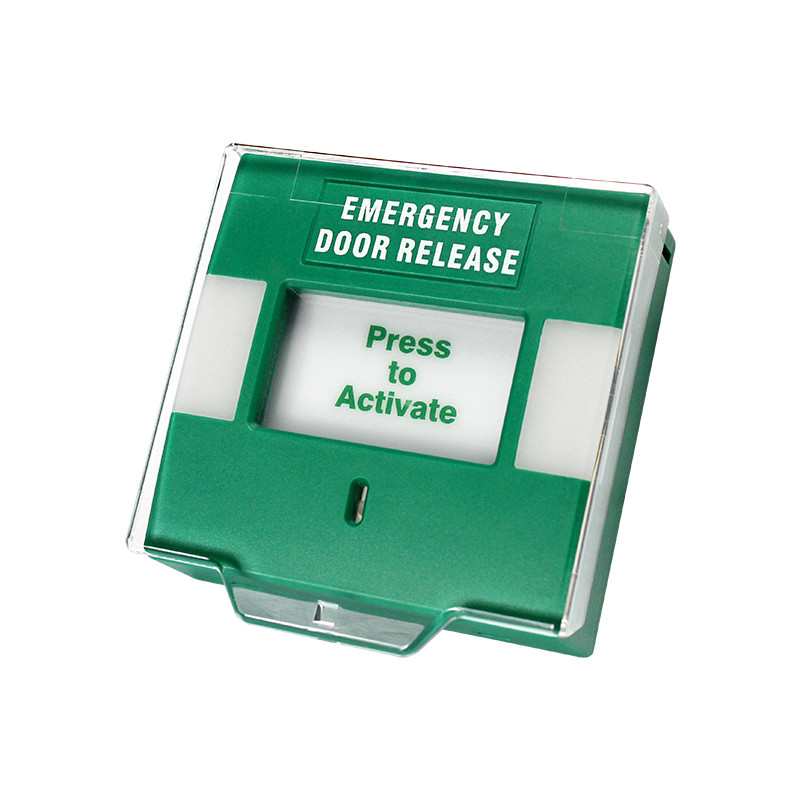

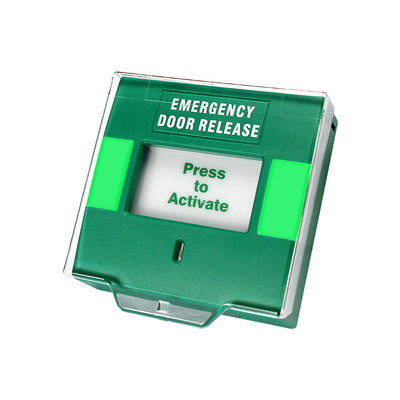

Resetable Call Point With Led And Buzzer
Model:JS-903G
Features:
※DPDT Resetable Call Point；
※2NO/2NC/2COM；
※DC 12/24V,30mA；
※ABS material,PC housing/Plastic pick.
|
View
|
Front
|
Side
|
Back
|
| Photos | |
|
|
Product Parameter:
| Model | JS-903G | Buzzer | Set to silent or buzzer continuously | |
| Output Contact | DPDT/2NO/2NC/2COM | Panel logo | Customizable | |
| Power Supply | DC12/24V,30mA | Mechanical Life | 500,000 Tested aging test qualified | |
| Size(mm) | 96.6L*91.5W*34.5H | Operating Temp | -20℃～+55℃(-4-131F) | |
| Material | ABS,PC(Cover parts) | Operating humidity | 0-95% (RH) | |
| LED Indicator | Default Green,Active Red | Package Quantity | 1 PCS/box, 100 PCS/ctn. |
Dimensions:

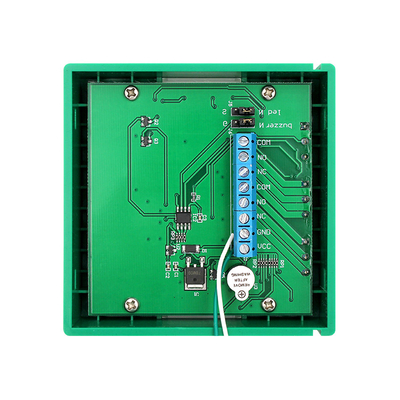

Wiring Instruction:
Installation:
FAQ:
Q: Are you trading company or manufacturer?
A: We are original factory.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.
Q:Where is your factory located? How can I visit it?
A:Our factory is located in Zhongshan City, about 1.5 hours from Guangzhou Airport by car.
