PC Case Exit Push Button White Color Touchless Door Release Button With Signal Output

PC Case Exit Push Button White Color Touchless Door Release Button With Signal Output

Product Details:

Place of Origin: China
Brand Name: Junson
Certification: CE/ROHS/FCC
Model Number: JS-H70PB

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 3-7days
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Dimensions: 115L*70W*14H Mm Working Life: 500,000 Use Tests
Installation Way: Surface Mount Time Delay System: 30-150mm Adjustable
Raw Material: PC Case & ABS Face Plate Weight: 0.094kg/pcs
Color: White Color
High Light:

Exit Push Button ABS Plate

,

signal output Exit Push Button

,

signal output touchless door release button

Product Description

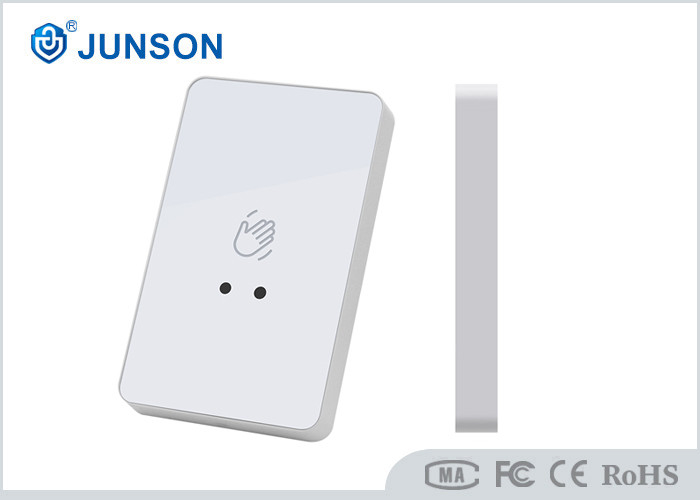

PC Case White color DC 12/24 No Touch Exit Door Release With signal output

Model:JS-H70PH





Data sheet



Product Size 115L*70W*14H mm
Operating Temperature Range -20℃~+55℃-4-131F)
Power Supply DC 12/24(V)
Working Humidity: 0-95%(non-condensing)
Signal Output NO/NC/COM
Sensitive Distance: 30-150mm Adjustable
LED Indicator Blue LED(Standby)Green LED(Active)
Working Life: 500,000 use test.
Installation Way: Surface Mount
Time delay system 0-30s (Adjustable)
Raw Material: PC case & ABS Face Plate
Weight: 0.094
Package Quantity: 100PCS/52*43*33cm/ctn





PC Case Exit Push Button White Color Touchless Door Release Button With Signal Output 0





Features:



1. Plastic panel, simple white, elegant style.


2. 500000 cycle test,Time delay 0-30s (Adjustable)



3. Dual contact signal output, suitable for all kinds of locks



4. The best choice for office access control system

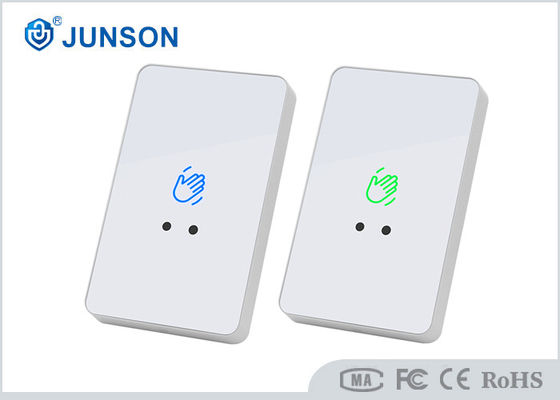

5. LED Indicator Blue LED(Standby)Green LED(Active)



6. CE and ROSH certification, safe and reliable





 Button Size:





PC Case Exit Push Button White Color Touchless Door Release Button With Signal Output 1







About the Door release.



This is an emergency door release that is used with electrical locking devices (i.e. electromagnetic lock or electric panic bar).

The Emergency Door Release is designed to override the electrical locking/release devices,

in the case of a loss of power to the emergency exits.
