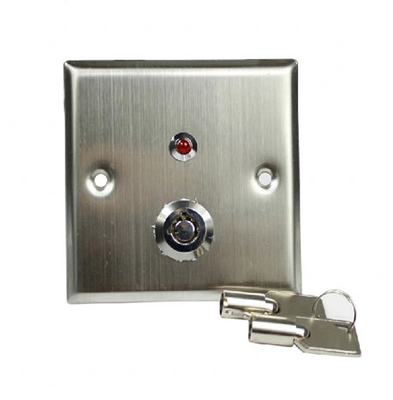

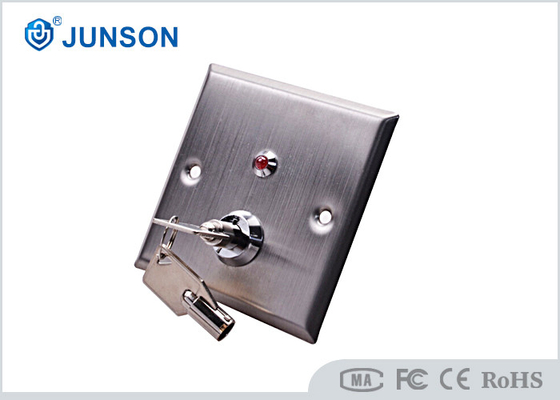

SS Panel Exit Push Button 3A DC12V Button Key Switch With LED
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE |
| Model Number: | JS-S86L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 20,000pcs per month |
|
Detail Information |
|||
| Product Name: | Key Switch | Materials: | Stainless Steel |
|---|---|---|---|
| Application: | All Narrow Door Frame | Contact: | NO/NC/COM |
| Size: | 86*86*20(mm) | Voltage: | DC12V |
| Current Rating: | 3A@36VDC | Weight: | 0.15/pcs |
| High Light: | SS Panel Exit Push Button,3A Exit Push Button,DC12V Button Key Switch |
||
Product Description
Model:JS-S86L
Specifications:
| Product Parameter | Parameter Description |
| Dimensions | 86Lx86Wx20H(mm) |
| Standard Structure | Stainless steel Panel, Steel Button |
| Current Rating | 3A@36VDC |
| Output Contact | NO/NC/COM |
| Mechanical Life | 500000 tested |
| Suitable for Door | All kind of narrow door frame |
| Operating temp | -10℃ - 55℃ |
| Operating Humidity | 0-95% (relative humidity) |
| Panel Material | Stainless steel Panel, Wire Drawing Finished |
| Weight |
0.15kg |
| Standard Packing | 100pcs/carton |
| Cartons size | 51L * 24W * 47H (cm) |
Features:
1.Stainless steel Panel with Elegant Style
2.500000 Cycles tests
3.Two Contact Output, Suitable for all kinds of Locks
4.The Best Choice for Access Control
5.Key Switch with LED type.
6.Current Rating 3A@36VDC
Door release usage scenario
Door release buttons are the most common and the frequently used in the access control systems.
They are often used in public authorities, banks, large, small and medium-sized enterprises,
department stores and residences.
