Electromagnetic Lock of Embedded Type 300Lbs for Metal /Glass / Fireproof door-JS-180H
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | JS-180H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Magnetic Lock | Surface Finishe Finish: | Anodized Aluminum |
|---|---|---|---|
| Current Draw: | 12V/480mA 24V/240mA | Armature Plating: | Zinc |
| Application: | Wooden Door, Metal Door, Fireproof Door | Holding Force: | 300lbs / 180kg |
| Power: | 12V Or 24V | Security Type: | Power Off To Open |
| Highlight: | magnetic security door locks,fail secure electromagnetic lock |
||
Product Description

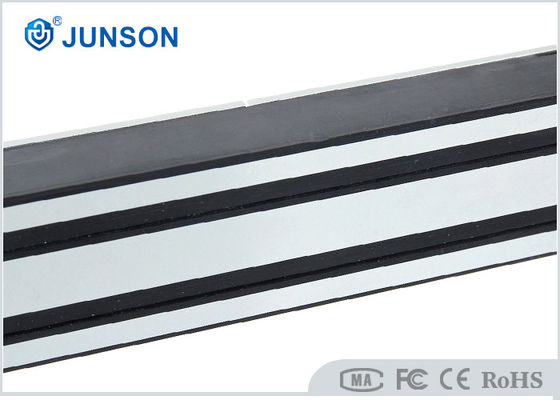

Electromagnetic Lock of Embedded Type 300Lbs for Metal /Glass / Fireproof door-JS-180H
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.
Specifications of lectromagnetic Lock of Embedded Type 300Lbs:
|
Lock Dimension: |
185Lx33Wx24H(mm) |
|
Armature plate dimension: |
130Lx33Wx12H(mm) |
|
Holding force |
180Kg (300lbs) |
|
Voltage : |
12 / 24V DC |
|
Current : |
12V/310mA 24V/160mA |
|
Signal output: |
Dry Contact |
|
Surface Temp: |
≦20℃ |
|
Operating Temp: |
-10℃ - 55℃ |
|
Suitable Humidity: |
0-90% (non-condensing) |
|
Finishing for lock and Armature |
Zinc |
|
Weight: |
1.2kg |
|
Standard Packing: |
10pcs |
|
Cartons size: |
40L * 28W * 18.2H (cm) |
Descriptions of lectromagnetic Lock of Embedded Type 300Lbs:
1. Fail safe, Power to lock
2. Collinear Load Test 180kg, 300pounds
3. Dual Voltage 12 or 24 VDC(optional)
4. The Standard Voltage is 12VDC when Finished
5. MOV Provides Reverse Current Protection
6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
7. High Strength Material(kasolite steel), Anodized Aluminum Housing
8. Design with no Mechanical Bolt,Stainless steel screws,more durable
9. Increase the holding Force, Dual Insulative Hosing
10. Blue zinc plating for the locks
11. 13mm thickness Armature plate,more streng holding force.
Advantage of magnetic lock
Junson is very competitive in electric locks industry for access control system. Comparing to other factories in China, we have some advantages as follow.
FAQ
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
