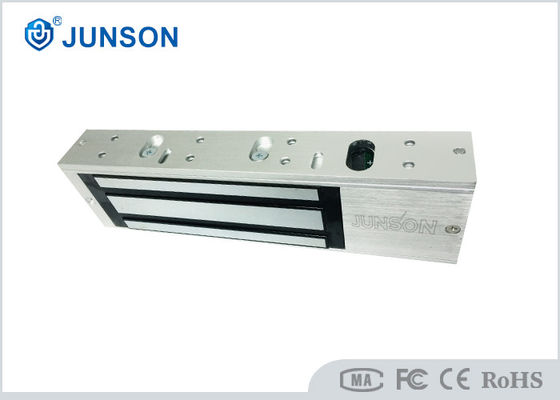

Holding Force 1200lb Electromagnetic Lock , single double door magnetic lock with LED-JS-500S
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/SGS/ROHS/FCC |
| Model Number: | JS-500S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T, PayPal or Western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Magnetic Lock | Holding Force: | 1200lbs / 500kg |
|---|---|---|---|
| Feature: | Fail Safe | Application: | Metal, Glass, Or Wooden Door |
| Power Supply: | 12V Or 24V | Signal Out: | NO, NC, Com |
| Finishes For Armature: | Zinc | Current Draw:: | 12V/420mA 24V/210mA |
| Highlight: | fail secure electromagnetic lock,magnetic security door locks |
||
Product Description
500kg 1200lbs Holding Force Electromagnetic Lock
Model:JS-500S
Junson magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.
Specifications of 1200lb Electromagnetic Lock:
Lock Dimension: | 265L * 75W * 38.8H (mm) |
Armature plate dimension: | 185L * 60W *13 H (mm) |
Holding force | 500Kg (1200lbs) |
Voltage : | 12 / 24V DC |
Current : | 12V / 500mA, 24V / 250mA |
Available bracket | JS-500U, JS-500ZL, JS-500L |
Signal output: | Dry Contact, NO, NC, Com |
Surface Temp: | ≦20℃ |
Operating Temp: | -10℃ - 55℃ |
Suitable Humidity: | 0-90% (non-condensing) |
Finishing for lock and Armature | Zinc |
Weight: | 4.5kg |
Standard Packing: | 4pcs |
Cartons size: | 30L * 20W * 16H (cm) |
Descriptions of 1200lb Electromagnetic Lock:
1. Fail safe, Power to lock
2. Collinear Load Test 500kg, 1200pounds
3. Dual Voltage 12 or 24 VDC(optional)
4. The Standard Voltage is 12VDC when Finished
5. MOV Provides Reverse Current Protection
6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
7. LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)
8. High Strength Material(kasolite steel), Anodized Aluminum Housing
9. Design with no Mechanical Bolt
10. Increase the holding Force, Dual Insulative Hosing
Product mounting bracket
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.
Advantage of magnetic lock
FAQ
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty
for relative products.
On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
