|Product Name:||Electromagnetic Lock||Armature Plate Finish:||Zinc|
|Current Draw:||12V/450mA 24V/240mA||Surface Finishing:||Anodized Aluminum|
|Application:||Wooden Door||Holding Force:||600lbs / 280kg|
|Feature:||Fail Safe||Power Supply:||12V Or 24V|
magnetic security door locks,
fail secure electromagnetic lock

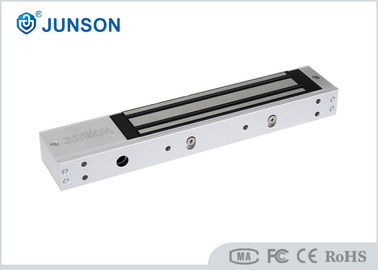

JS-280S single door magnetic lock is for glass door, wooden door, fireproof door, sliding door and metal door. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.

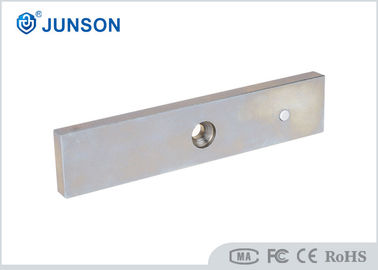

|Armature plate dimension:||180Lx38Wx13H(mm)|
|Holding force||280Kg (600lbs)|
|Voltage :||12 / 24V DC|
|Current :||12V/450mA 24V/240mA|
|Signal output:||Dry Contact||NO||NC||COM|
|Operating Temp:||-10℃ - 55℃|
|Suitable Humidity:||0-90% (non-condensing)|
|Finishing for lock and Armature||Zinc|
|Cartons size:||35L * 29W * 16H (cm)|
1. Fail safe, Power to lock
2. Collinear Load Test 280kg, 600pounds
3. Dual Voltage 12 or 24 VDC(optional)
4. The Standard Voltage is 12VDC when Finished
5. MOV Provides Reverse Current Protection
6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
7. LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)
8. High Strength Material(kasolite steel), Anodized Aluminum Housing
9. Design with no Mechanical Bolt
10. Increase the holding Force, Dual Insulative Hosing
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.
Junson magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.
Advantage of magnetic lock
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
