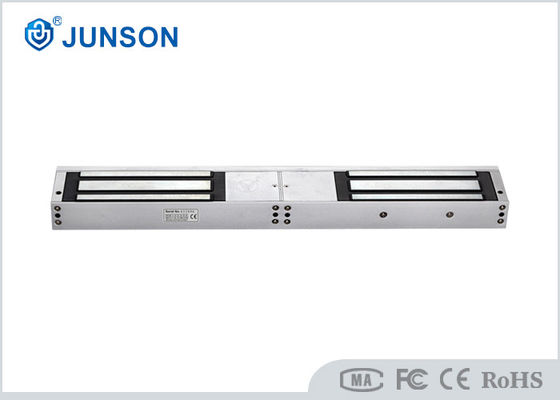

High Strength 1200Ibs Electromagnetic Lock Access Control System Signal Output-JS-500D

High Strength 1200Ibs Electromagnetic Lock Access Control System Signal Output-JS-500D

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC/SGS
Model Number: JS-500D

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Magnetic Lock Armature Plate Finish: Zinc
Current Draw: 12V / 400mA, 24V / 200mA Surface Finishing: Anodized Aluminum
Application: Wooden Door, Glass Door, Metal Door, Fireproof Door Holding Force: 500kg X 2 (1,200lbs X 2)
Feature: Fail Safe Voltage: 12/24V DC+10%
High Light:

door electromagnetic lock

,

fail secure electromagnetic lock

Product Description


Access Control Signal Output 500Kg/1200Ibs Double Door Electric Magnetic lock-JS-500D



High Strength 1200Ibs Electromagnetic Lock Access Control System Signal Output-JS-500D 0



Specifications of 1200Ibs Double Door Electric Magnetic lock:

Lock Dimension: 536L * 72W * 42H (mm)
Armature plate dimension: 185L * 60W *13H (mm)
Holding force 280Kg (600lbs)
Voltage : 12 / 24V DC
Current : 12V / 400mA, 24V / 200mA
Available bracket JS-280U, JS-280ZL, JS-280L
Signal output: Dry Contact, NO, NC, Com
Surface Temp: ≦20℃
Operating Temp: -10℃ - 55℃
Suitable Humidity: 0-90% (non-condensing)
Finishing for lock and Armature Zinc Alloy
Weight: 4kg
Standard Packing: 10pcs
Cartons size: 35L * 30W * 16H (cm)


Features of Electric Magnetic Locks:

  1. High-strength housing with aluminum anodizing finish.
  2. MOV surge protection.
  3. Dual voltages of 12V/24V.
  4. No residual magnetism.
  5. Very easy to operate: Instantly unlocked when power is off.
  6. No mechanical failure.
  7. Fail-safe, satisfy applicable fire regulations.


Descriptions of 1200Ibs Double Door Electric Magnetic lock:

1. Fail safe, Power to lock
2. Collinear Load Test 280kg, 600pounds
3. Dual Voltage 12 or 24 VDC(optional)
4. The Standard Voltage is 12VDC when Finished
5. MOV Provides Reverse Current Protection
6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
7. LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)
8. High Strength Material(kasolite steel), Anodized Aluminum Housing
9. Design with no Mechanical Bolt
10. Increase the holding Force, Dual Insulative Hosing

1200Lbs Double Door Magnetic Lock with LED magnetic lock With Lock Sensor -JS-280DS

The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.

Junson magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.


1200Lbs Double Door Magnetic Lock with LED magnetic lock With Lock Sensor -JS-280DS



High Strength 1200Ibs Electromagnetic Lock Access Control System Signal Output-JS-500D 3

High Strength 1200Ibs Electromagnetic Lock Access Control System Signal Output-JS-500D 4

FAQ

Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.


Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference


Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!

Quality Guarantee:


Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.

We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
