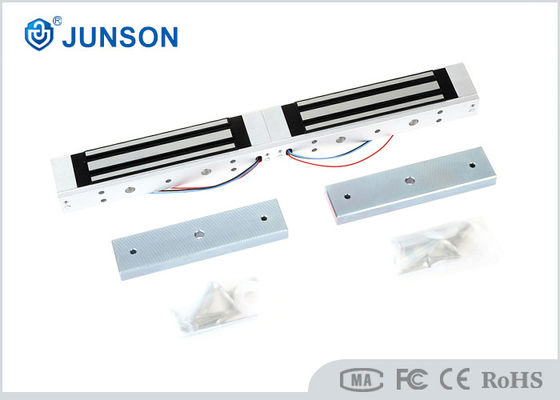

300LBSx2 Security Door Magnetic Lock With Anodized Aluminum Surface(JS-180D)
Product Details:
Place of Origin: | China |
Brand Name: | JUNSON |
Certification: | CE/ROHS/FCC/SGS |
Model Number: | JS-180D |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Packed in carton |
Delivery Time: | 2-7 working days after received your payment |
Payment Terms: | T/T, paypal or western Union in advance |
Supply Ability: | 30,000pcs per month |
Detail Information |
|||
Armature Plate Finish: | Zinc | Product Name: | Electromagnetic Lock |
---|---|---|---|
Surface Finishing: | Anodized Aluminum | Application: | Metal Or Wooden Door |
Holding Force: | 300lbs*2 / 180kg*2 | Feature: | Fail Safe |
Power Supply: | 12V Or 24V | Finishes For Magnetic: | Zinc |
Highlight: | door electromagnetic lock,fail secure electromagnetic lock |
Product Description
300LBSx2 Magnetic Security Door Locks With Anodized Aluminum Surface-JS-180D

Features of Electric Magnetic Locks:
- High-strength housing with aluminum anodizing finish.
- MOV surge protection.
- Dual voltages of 12V/24V.
- No residual magnetism.
- Very easy to operate: Instantly unlocked when power is off.
- No mechanical failure.
- Fail-safe, satisfy applicable fire regulations.
Specifications of 300LBSx2 Security Door Magnetic Lock:
Lock Dimension: |
340Lx40Wx21H(mm) |
Armature plate dimension: |
130Lx33Wx12H(mm) |
Holding force |
180Kg (300lbs)x2 |
Voltage : |
12 / 24V DC |
Current : |
12V/310mA 24V/160mA |
Available bracket |
JS-18U, JS-18ZL, JS-18L |
Signal output: |
Dry Contact |
Surface Temp: |
≦20℃ |
Operating Temp: |
-10℃ - 55℃ |
Suitable Humidity: |
0-90% (non-condensing) |
Finishing for lock and Armature |
Zinc |
Weight: |
2.4kg |
Standard Packing: |
20pcs |
Cartons size: |
40L * 28W * 18.2H (cm) |
Junson is very competitive in electric locks industry for access control system. Comparing to other factories in China, we have some advantages as follow.
Descriptions of 300LBSx2 Security Door Magnetic Lock:
1. Fail safe, Power to lock
2. Collinear Load Test 180kg, 300pounds
3. Dual Voltage 12 or 24 VDC(optional),the Standard Voltage is 12VDC when Finished
4. MOV Provides Reverse Current Protection
5. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
6. High Strength Material(kasolite steel), Anodized Aluminum Housing
7. Design with no Mechanical Bolt,Increase the holding Force, Dual Insulative Hosing
Advantage of magnetic lock
FAQ
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
