12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS

12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC/SGS
Model Number: JS-280DS

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Power Supply: 12V Or 24V Product Name: Magnetic Lock
Armature Plate Finish: Zinc Current Draw: 12V / 400mA, 24V / 200mA
Surface Finishing: Anodized Aluminum Application: Wooden Door, Glass Door, Metal Door, Fireproof Door
Holding Force: 600Lbs X 2 Feature: Fail Safe
High Light:

door electromagnetic lock

,

fail secure electromagnetic lock

Product Description

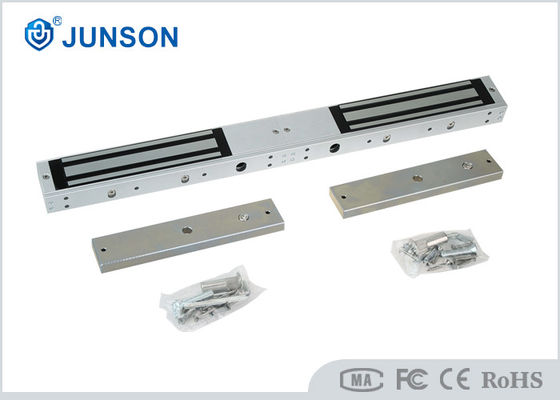

12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS



12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS 0

12V / 24V Double Door Electromagnetic Lock Weatherproof Maglock-JS-280DS





The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.



12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS 0





Description:



1. Fail safe, Power to lock

2. Collinear Load Test 280kg, 600pounds

3. Dual Voltage 12 or 24 VDC(optional)

4. The Standard Voltage is 12VDC when Finished

5. MOV Provides Reverse Current Protection

6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door

7. LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)

8. High Strength Material(kasolite steel), Anodized Aluminum Housing

9. Design with no Mechanical Bolt

10. Increase the holding Force, Dual Insulative Hosing

Specifications:



Lock Dimension:

500Lx49.5Wx27H(mm)

Armature plate dimension:

185Lx38Wx123H(mm)

Holding force

600Lbs x 2

Voltage :

12 / 24V  DC

Current :

12V/500mA 24V/250mA

Available bracket

JS-280U, JS-280ZL, JS-280L

Signal output:

Dry Contact, NO, NC, Com

Surface Temp:

 ≦20℃

Operating Temp:

-10℃ - 55℃

Suitable Humidity:

0-90% (non-condensing)

Finishing for lock and Armature

 Zinc

Weight:

4.0kg

Standard Packing:

10pcs

Cartons size:

35L * 30W * 16H (cm)



12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS 2

Features of Electric Magnetic Locks

  1. High-strength housing with aluminum anodizing finish.
  2. MOV surge protection.
  3. Dual voltages of 12V/24V.
  4. No residual magnetism.
  5. Very easy to operate: Instantly unlocked when power is off.
  6. No mechanical failure.
  7. Fail-safe, satisfy applicable fire regulations.

1200Lbs Double Door Magnetic Lock with LED  magnetic lock With Lock Sensor -JS-280DS



12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS 4



12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS 5

12V / 24V Door Security Electromagnetic Lock Weatherproof Maglock-JS-280DS 6
